CV MODE: 6 CONTROLS AND CLOCKS

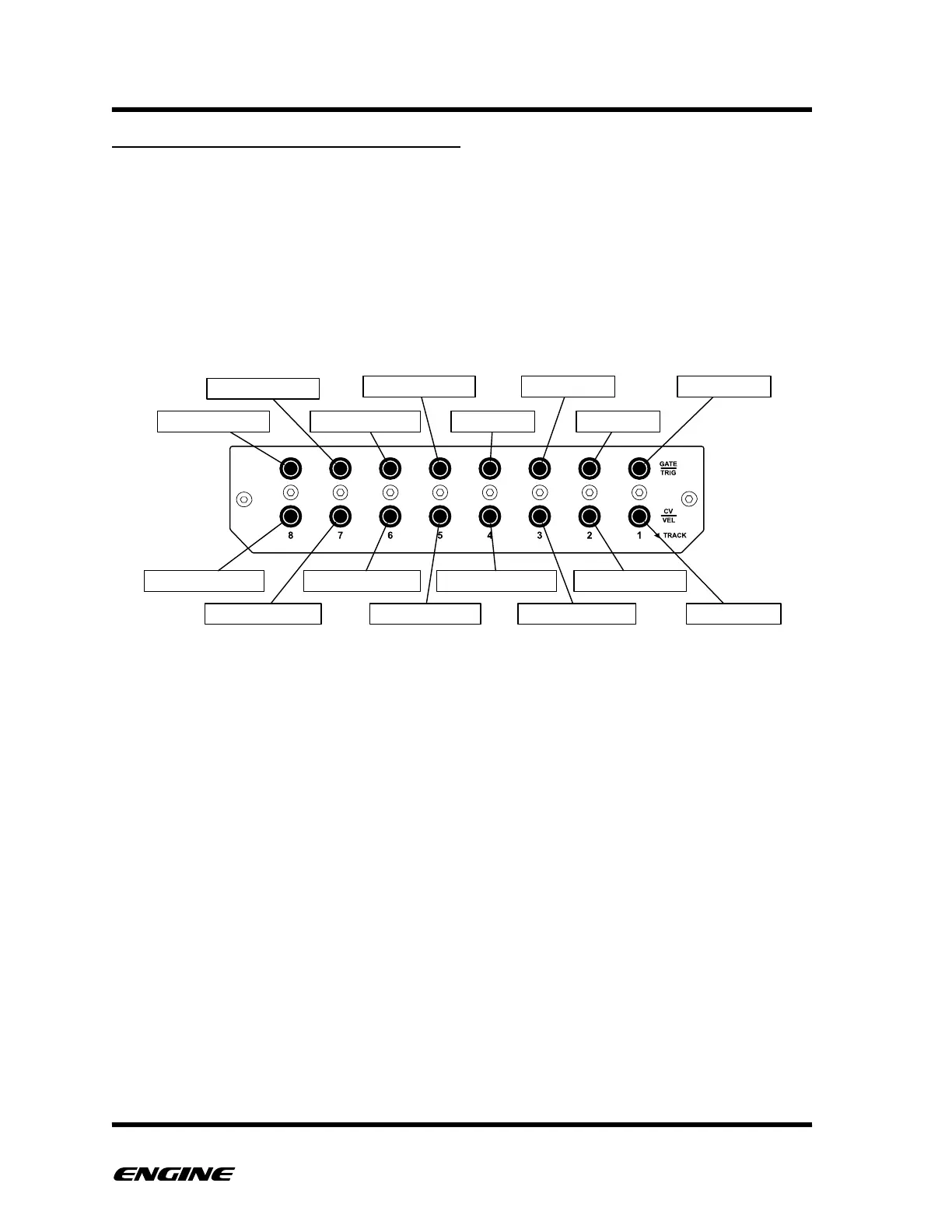

In “6 controls” mode, all of the output pairs are used to output either a CV voltage
controlled by the control knobs or various clock divisions for synchronizing other devices.
The first seven CV outputs will generate a voltage that corresponds to the controller knob
locations and the TEMPO knob location.
The eighth CV output generates a 5V pulse that is compatible with Volca sync signals.
The eight GATE outputs generate various clock signals.
