OnAir 3000 Digital Mixing Console
5-52 Operation
Document generated: 10.10.14
SW V6.0
5.3.5 Routing Pages
5.3.5.1 Input Page
The input routing page allows setting up the mixing console’s input router;
the general rule is that each input can be routed to any channel, but to exactly
one channel only. For a general description of the routing refer to chapter 5.8.
Note: Monitor routing is not part of this page; this is set in the configuration.

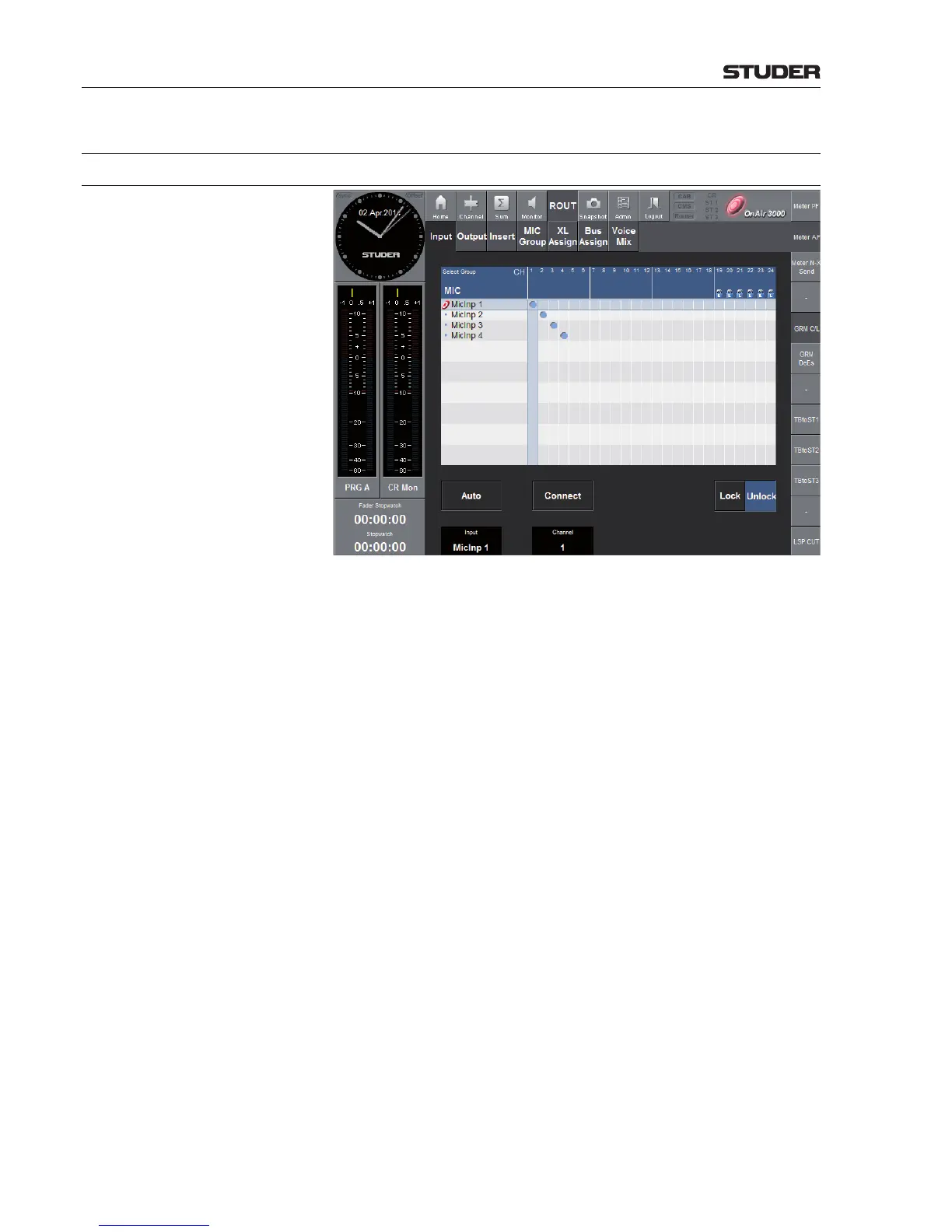

Matrix On the graphical representation of the routing matrix, the console channels are
displayed from left to right, and the inputs from top to bottom. Connections
are indicated by a blue bullet within the matrix as well as by a small blue
bullet at the left of the input label. The routing of a channel currently being
on-air cannot be changed; this status is indicated by a red ‘Frisbee’ symbol
at the left of the input’s label, and by blanking the Clear button. A connec-
tion may be permanently locked during configuration; this is indicated by a
padlock symbol below the channel number, and by blanking the Connect /
Clear buttons.
Select Group For clearness, the different inputs are arranged in groups. This button opens
a list of input groups to select from. The microphone input group is shown
above.
Input Display of the selected input (position of the horizontal cursor line). Input
selection is done with the rotary encoder below the field. If more inputs are
available than can be displayed by the screen, the matrix automatically scrolls
when the cursor line meets its upper or lower limit.
Channel Display of the selected console channel (position of the vertical cursor line).
Console channel selection is done with the rotary encoder below the field. If
more console channels are available than can be displayed on the screen, the
matrix automatically scrolls when the cursor line meets its left or right limit.
If a channel has no input assigned currently, its number above the matrix is
displayed in blue instead of in white.
Auto If this function is active, the correct page is displayed automatically upon
changing a channel, and the Input field above the rotary knob is blanked.
Connect / Clear Sets or clears a connection at the current cross point of the vertical (console
channel strip) and horizontal (input channel) cursor lines.
