OnAir Digital Mixing Consoles
6-22  Conguration
Document generated: 10.10.14
SW V6.0

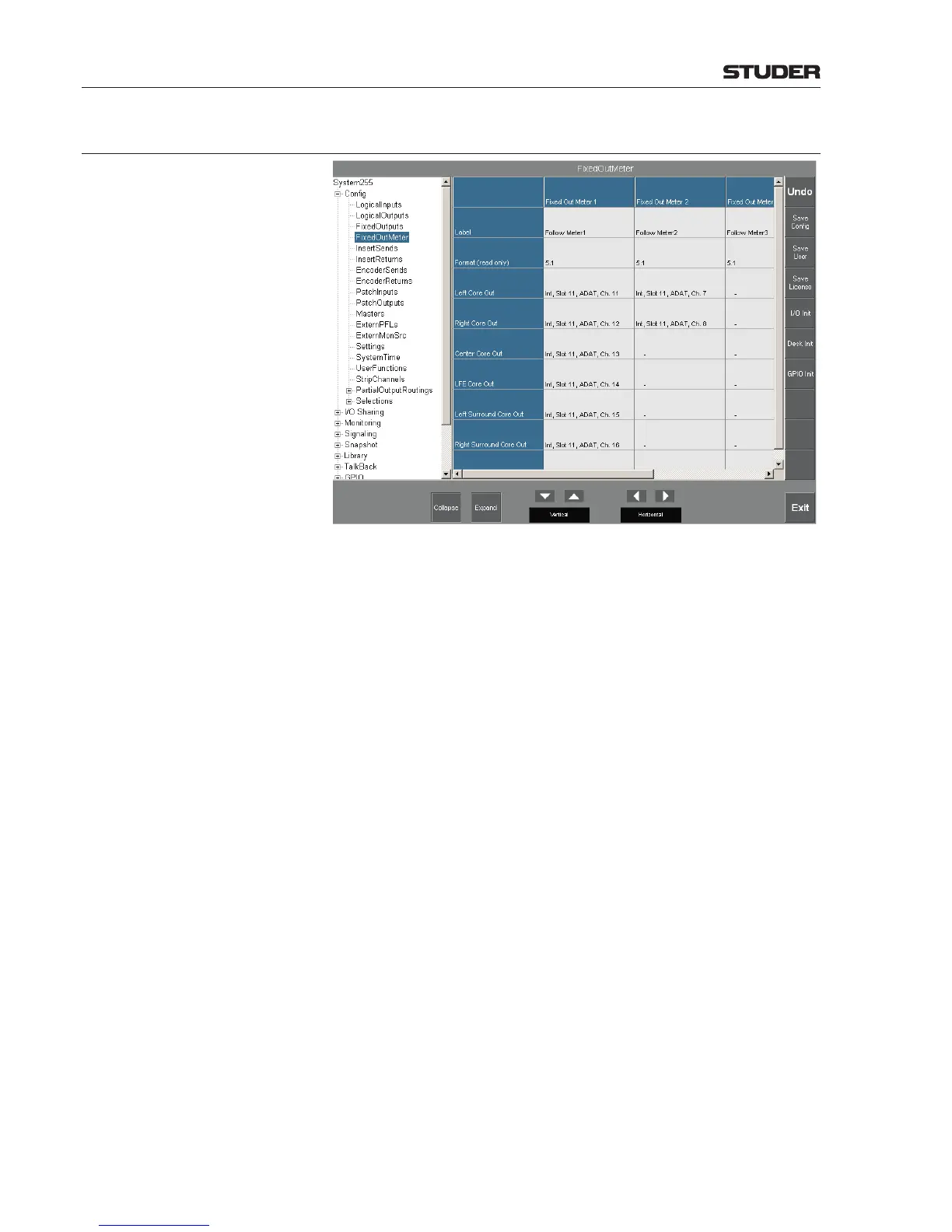

6.5.4 Fixed Out Meter
The two dedicated metering outputs automatically follow the main screen
meters. These outputs may be used to connect external level meters and are
defined here. The same applies as is said in chapter 6.5.2 above, except that
the Format parameter is read only. For systems with primary/secondary desk
configuration, up to four meter outputs can be configured (two per desk).
OnAir 1500/2500: OnAir 1500/2500 only support stereo metering outputs. These are configu-
rable but will not be used by the default configuration.
