Studer OnAir 3000 User Manual

OnAir Digital Mixing Consoles
Conguration 6-23
Document generated: 10.10.14
SW V6.0

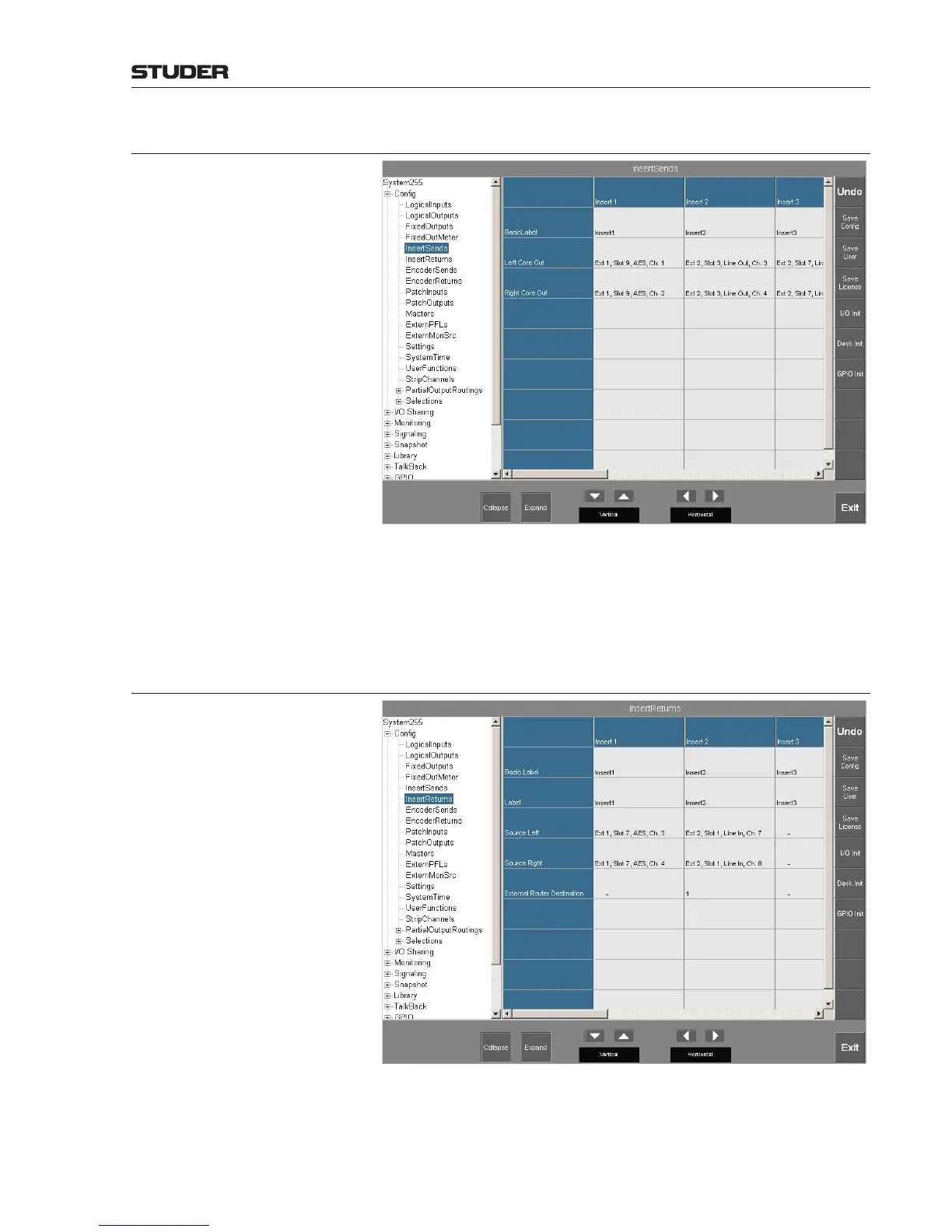

6.5.5 Insert Sends
For each of the eight inserts available in the digital domain, a send/return pair
may be configured. For the insert sends, the same applies as is said in chapter
6.5.2 above, except that no Format parameter is available here.
Please note that the insert returns are configured on the Insert Returns page
(refer to chapter 6.5.6).
6.5.6 Insert Returns
Basic Label / Label The labels are copied from the Insert Sends page (chapter 6.5.5) and cannot
be edited here. They are displayed in the output routing page.
Source Left / Source Right Source Left and Right define the physical audio inputs used to establish the
insert return.
