6.5.11 Masters

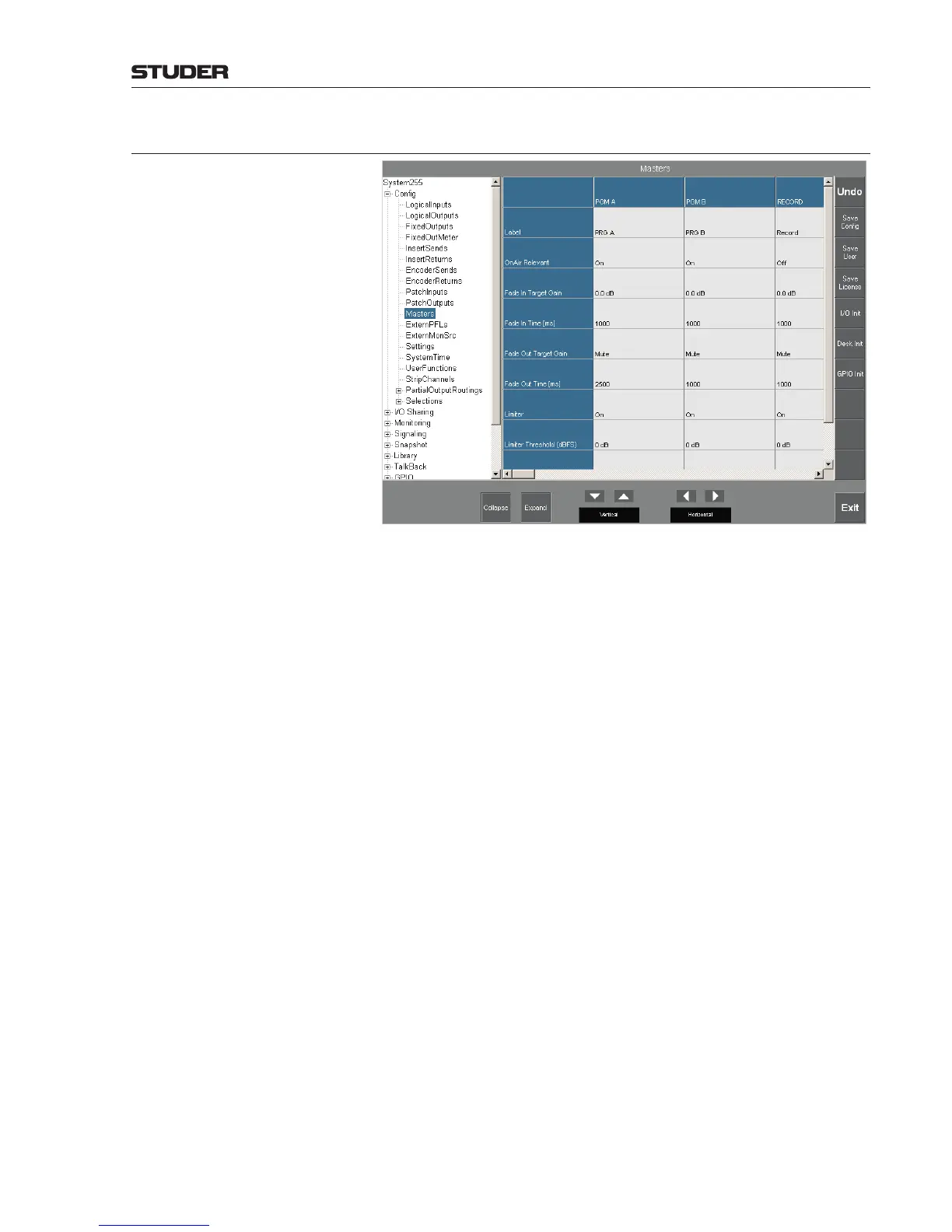

The parameters for the summing (master) outputs are set here. Not all param-
eters are available for all of the masters; the audition output, e.g., only has a
label.
Label This is the string displayed in the routing output page. The label may have
up to eight characters and is defined as described in chapter 6.5.1.
OnAir Relevant For each of the main master outputs, it is configured here whether it contrib-
utes to the On Air indication or not. The On Air indication is active only if at
least one channel is switched ON, has the its fader open and is assigned to an
active main master. Selections: On / Off.
Fade In/Out Target Gain, Fade In/Out Time [ms]
If the fader should be controlled by a GP Input, four parameters must be set
here: Fade In Target Gain and Fade Out Target Gain (the default settings
are 0.0 dB and Mute, resp.), and Fade In Time and Fade Out Time (can be
set between 0 and 20’000 ms, i.e. 20 s, in millisecond steps with the pop-up
keyboard; default settings for both Fade In Time and Fade Out Time are
1000 ms = 1 s). For details on GPIO settings refer to chapter 6.5.29.
(Output) Limiter Each of the tree main output buses features a transmission limiter that can be
configured here. Setting: On / Off.
(Outp.) Limiter Threshold (dB
FS
) The output limiter’s threshold can be set in a range of 0 to –48 dB
FS
in steps
of 1 dB.
Note: This indication is always referenced to full scale modulation (FS), regard-
less of the currently selected headroom – which means that, if a headroom of
9 dB is set and limiting to 0 dB on the PPM level meters is desired, a limiter
threshold of –9 dB
FS
must be selected.
(Output) Limiter Release Time The output limiter’s release time can be set in 13 steps in a range of 1 ms
(millisecond) to 1 s.
Joker Function Name Basically, all corresponding keys in the fader strip have the same function
throughout the whole console. For this reason, one exception from this rule
may be configured that will then be source- or master-related, i.e., linked to a
particular source or master, and that will also be considered once this master
should be re-routed to a different channel strip. This function key is called
To Next Page
