These snapshots can be recalled by any user when holding down the ENABLE
key, then pressing one of the SK1 to SK6 keys; they may, of course, also be
recalled from the main screen’s Snapshot page, as usual. For OnAir 2500
consoles the LocationFilter parameter must always be set to Off.
OnAir 3000 The same applies as mentioned above for OnAir 2500 consoles; however, the
snapshot recall keys are not defined by default. Definition of any desk key as
a snapshot key is possible via the corresponding XML file; up to 80 snapshot
keys are possible if this should be required.
Split desk configurations usually have individual snapshots and snapshot keys
for every desk, so the LocationFilter parameter must be set accordingly.
The four entry fields (Save Audio, Save  Input Routing, Save  Output 
Routing, and Save Desk Assignment fulfill the same parameter selection
functions as the corresponding Audio, Route IN, Route OUT and Assign
buttons on the main screen’s SNAP - Shot page.
Global Snapshot Recall via GPI Global snapshots may also be recalled via GPI control inputs. For more
information on GPIO configuration refer to chapter 6.5.29.
Last Snapshot Indication via GPO The last recalled global snapshot may also be communicated via GPO; GPO
configuration is identical with the GPI configuration given above, except that
the Function Type must be LastSnapshot, and there exists no Action item.
6.5.37.8 Master Section
(OnAir 3000 and OnAir 2500)

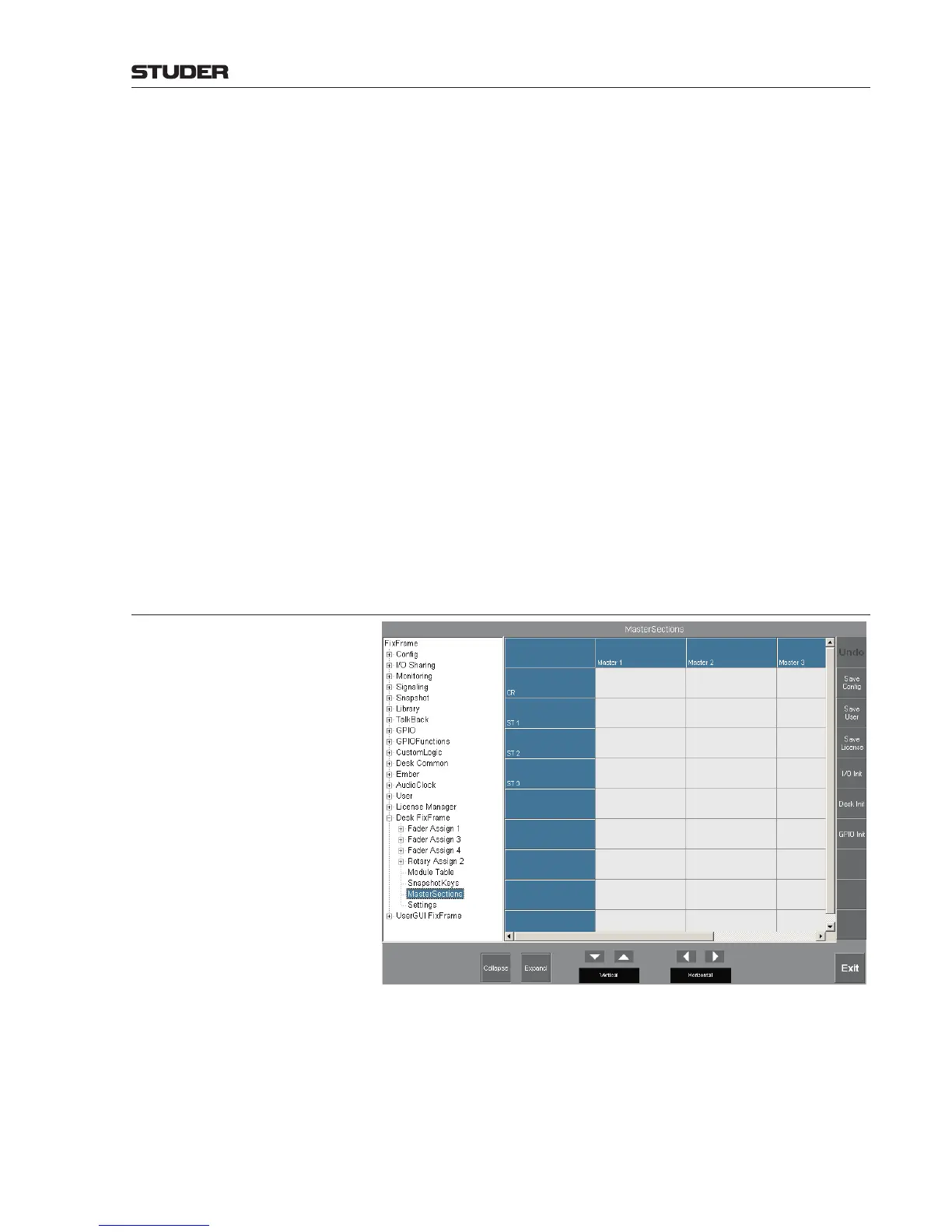

This page will only be used if an OnAir 1500 desk module is used together
with an OnAir 3000 or OnAir2500 console, for example in the studio or in a
split desk application. The 1...4 keys in the desk module’s MASTER SECTION
area may then be used to select busses. The assignment of busses to the four
keys is done here.
Note If an OnAir 1500 desk is used with its Nano SCore, the assignment of these
four keys is fixed and cannot be reconfigured.
