OnAir Digital Mixing Consoles
6-68  Conguration
Document generated: 10.10.14
SW V6.0

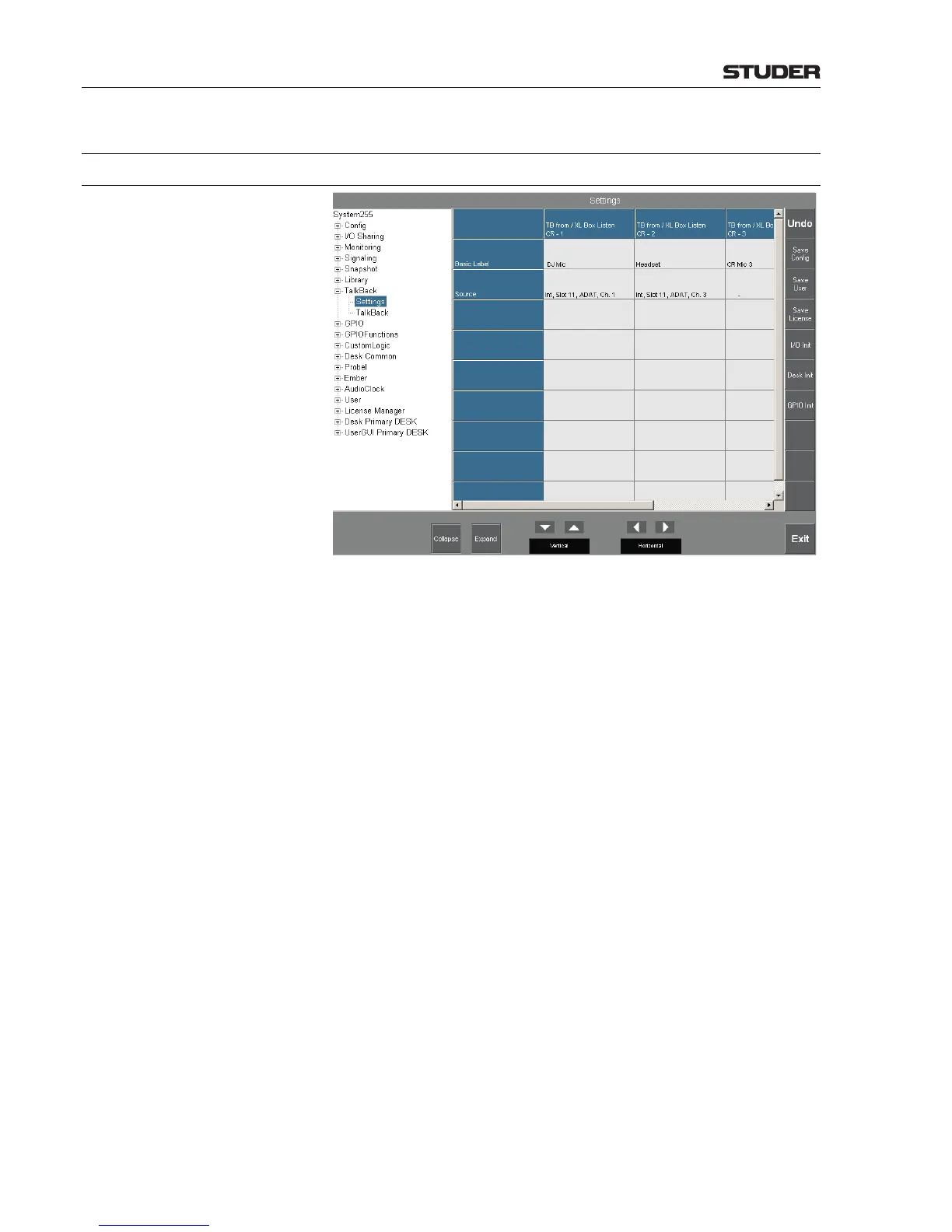

6.5.28 TalkBack
6.5.28.1 Settings
In contrast to the studios, the control room features only one dedicated input
for talkback to the studios. If this should not be sufficient, up to four physical
inputs may be defined for use as alternate talkback sources to the studios,
such as the DJ mic, a Headset mic, etc. Only one of these four may be active
at a time.
Basic Label The basic label may be entered here as described in chapter 6.5.1.
Source Defines the physical audio input that is used to establish the mono channel
for the logical input.
Indication: Frame (Int = internal I/O cards in SCore frame; Ext # = additional,
external D21m frames), Slot #, Card type, and Input # (e.g. Int, Slot 11, 
ADAT, Ch. 1), or ‘-’ (if no physical input is assigned to the logical input).
Note: In order to select these physical talkback microphone inputs in the control
room talkback sources, one desk key must be configured for each of them (in
the Desk_KeyMapping.xml file).
