OnAir Digital Mixing Consoles
Conguration  6-89
Document generated: 10.10.14
SW V6.0
The setting of switch 2 is defined as follows:
Source SWITCH 2
If the source of the local system is not available
(container missing or not ready yet, missing tree parameter, etc.)
Low
If the source is from a remote system currently not available Replacement value
Otherwise Source

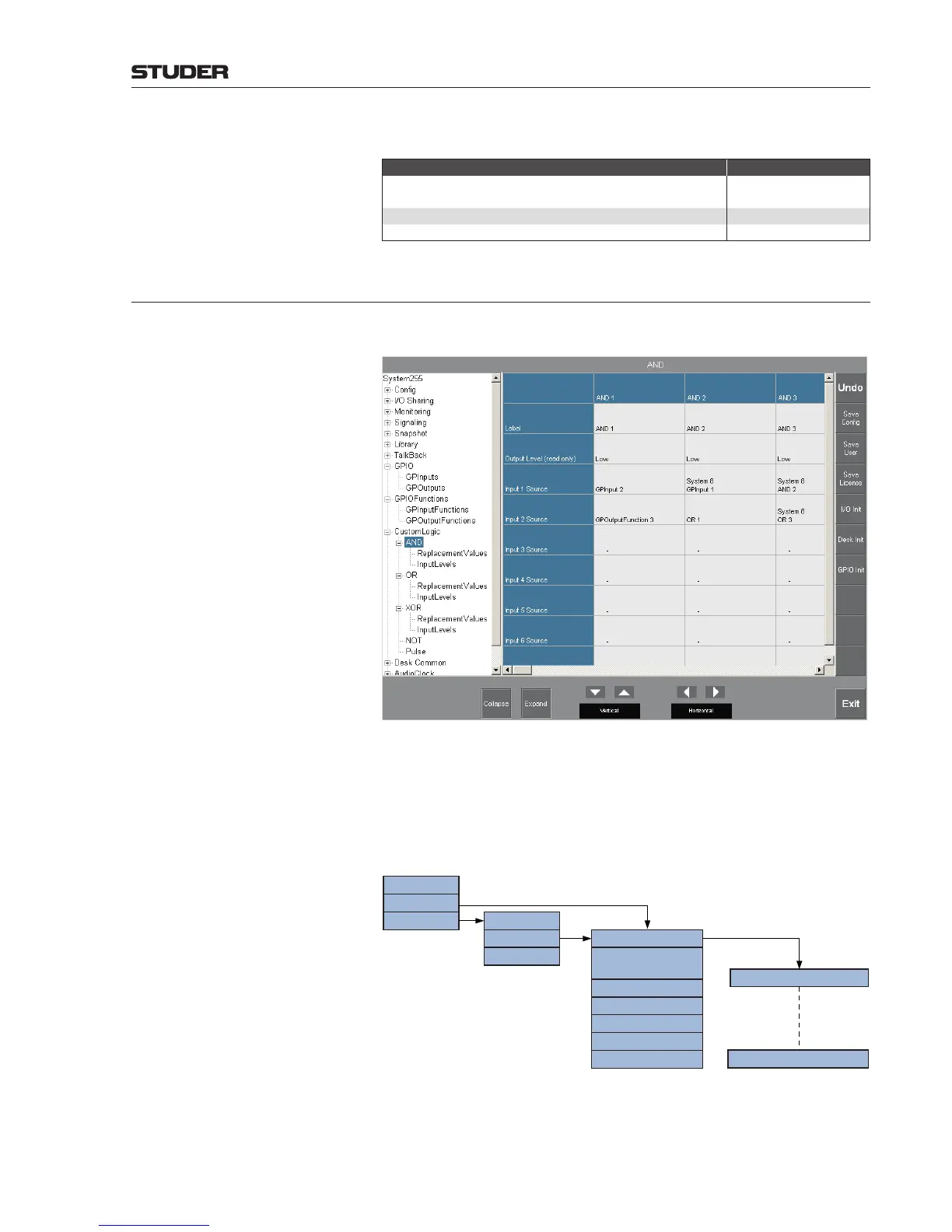

6.5.29.3.4 Custom Logic Configuration
A ‘Custom Logic’ submenu has been added to the configuration menu tree.
It contains a subpage for each of the four gate types described above.
Defining a Source Defining a ‘Level Producer’ as a source for a consumer (Gate input, GPOut-
put or GPInput function) is the same for producers of both local and remote
systems. The Source selection procedure is similar to the one for I/O Sharing
audio NetConsumers. It consists of several levels.
When remote systems are available in the network, the source selection menu
offers a remote systems selection field (–/Local Source/Net Source), other-
wise only local sources are selectable (–/Local Source).
Local Source
Net Source System 1
FixFrame
Modulo
GPInputs
GPOutput Functions
(such as ‘Generator’)
ANDs
ORs
XORs
NOTs
GPIn1: FaderStartCD1
Pulse Gates
GPIn32: not used
-
To Next Page
