OnAir Digital Mixing Consoles
Conguration  6-55
Document generated: 10.10.14
SW V6.0
6.5.23.2 Configuration
Configuration details of the I/O sharing option see chapter 6.5.22.

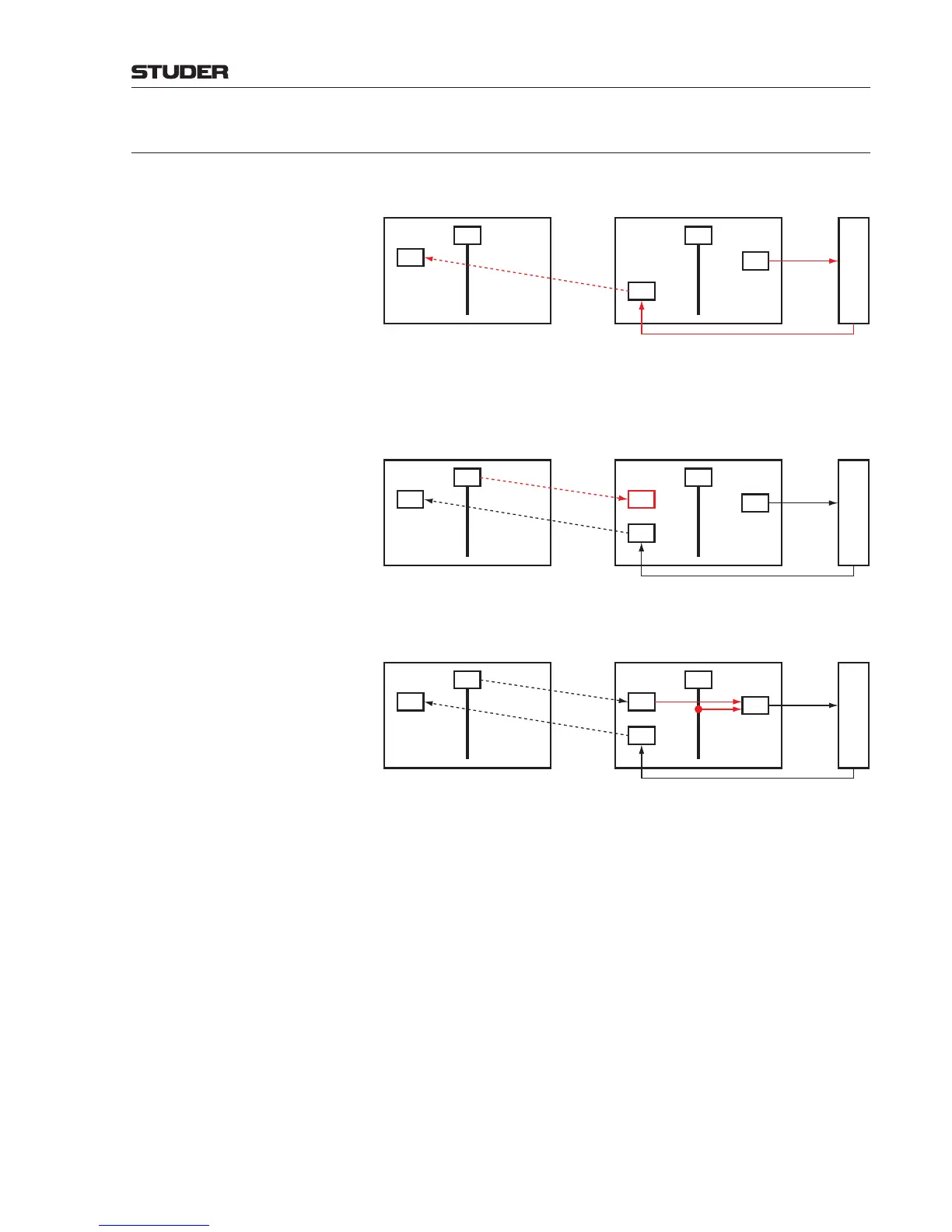

Step 1:
Codec
N–X
NetLI
N–X
LI
PO
The codec’s input must be mapped to a patch output (PO). The codec’s output
must be mapped to a logical input (LI) that is an N–X bus owner.
In case of I/O sharing, i.e. when another system shares the codec, a net logical
input is required that is an N–X bus owner as well.
Step 2:
Codec
N–X
NetLI
N–X
LI
PO
NetPI
On the producer system A a net patch input (NetPI) must be created, consum-
ing the N–X bus associated with the net logical input (NetLI) of system B.
Step 3:
Codec
N–X
NetLI
N–X
LI
PO
NetPI
Finally, for both the logical (LI) and the net logical (NetLI) inputs, the source
for the patch output (PO) must be specified. This is done in the Configuration
Tool on the Config - LogicalInputs page. The related parameters are:
Codec Return Output Specifies the patch output (PO) to which the codec’s input is connected.
  • Incaseofalogicalinput(LI,netsourceis0),theConfigurationTool
provides a list of all logical and patch outputs of system A.
  • Incaseofanetlogicalinput(NetLI,netsourceisdifferentfrom0),the
Configuration Tool provides a list of all logical and patch outputs of that
net source.
Codec Return Source Specifies the source that is connected to the patch output (PO) when the (net)
logical input is assigned to a fader.
  • Incaseofalogicalinput(LI,netsourceis0),theConfigurationTool
provides a list of all N–X buses of system A.
  • Incaseofanetlogicalinput(NetLI,netsourceisdifferentfrom0),the
Configuration Tool provides a list of all net patch inputs on system A of
that net source that consume an N–X send from system B.
