Studer OnAir 3000 - Ducking Key Inputs (Option, Onair 3000 Only); Meter S(Ou)Rc(E)

OnAir Digital Mixing Consoles
Conguration 6-43
Document generated: 10.10.14
SW V6.0

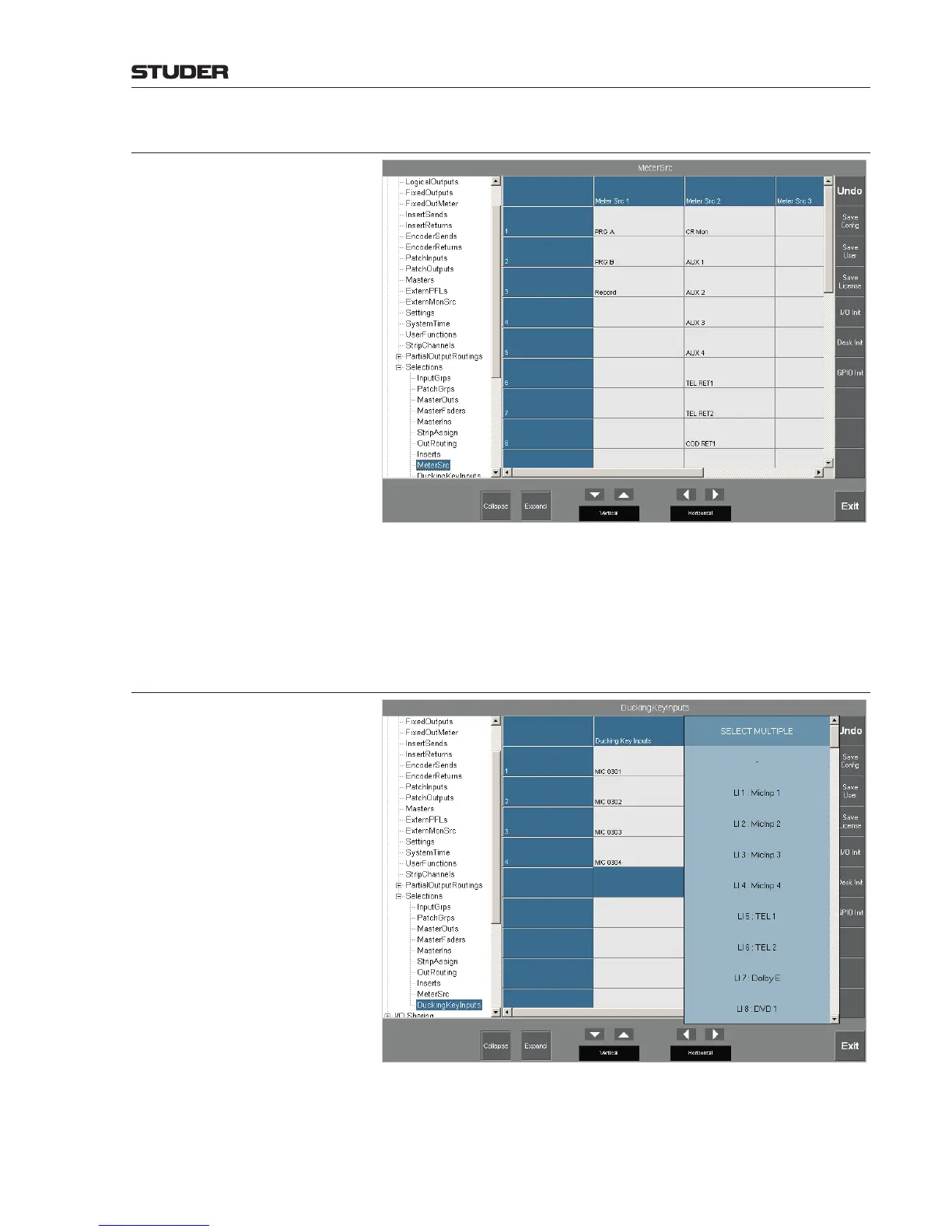

6.5.20.9 Meter S(ou)rc(e)
For both level meters on the main screen (Meter Src 1 and Meter Src 2),
as well as for two optional, external meters, a list of inputs may be defined
for selection with the label button located below the corresponding meter on
the main screen. Selection is done as described in chapter 6.5.20.1.
OnAir 1500/2500: Meter Src 1 and Meter Src 2 supported only.
6.5.20.10 Ducking Key Inputs
(Option, OnAir 3000 only)
This page allows selecting the keying signals for the automatic ducker. Selec-
tion is done as described in chapter 6.5.20.1.
