OnAir Digital Mixing Consoles
6-24  Conguration
Document generated: 10.10.14
SW V6.0
After touching the Source... field, a list appears for selection of the SCore,
external D21m, or stagebox frame, or ‘-’. Then a list for selection of the
desired physical input is displayed. It can be scrolled up and down with the
navigation buttons at its upper and lower margins, or with the rightmost rotary
encoder.
Indication: Frame (Int = internal I/O cards in SCore frame; Ext # = additional,
external D21m frame; Stagebox # = D21m frame in stagebox), Slot #, Card
type, and Input # (e.g. Ext 1, Slot 7, AES, Ch. 3), or ‘-’ (if no physical input
is assigned to the logical input).
External Router Destination With SW V2.1 and later, this parameter is used to assign a destination ID of
an external router output to the insert return; this is used for importing and
displaying labels from the external router control system as well as for con-
trolling the router.
Selection: - (none) or 0-65535. The default assignment is 1:1, i.e. logical
input 1 corresponds to destination ID 1.
In addition, a Facility ID must be entered in the UserGUI - Settings con-
figuration page (refer to chapter 6.5.38.1), together with the corresponding
settings in the ProBel.xml and probel_contr_ext.ini files.

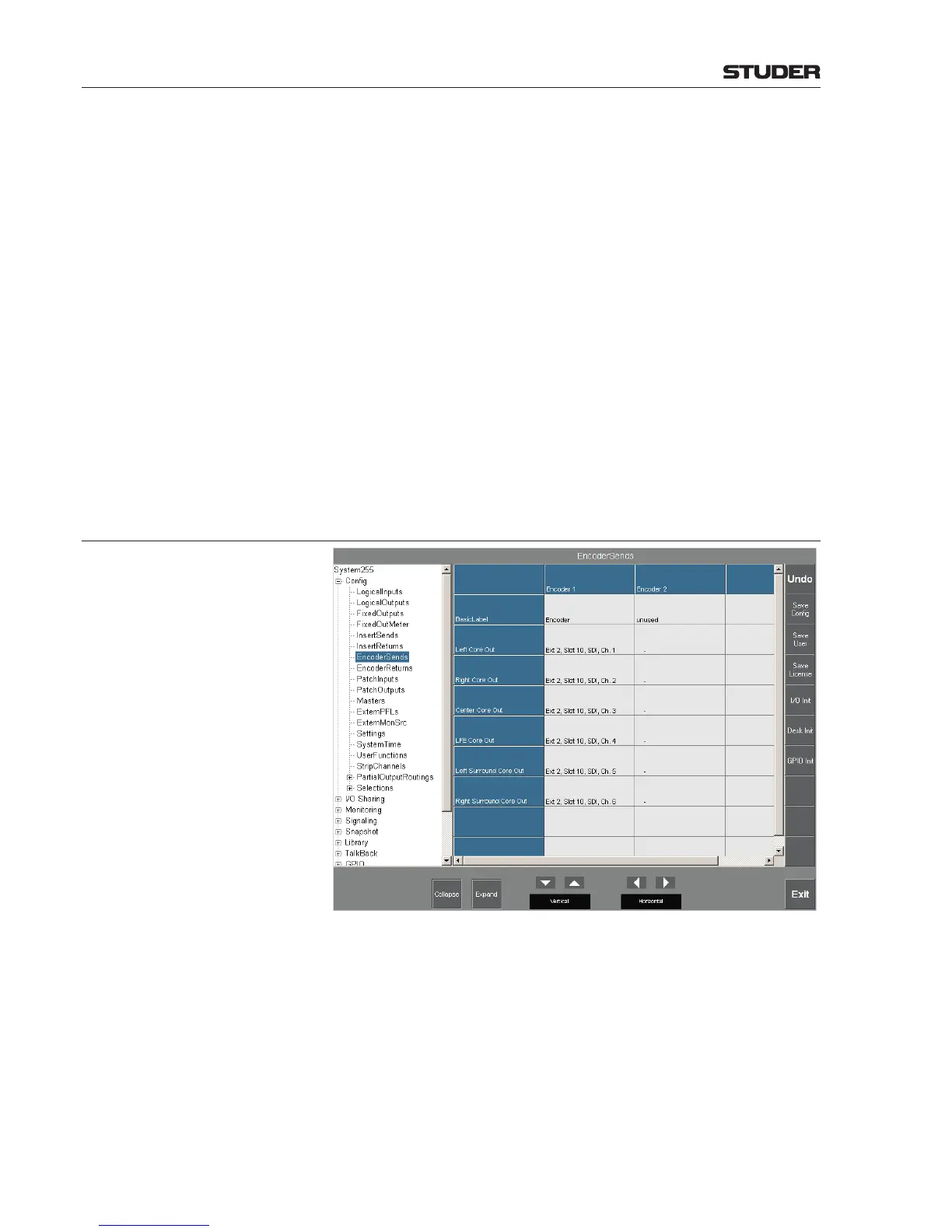

6.5.7 Encoder Sends (OnAir 3000 only)
On this page the outputs to an external surround decoder are defined. Proceed
according to chapter 6.5.2.
