 SP SRC (Source) Selector CR / ST1
The list of sources for the PFL/TB speaker (SP) that can be selected with the
SELECT rotary encoder on the CR (control room) and ST1 (studio 1) moni-
toring/talkback modules is defined here (for details see chapters 5.3.1 and
5.3.2). Selection is done as described in chapter 6.5.20.1.
All router inputs and outputs may be selected here for monitoring purposes.
OnAir 1500/2500: Studio 1 not supported.
6.5.25 Signaling
6.5.25.1 Settings

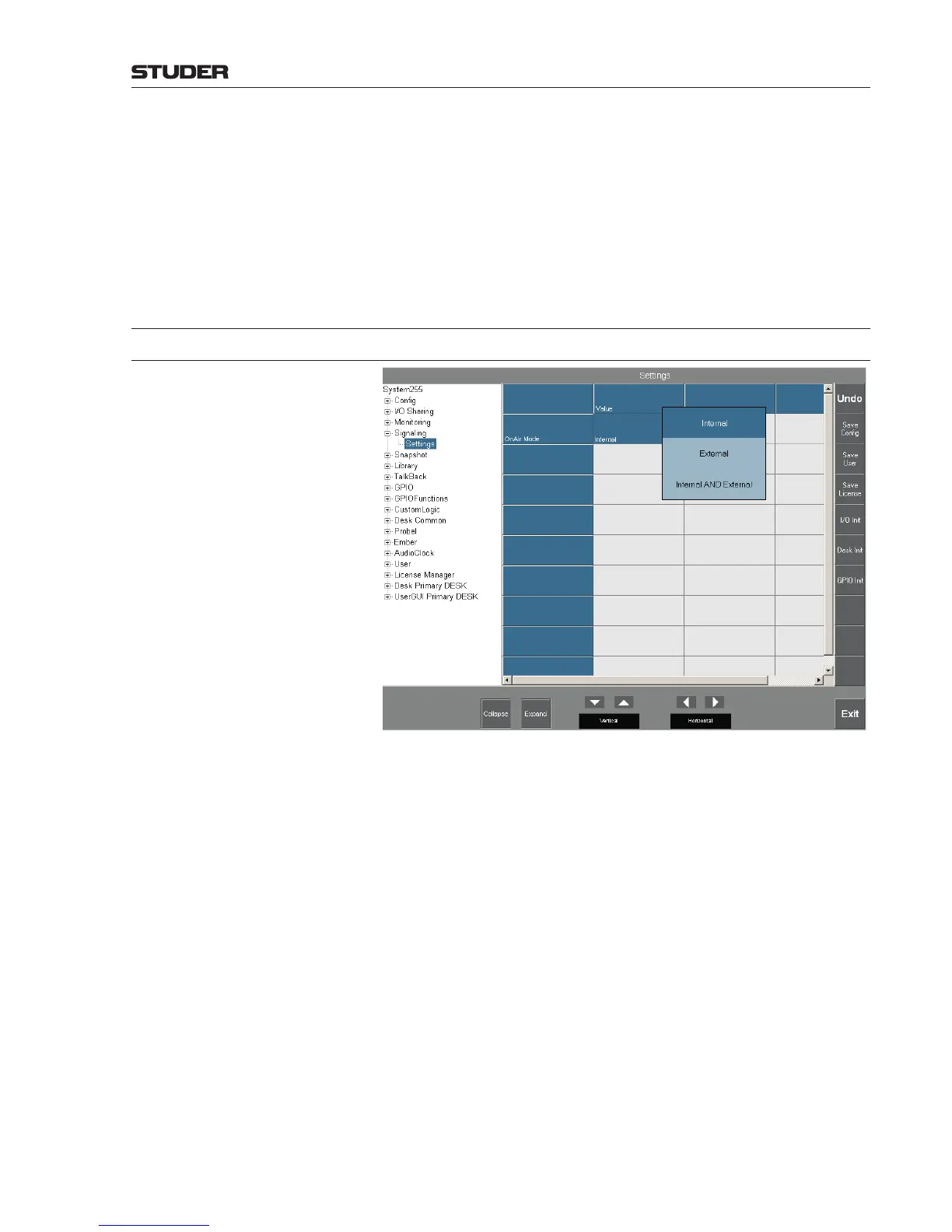

OnAir Mode Selects the condition for switching the ON AIR light on: Internal (i.e., when
at least one channel fader is open, this channel is ON, assigned to a master
output, this master is defined to be OnAir Relevant - see chapter 6.5.11 - and
the master fader is open), External (i.e., when an external on-air input on
the GPI interface is active), or Internal AND External (i.e., a logical AND
operation of both conditions).
