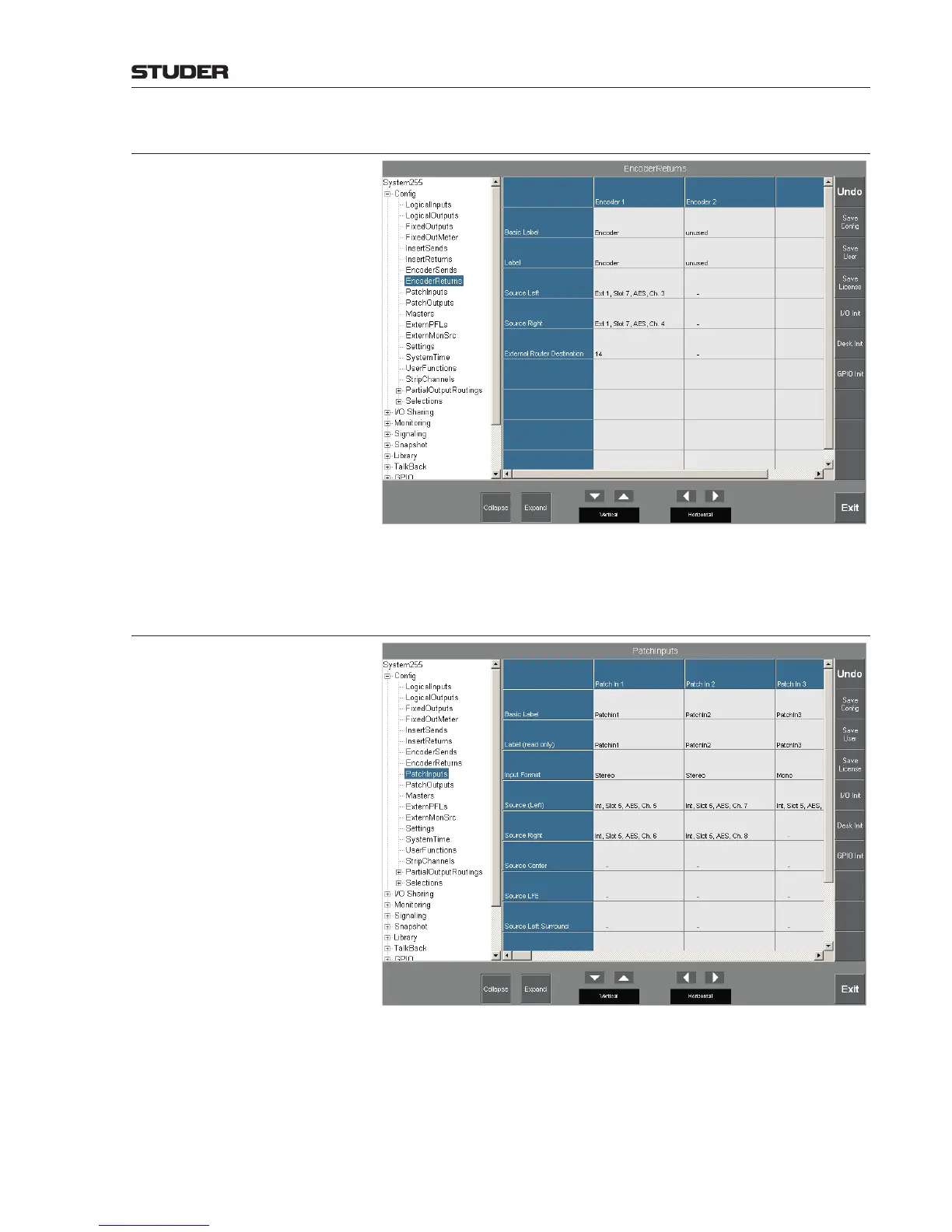

6.5.8 Encoder Returns (OnAir 3000 only)
On this page the inputs from an external surround decoder are defined. Pro-
ceed according to chapter 6.5.6.
6.5.9 Patch Inputs (OnAir 3000 only)
Basic Label / Label (read only) This are the strings displayed in the output routing page. They may have up
to eight characters and are defined as described in chapter 6.5.1.
Input Format Defines the audio format of the logical input. Selections: Stereo, Mono, or
5.1. The format selected here will be automatically assigned to the console
channel to which this logical input is routed.
OnAir 3000: 5.1-channel support optional.
