OnAir Digital Mixing Consoles
6-100  Conguration
Document generated: 10.10.14
SW V6.0

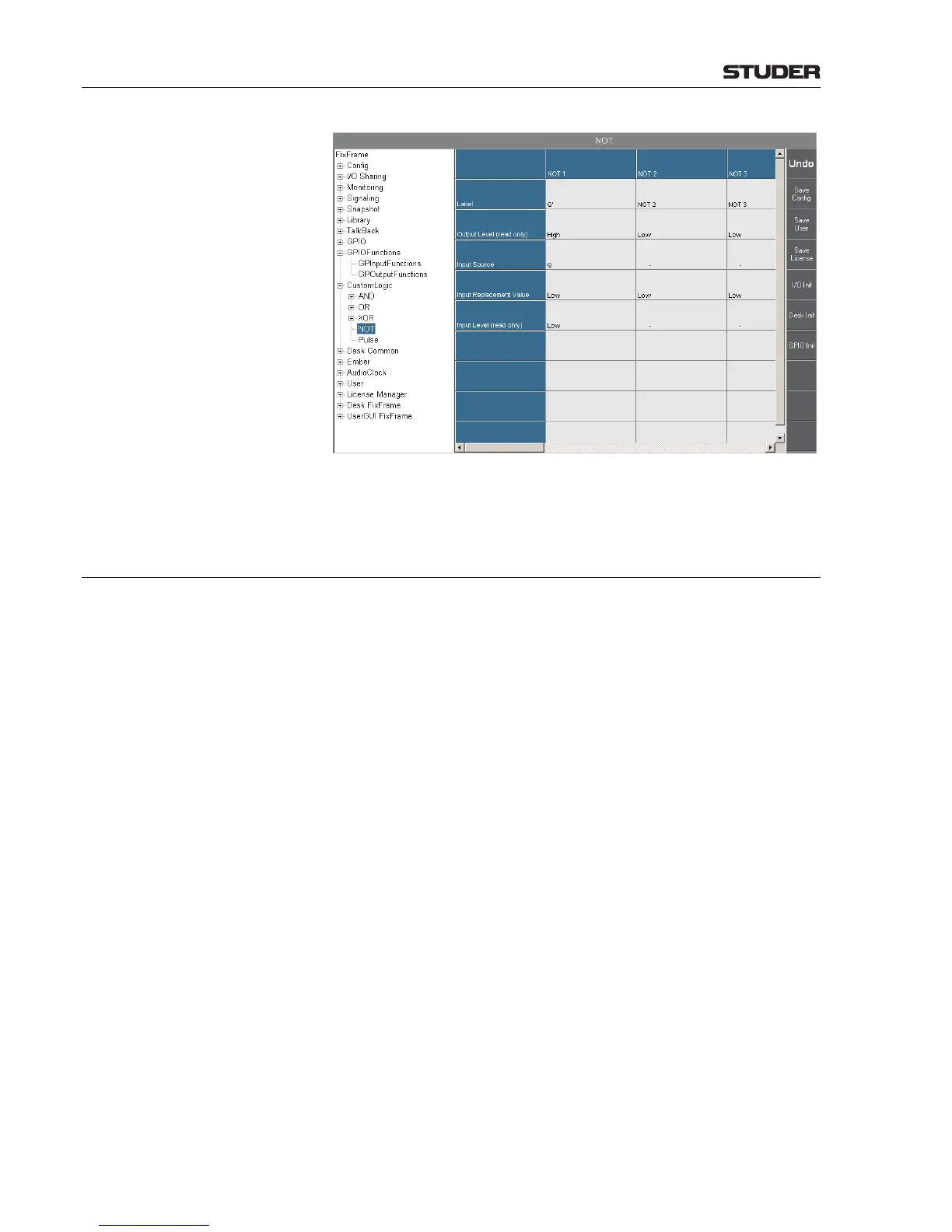

If the test was successful and you want to keep this functionality, remember
to save the console configuration.
6.5.29.3.6 Error Handling
GPIO If the number of installed GPIO cards doesn’t match the number of GPInputs
specified in the D21m.xml file, the following user message appears in a
modal dialog during power-up:
User Warning 3035: I/O 21, Missing GPIO Card(s). 32
GPInputs configured, 16 GPIOs found.
If the number of installed GPIO cards doesn’t match the number of GPOut-
puts specified in the D21m.xml file, the following user message appears in
a modal dialog during power-up:
User Warning 3036: I/O 21, Missing GPIO Card(s). 32
GPOutputs configured, 16 GPIOs found.
Custom Logic If the DNet connection to a remote system from which at least one one of its
‘Level Producers’ is consumed by a Custom Logic, GPOutput or GPInput
function, the following user warning appears in a modal dialog:
User Warning 8800: CUSTOM LOGIC, Connection to CORE
‘System71’ lost. Remote GPIO and Custom Logic from
that CORE are not available.
In order to keep the system stable and with good performance, the Custom
Logic configuration is validated during configuration of the sources of
Custom Logic gates. The system keeps track of each connection between
gates and creates one of the user warnings described below. Custom logic will
automatically clear the source. This makes sure that no erroneous configu-
ration can be saved in the console configuration (initial snapshot.
cfg).
If a Source is configured that exceeds the limit of maximum 10 cascades, the
following user warning is displayed:
User Warning 8805: CUSTOM LOGICS, More than 10 gates
cascaded at Gate ‘AND 11’! Source cleared.
