OnAir Digital Mixing Consoles
6-140  Conguration
Document generated: 10.10.14
SW V6.0

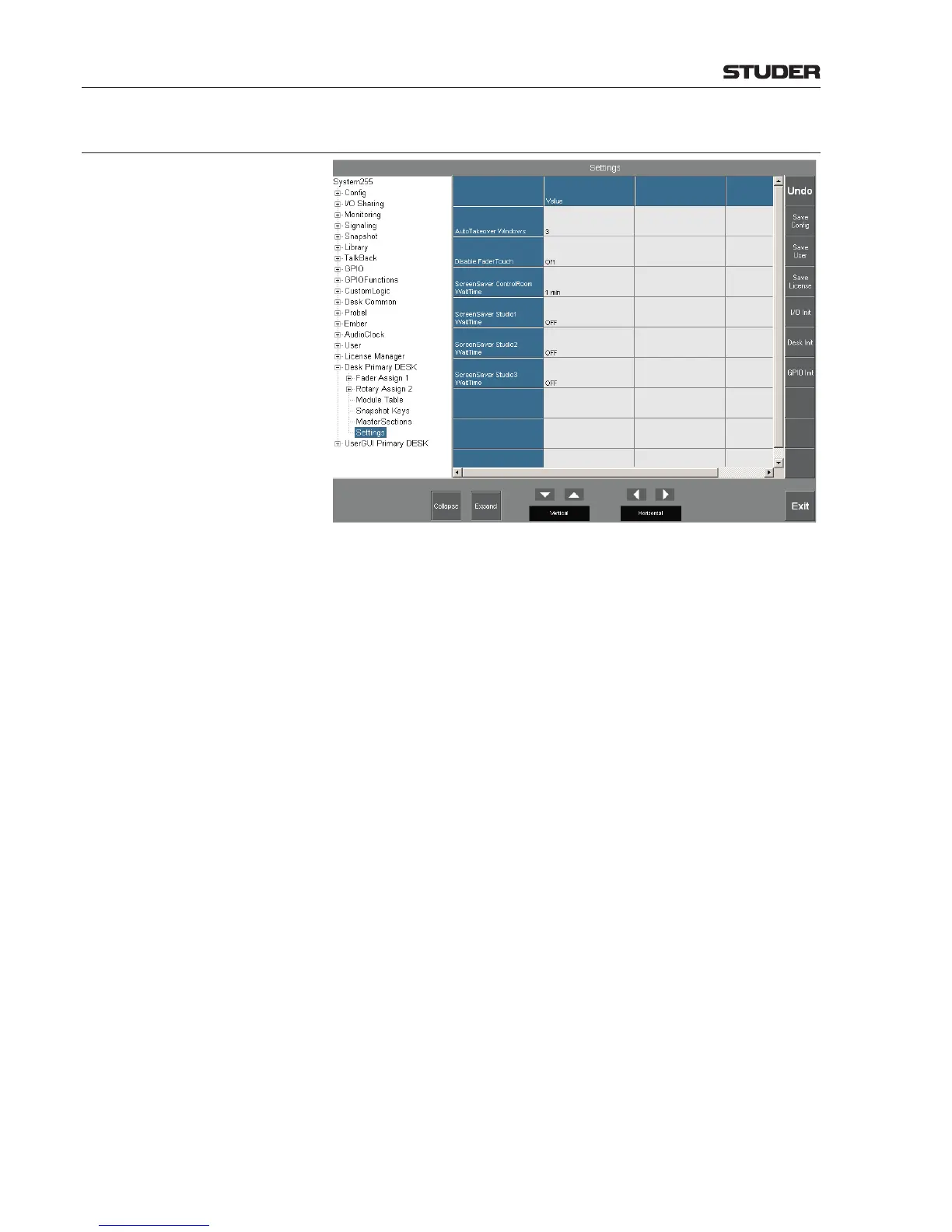

6.5.37.9 Settings
This page is used to set some parameters that are applied to the whole desk.
AutoTakeoverWindows The size of the AutoTakeoverWindows is set here (1-5); for normal opera-
tion, the default setting of 3 is recommended.
Disable FaderTouch In case of problems with the fader touch sensor it can be deactivated here
by setting Disable FaderTouch to On. This is also the default setting if no
(optional) motor fader modules are installed.
ScreenSaver ... WaitTime These four parameters were introduced with V3.1 in order to increase the
life time of the LED and OLED displays in the fader, fader assign, rotary
assign, monitoring/talkback and XL modules. The displays are automatically
dimmed after a selectable time (1-120 min), individually per location. The
original display brightness setting (adjustable with the Display rotary knob
on the Admin - Brightness page) is independent from this ScreenSaver,
and it will automatically be restored as soon as one of the touch-sensitive
desk controls or a screen button is touched, or a key or a fader is operated.
Note: The desk LEDs, the desk key illumination and the screen backlight are not
affected by the ‘screen saver’ feature.
