Studer OnAir 3000 User Manual

OnAir 3000 Digital Mixing Console
4-4 Operating Elements
Document generated: 10.10.14
SW V6.0
4.2 Desk Surface
The desk surface may consist of some of or all the following elements:
  • 3-or6-fadermoduleswithLCDisplay
  • 6-fadermoduleswithOLEDDisplay,withoptionalmotorfaders(V3.0
and up)
  • Faderassignmodule
  • Channelscreenmodule
  • Rotarymodule
  • Rotaryassignmodule
  • Differentmonitoring/talkbackmodules,producerbox,5.1surroundmoni-
toring module
  • XLmodule
  • Mainscreenmodule.

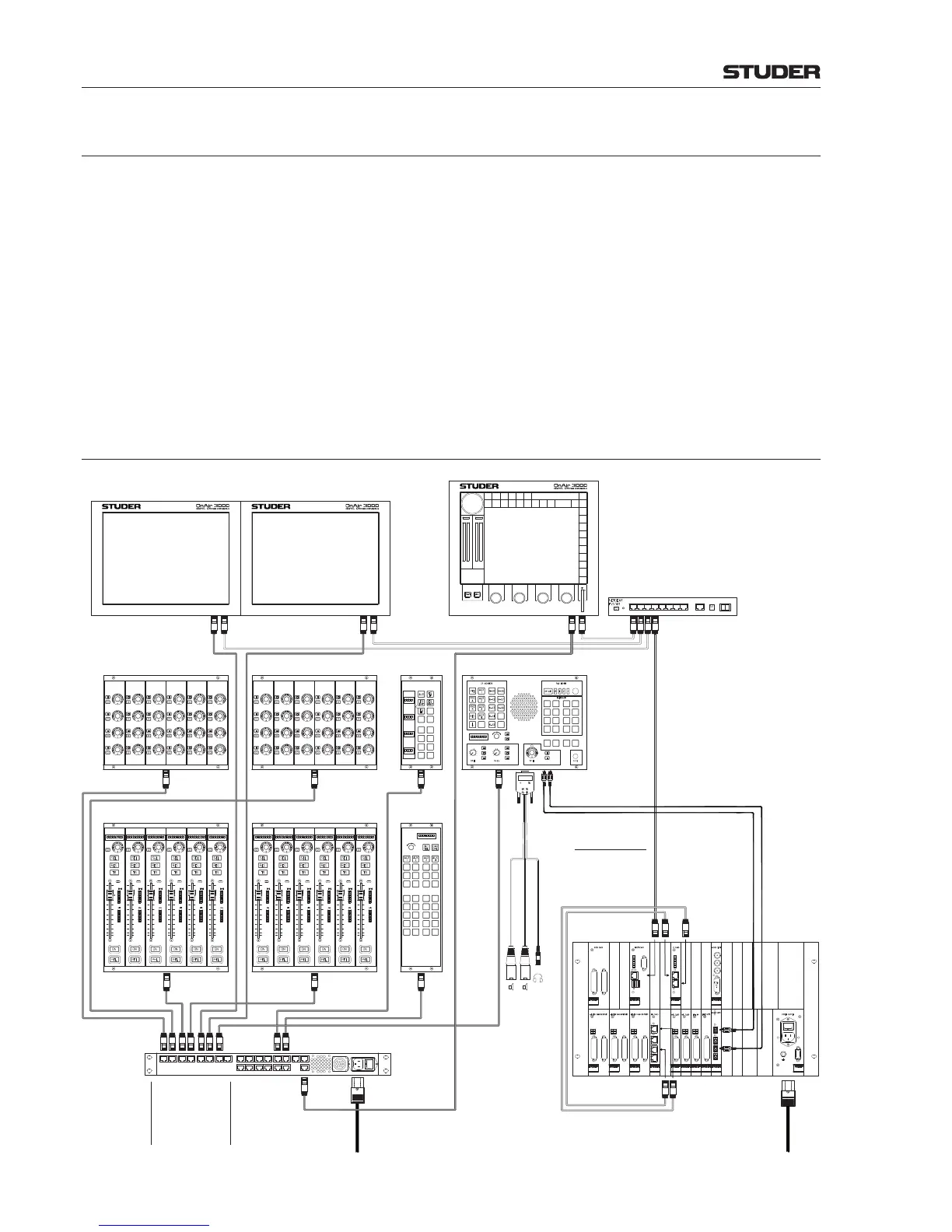

4.2.1 System Wiring OnAir 3000 Modulo
Patch Cords CAT-5, RJ45:
0.6 m, gray: 54.20.1008
1.0 m, gray: 54.20.1018
2.0 m, gray: 54.20.1028
3.0 m, red: 54.20.1032
3.0 m, blue: 54.20.1036
3.0 m, gray: 54.20.1038
Guest
R
L
0.3 m 0.3 m 0.3 m
Port 0: Rotary Ch 1...6
Por 1: Rotary Ch 7...12
Port 2: Fader Ch 1...6
Port 3: Fader Ch 7...12
Port 4: Ch Screen 1...6
Port 5: Ch Screen 7...12
Port 6: Monitoring
Port 7: not used
Port 8: Rotary Ch 13...18
Port 9: Rotary Ch 19...24
Port 10: Fader Ch 13...18
Port 11: Fader Ch 19...24
Port 12: Rotary Assign
Port 13: Fader Assign
Port 14: Ch Screen 13...18
Port 15: Ch Screen 19...24
Port 16...23: not used
Port 24...31: not used
Port 32...39: not used
Port 40...47: not used
Port 48...55: not used
Port 56...63: not used
Host Port: Main Screen
Channel Screen Module
Rotary Module
Supply Ethernet Supply Ethernet
RS422
+ Supply
RS422
+ Supply
RS422
+ Supply
RS422
+ Supply
RS422
+ Supply
RS422
+ Supply
RS422
+ Supply
RS422
+ Supply
2 x ADAT
(optical)
Analog
Ethernet Ethernet
Rotary Module
Rotary Assign
Module
Fader Module Fader Module
Fader Assign
Module
Distribution Box
Compact
SCore
Frame
Monitoring/TB Module
Channel Screen Module
Main Screen Module
Mains: Distr. Box
Mains: Compact SCore
