OnAir 3000 Digital Mixing Console
5-68 Operation
Document generated: 10.10.14
SW V6.0
FDR Start Trigger Point It is recommended to perform this calibration for all faders at a time.
First, move all faders not to be calibrated to their –20 dB position (this posi-
tion is ignored during calibration).
Center the fader knobs to be calibrated between the –∞ and the –60 markers.
This will be the point where the fader start output is triggered after calibration.
Touch the FDR Start button. To check, close the faders that just have been
calibrated; the corresponding fader bars on the screen should disappear.
If a next fader module is to be calibrated, touch the Fader Cal menu button
again and select the desired fader module.

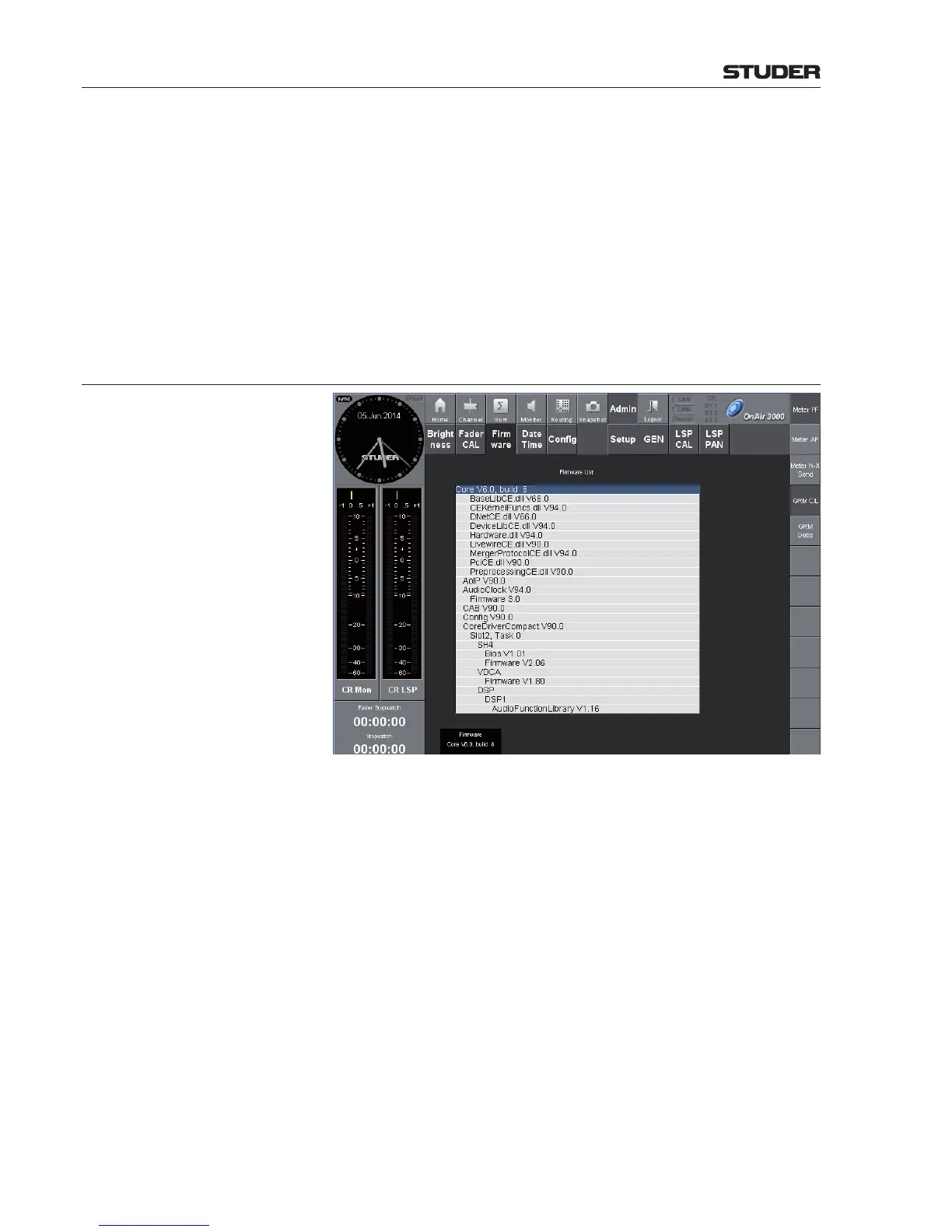

5.3.7.3 Firmware Page
On this page, the version number of all software modules of the console is
displayed for reference. A module is selected using the rotary encoder just
below the Firmware field.
Note: A complete set of firmware for all console modules is saved in the main screen
module’s memory. After having replaced a module by one that has been e.g.
in the spare parts stock for some time, its firmware might not be up-to-date
with the ones of the other console modules. Therefore it is recommended to
check whether the firmware versions correspond. If not, the current version
may be downloaded from the main screen module to the module using the
Update Firmware function.
Update Firmware Select a module as described above; should its firmware be outdated, the
Update Firmware button appears at the right of the list. The module’s
firmware will be updated when touching the Update Firmware button.
To Next Page
