Studer OnAir 3000 User Manual

OnAir Digital Mixing Consoles
6-44 Conguration
Document generated: 10.10.14
SW V6.0
6.5.21 Core Driver (OnAir 3000 with SCoreLive only)

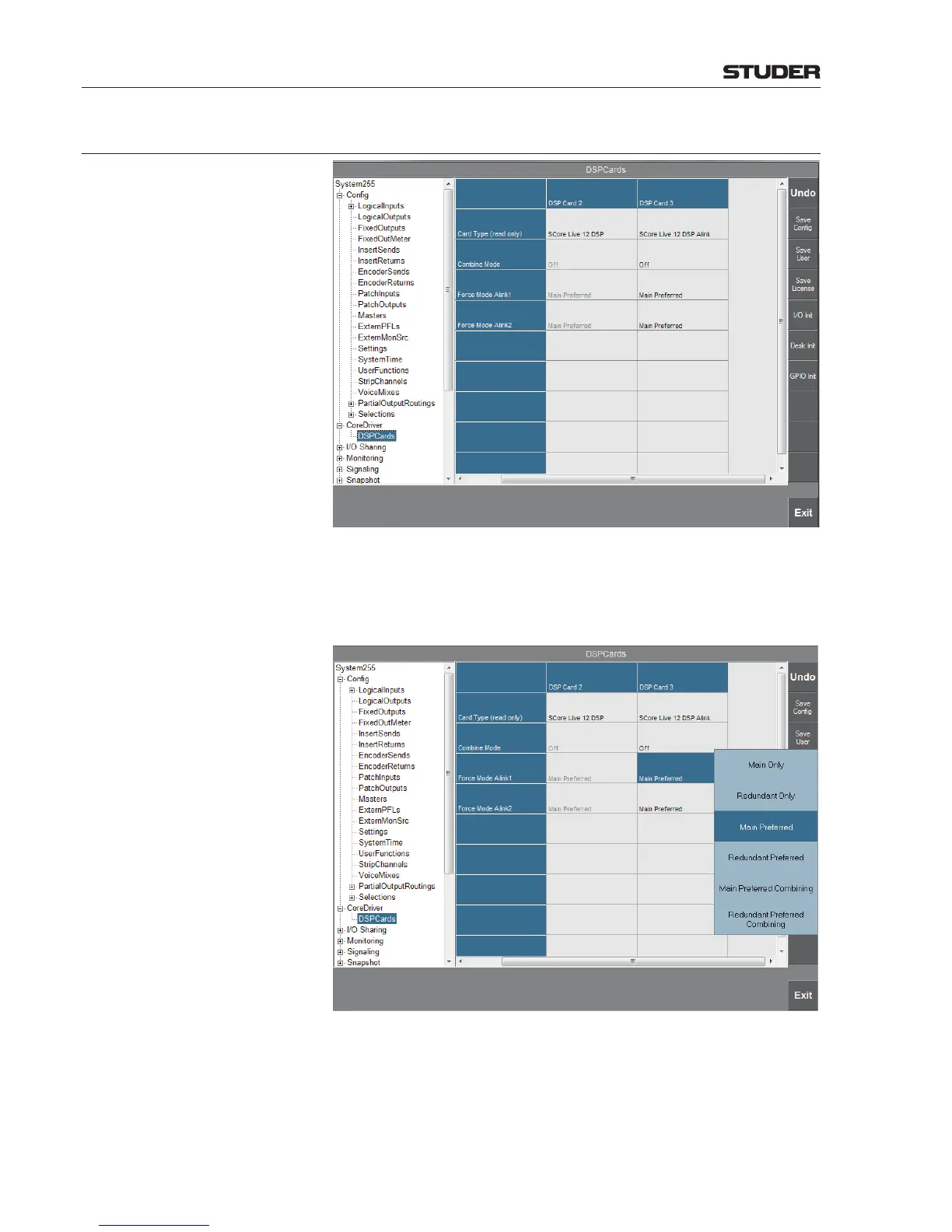

With SW V6.0 the CoreDriver function group has been introduced. Under
DSPCards, the automatically detected DSP cards are displayed. If ALink
DSP cards are used, the mode of ALink1 and ALink2 can be defined as well
as the redundancy behaviour between main and redundant ALink ports.
Combine Mode Activates the Combine Mode for ports ALink1 and ALink2.
Combine Mode = On :
all 192 I/O channels from port ALink1 are used (port ALink2 remains unused).
Combine Mode = Off :
96 I/O channels from port ALink1 and 96 I/O channels from port ALink2 are
used at the same time.
