OnAir 3000 Digital Mixing Console
5-72 Operation
Document generated: 10.10.14
SW V6.0
5.3.7.7 Setup Page
This function allows switching between two different, customer-specific con-
sole configurations (i.e., all parameters setup during console configuration,
including the key assignment, user access rights and passwords). A typical
application would be a single-desk configuration with 24 channels that can
be switched over to an A/B-desk configuration having two times 12 channels.
When starting the console for the first time, the two setups are identical (unless
different factory setups were specified when ordering the console) and cor-
respond to the console’s initial snapshot. In order to generate a second setup,
select it with the SETUP 2 button as described above, modify the configura-
tion as desired, and make sure to make an initial snapshot for the new setup
by using the Save Config button as described in chapter 6.4.2.
User Data Please note that when saving a setup, the complete configuration data are
saved, including all user data such as passwords. Unless your system is con-
nected to a central user management server, password changes must be saved
individually in each setup.

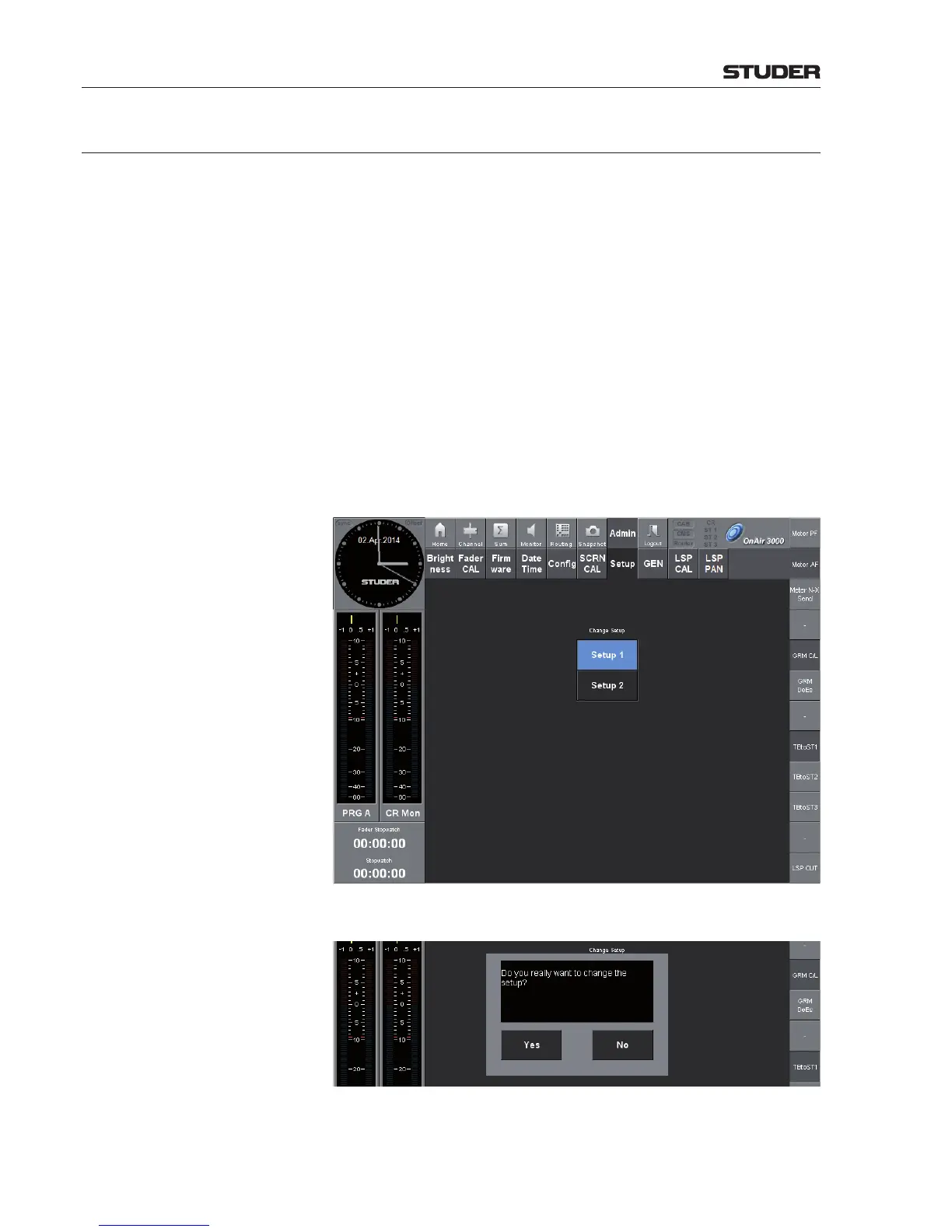

After having selected the desired setup with one of the SETUP 1/2 buttons,
a dialog box appears that must be confirmed for safety reasons:
Selecting a different setup is not allowed as long as local or remote channels
are currently being on-air. In such a case the following message appears:
