6.5.24 Monitoring

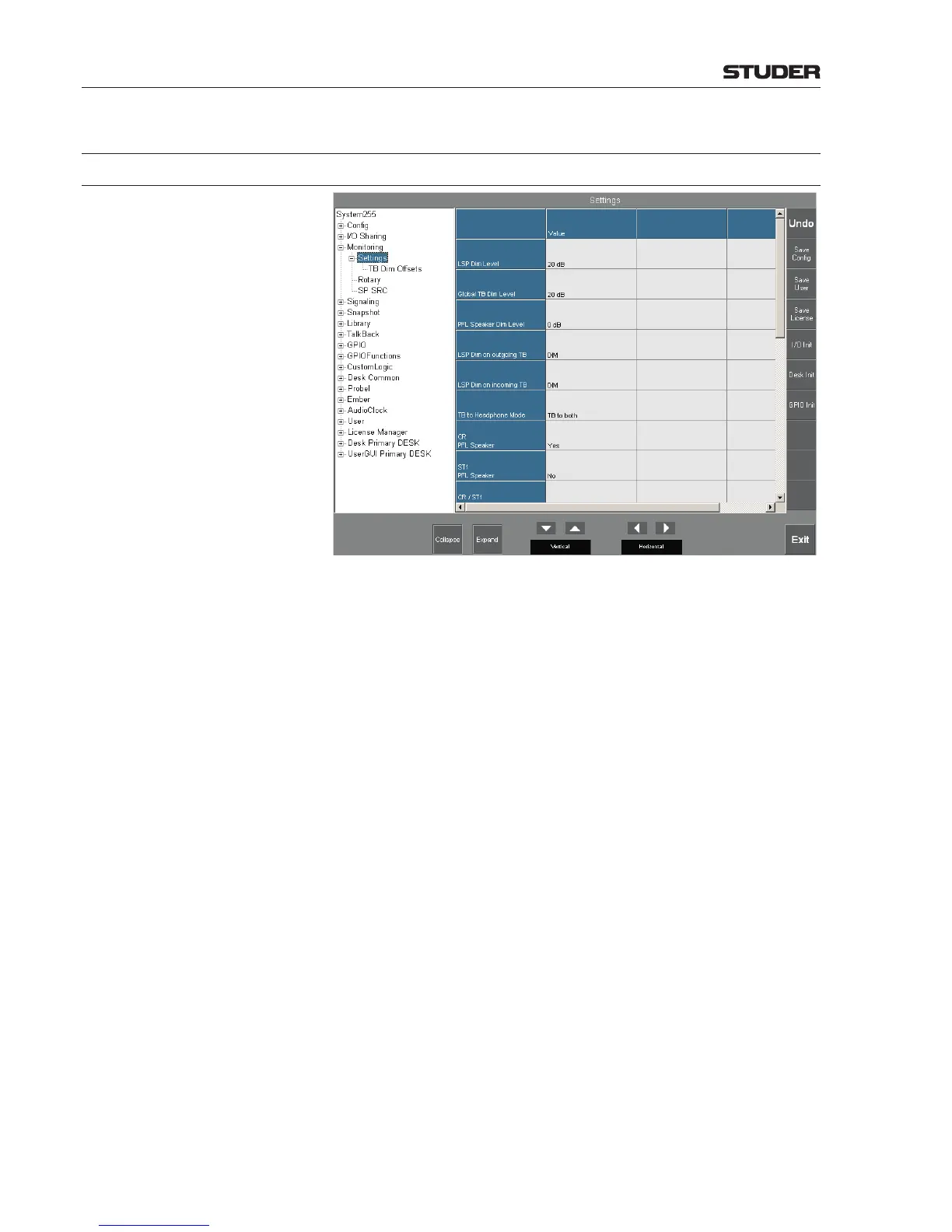

6.5.24.1 Settings
LSP Dim Level Allows setting the control room and studio loudspeaker dim level attenuation
in a range of 0 to 80 dB in steps of 1 dB.
Global TB Dim Level Allows setting the talkback dim level (attenuation of the program while talk-
back is active) in a range of 0 to 80 dB in steps of 1 dB.
PFL Speaker Dim Level Allows setting the PFL loudspeaker dim level (attenuation of the talkback/
PFL speaker while the TB mic is active) in a range of 0 to 80 dB in steps of
1 dB.
LSP Dim on outgoing TB Selects whether the CR and studio loudspeaker levels are attenuated (DIM) or
remain unchanged (NO DIM) as long as the talkback microphone is active.
LSP Dim on incoming TB Selects whether the CR and studio loudspeaker levels are attenuated (DIM)
or remain unchanged (NO DIM) as long as incoming talkback is active.
TB to Headphone Mode If talkback to the host’s headphones is active, this parameter allows selection
of both or only one of his headphone’s channels. Selections: TB to both, TB
to left, TB to right.
CR PFL Speaker Yes defines whether an extra PFL speaker is installed in the control room
(CR).
ST1 PFL Speaker Yes defines two separate PFL circuits for control room and studio 1.
OnAir 1500/2500: Studio 1 not supported.
CR / ST1 ADD Mode If ADD is activated on the monitoring module, two sources can be monitored
simultaneously – a handy function for e.g. station takeover. If Split is selected,
the two sources are routed to the left and right monitor speakers separately; if
Mix is selected, both sources are mixed and routed to both monitor speakers.
OnAir 1500/2500: Studio 1 not supported.
CR / ST1 Audition DIM Mode Setting of the behavior of the CR and Studio1 monitor speakers, if the Audi-
tion bus is selected as CR monitoring source, and if a CR microphone channel
is ON. Selections: DIM (attenuate), CUT (mute), or Nothing (no action).
OnAir 1500/2500: Studio 1 not supported.
