All monitoring/TB modules are available either in Modulo drop-in version for
installing into studio furniture, fixed-frame version, or in table-top housing.
Studio Source Selection Selection of the studio monitoring source can be done from the main screen
or from the studio TB box.
Studio Muting The studio monitoring speakers are automatically muted if at least one of the
microphones in the studio (Sign. = Studio) is on. The studio headphones are
not muted in such a case.
Talkback During talkback from studio to CR and vice versa, the studio speaker level
is automatically dimmed. The talkback signal from CR to studio is not
dimmed and has the normal listening level on both the studio speakers and
headphones.
For more details please refer to chapters 5.3.4.2 and 5.3.4.3.

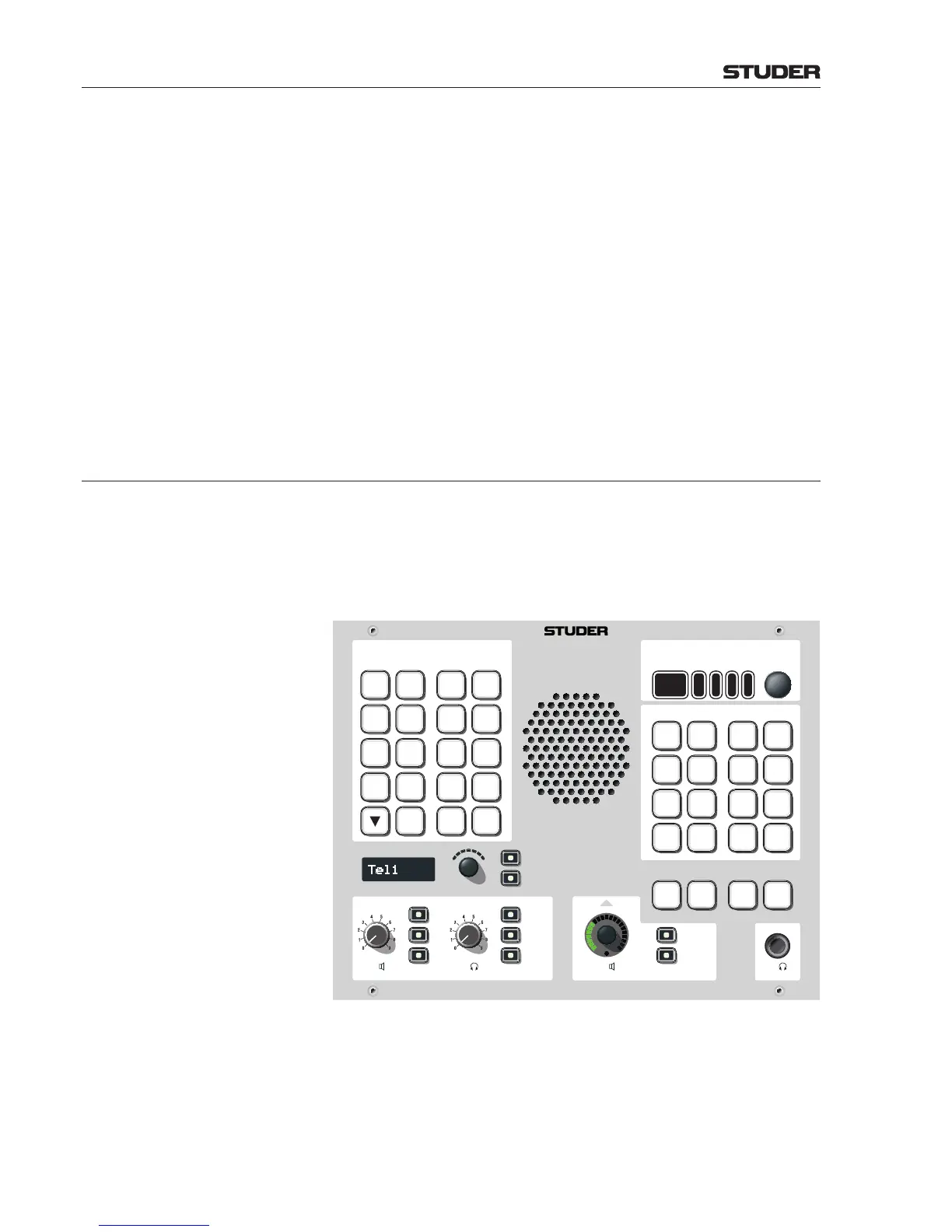

5.5.3 Talkback
 Momentary/Latching Talkback Keys
A short press on one of the talkback keys latches this talkback function, mean-
ing that talkback remains active until the same key is pressed a second time.
A long press on one of the talkback keys makes this talkback function work
in momentary mode, meaning that talkback is automatically canceled upon
release of the key.
Tel1
MONO
CUT
DIM
PFL
PFL / MON
MON
TB RETURN
MPX MASTER
PFL TO MON
ADD
SELECT
CR
CONTROL ROOM RED LIGHT
TALKBACK
DJ SP DJ
PGM
A
AUX 1 N–X 1 N–X 5
PGM
B
AUX 2 N–X 2 N–X 6
REC AUX 3 N–X 3 N–X 7
PFL CR AUX 4 N–X 4 N–X 8
EXT 2EXT 1 EXT 3
AUX 1
AUX 2
AUX 3
PGM
A
PGM
B
REC
SLATEAUX 4
ST 1
ON AIR CR 1 2 3
ST 2
ST 3
EXT
TB
GRP 1
TB
GRP 2
TB
GRP 3
STORE
F 14F 12 F 13F 11
 Control Room Talkback: In the Control Room, talkback to one or several destinations is triggered
by pressing one of the configurable TALKBACK or TB GRP 1 - 3 keys on the
monitoring/TB module. The TB key in the channel strip normally is used for
talkback to the N–X output. It is possible to talk to any destination at a time.
However, for talkback to the main buses (PRG A, PRG B, REC) the SLATE
key must be used in addition (see below). If talkback (to or from the control
room) is active, the corresponding key(s) is/are illuminated.
