YASKAWA GA700 Series

Standards Compliance
5
5.2 European Standards
YASKAWA SIEPC71061705H GA700 Series Technical Manual 229

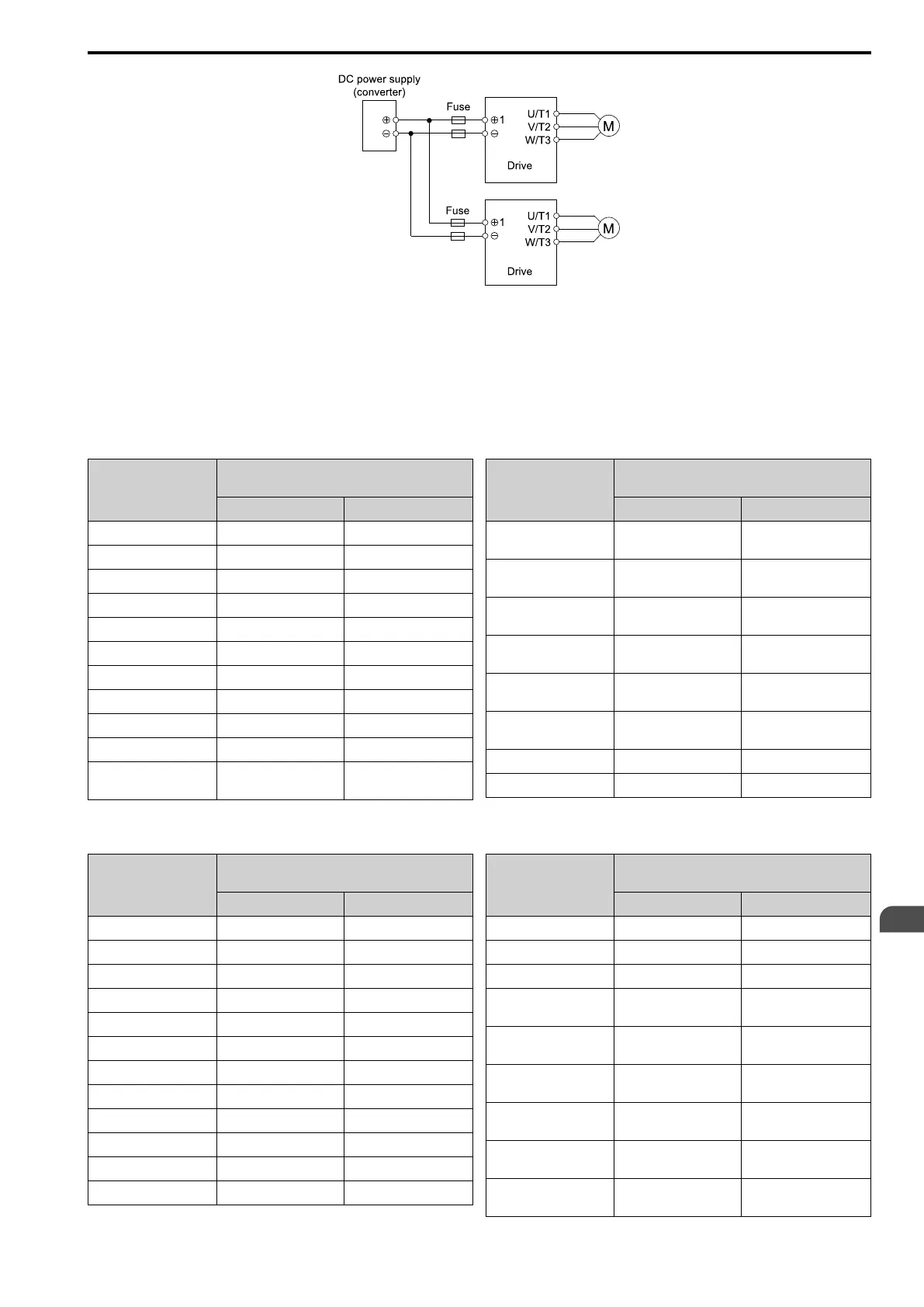

Figure 5.3 Wiring Example for DC Power Supply Input
WARNING! Electrical Shock Hazard. Do not ground the main circuit bus. Incorrect wiring can cause serious injury or death.
Note:
• Install a fuse for each drive when operating more than one drive. If one fuse blows, replace all fuses.
• Install the external filter (system) to comply with the EMC Directive.
Refer to Table 5.4 and Table 5.5 for the recommended fuses.
Table 5.4 Recommended Fuse (Three-Phase 200 V Class)
Drive Model
Fuse
Manufacturer: Bussmann
Model Qty
2004 FWH-45B 2
2006 FWH-45B 2
2010 FWH-45B 2
2012 FWH-50B 2
2018 FWH-80B 2
2021 FWH-80B 2
2030 FWH-125B 2
2042 FWH-150B 2
2056 FWH-200B 2
2070 FWH-250A 2
2082
FWH-250A
FWH-300A
*1
2
Drive Model
Fuse
Manufacturer: Bussmann
Model Qty
2110
FWH-250A
FWH-275A
*1
2
2138
FWH-300A
FWH-350A
*1
2
2169
FWH-350A
FWH-450A
*1
2
2211
FWH-450A
FWH-600A
*1
2
2257
FWH-600A
FWH-700A
*1
2
2313
FWH-800A
FWH-1000B
*1
2
2360 FWH-1000B 2
2415 FWH-1000B 2
*1 Yaskawa recommends a fuse with a large rated current for applications with repeated loads.
Table 5.5 Recommended Fuse (Three-Phase 400 V Class)
Drive Model
Fuse
Manufacturer: Bussmann
Model Qty
4002 FWH-50B 2
4004 FWH-50B 2
4005 FWH-50B 2
4007 FWH-60B 2
4009 FWH-60B 2
4012 FWH-60B 2
4018 FWH-80B 2
4023 FWH-90B 2
4031 FWH-150B 2
4038 FWH-200B 2
4044 FWH-200B 2
4060 FWH-225A 2
Drive Model
Fuse
Manufacturer: Bussmann
Model Qty
4075 FWH-250A 2
4089 FWH-275A 2
4103 FWH-275A 2
4140
FWH-300A
FWH-325A
*1
2
4168
FWH-400A
FWH-450A
*1
2
4208
FWH-500A
FWH-600A
*1
2
4250
FWH-600A
FWH-700A
*1
2
4296
FWH-700A
FWH-800A
*1
2
4371
FWH-800A
FWH-1000B
*1
2
