YASKAWA GA700 Series

5.2 European Standards
234 YASKAWA SIEPC71061705H GA700 Series Technical Manual

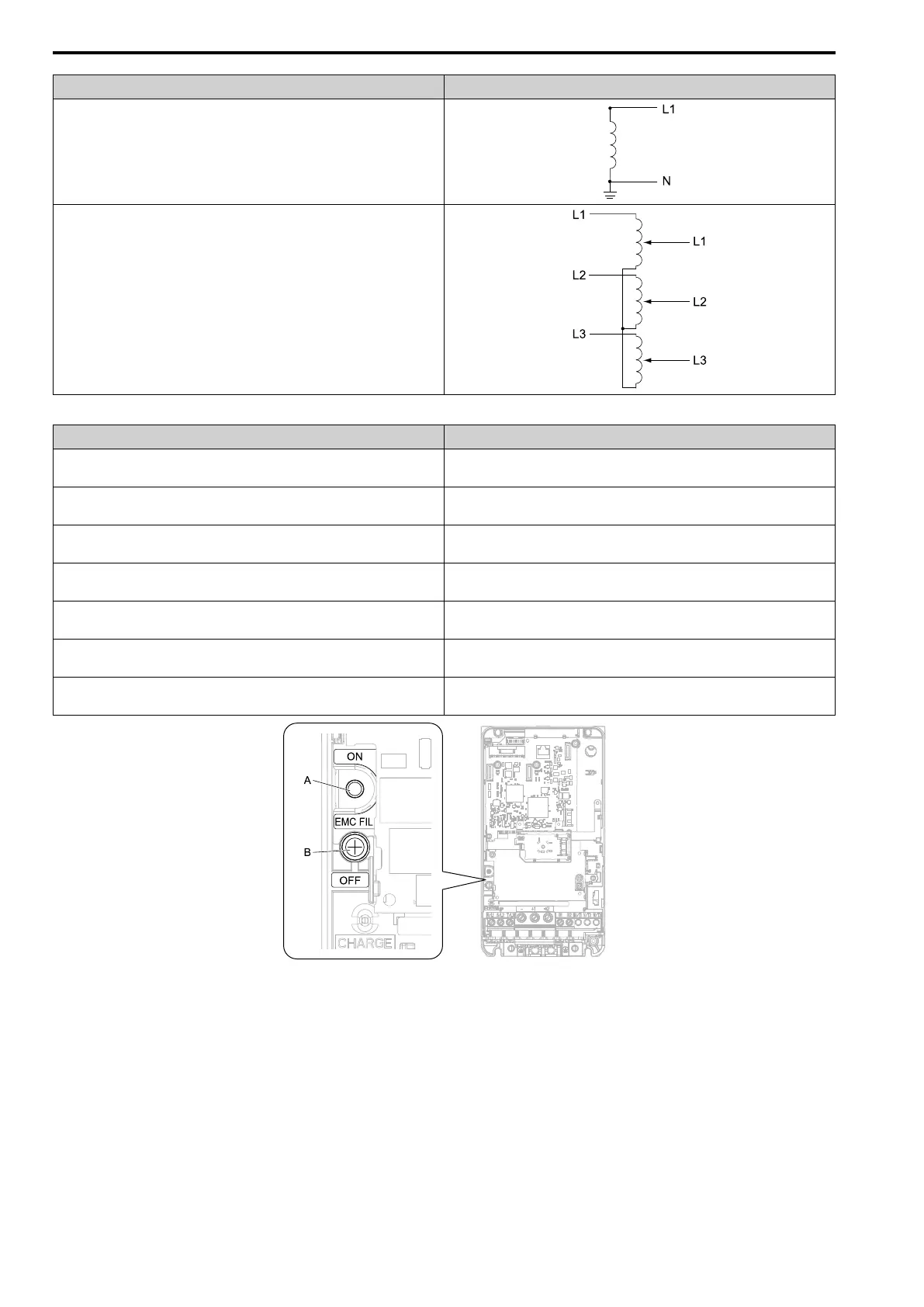

Type of Grounding Diagram
Single-phase, grounded at the end point
Three-phase variable transformer without solidly grounded neutral
Table 5.9 EMC Filter Switch Location
Model Switch Location Diagram
2004B - 2042B, 4002B - 4023B
2004C - 2042C, 4002C - 4023C
Figure 5.8
2056B, 4031B, 4038B
2056C, 4031C, 4038C
Figure 5.9
2070B, 2082B, 4044B, 4060B
2070C, 2082C, 4044C, 4060C
Figure 5.10
2110B, 4075B, 2138B - 2211B, 4089B - 4168B
2110C, 4075C, 2138C - 2211C, 4089C - 4168C
Figure 5.11
2257B - 2313B, 4208B - 4296B
2257C - 2313C, 4208C - 4296C
Figure 5.12
2360B, 2415B, 4371B, 4389B
2360C, 2415C, 4371C, 4389C
Figure 5.13
4453B - 4675B
4453C - 4675C
Figure 5.14
A - SW (ON) B - Screw (OFF)
Figure 5.8 EMC Filter Switch Location 1
