YASKAWA GA700 Series

10.7 Drive Exterior and Mounting Dimensions
458 YASKAWA SIEPC71061705H GA700 Series Technical Manual
■ 2070, 2082, 4044, 4060

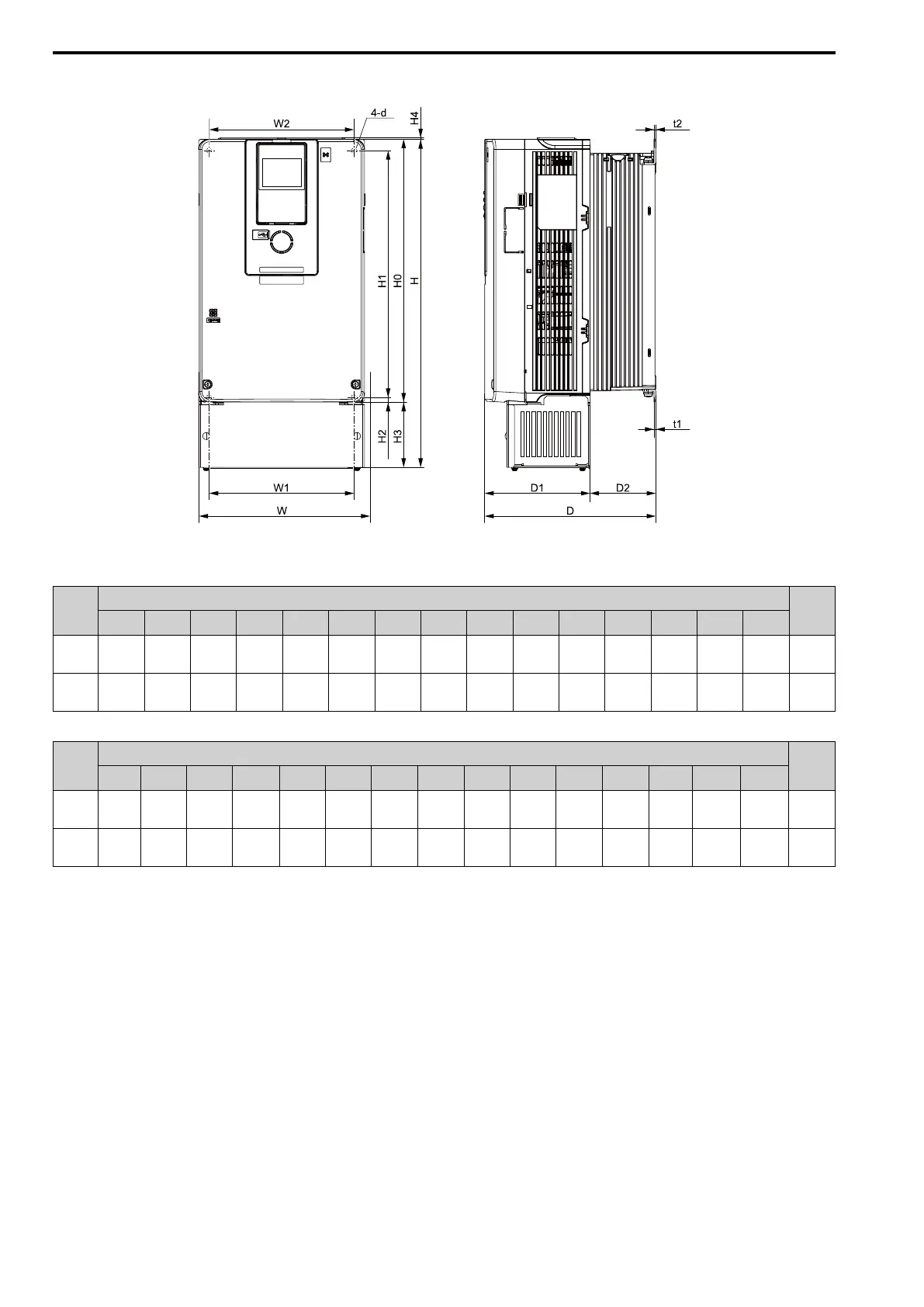

Figure 10.13 Dimension Diagram 3
Table 10.51 Three-Phase 200 V Class (IP20/UL Type 1)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2 H0 H1 H2 H3 H4 t1 t2 d
2070
220
(8.66)
400
(15.75)
227
(8.94)
140
(5.51)
87
(3.43)
192
(7.56)
192
(7.56)
350
(13.78)
335
(13.19)
8
(0.32)
50
(1.97)
1.5
(0.06)
2.3
(0.09)
2.3
(0.09)
M6
9
(19.85)
2082
220
(8.66)
435
(17.13)
227
(8.94)
140
(5.51)
87
(3.43)
192
(7.56)
192
(7.56)
350
(13.78)
335
(13.19)
8
(0.32)
85
(3.35)
1.5
(0.06)
2.3
(0.09)
2.3
(0.09)
M6
10.5
(23.15)
Table 10.52 Three-Phase 400 V Class (IP20/UL Type 1)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2 H0 H1 H2 H3 H4 t1 t2 d
4044
220
(8.66)
400
(15.75)
227
(8.94)
140
(5.51)
87
(3.43)
192
(7.56)
192
(7.56)
350
(13.78)
335
(13.19)
8
(0.32)
50
(1.97)
1.5
(0.06)
2.3
(0.09)
2.3
(0.09)
M6
9
(19.85)
4060
220
(8.66)
400
(15.75)
246
(9.69)
140
(5.51)
106
(4.17)
192
(7.56)
192
(7.56)
350
(13.78)
335
(13.19)
8
(0.32)
50
(1.97)
1.5
(0.06)
2.3
(0.09)
2.3
(0.09)
M6
14
(30.87)
