10.7 Drive Exterior and Mounting Dimensions
YASKAWA SIEPC71061705H GA700 Series Technical Manual 459
■ 2110, 4075

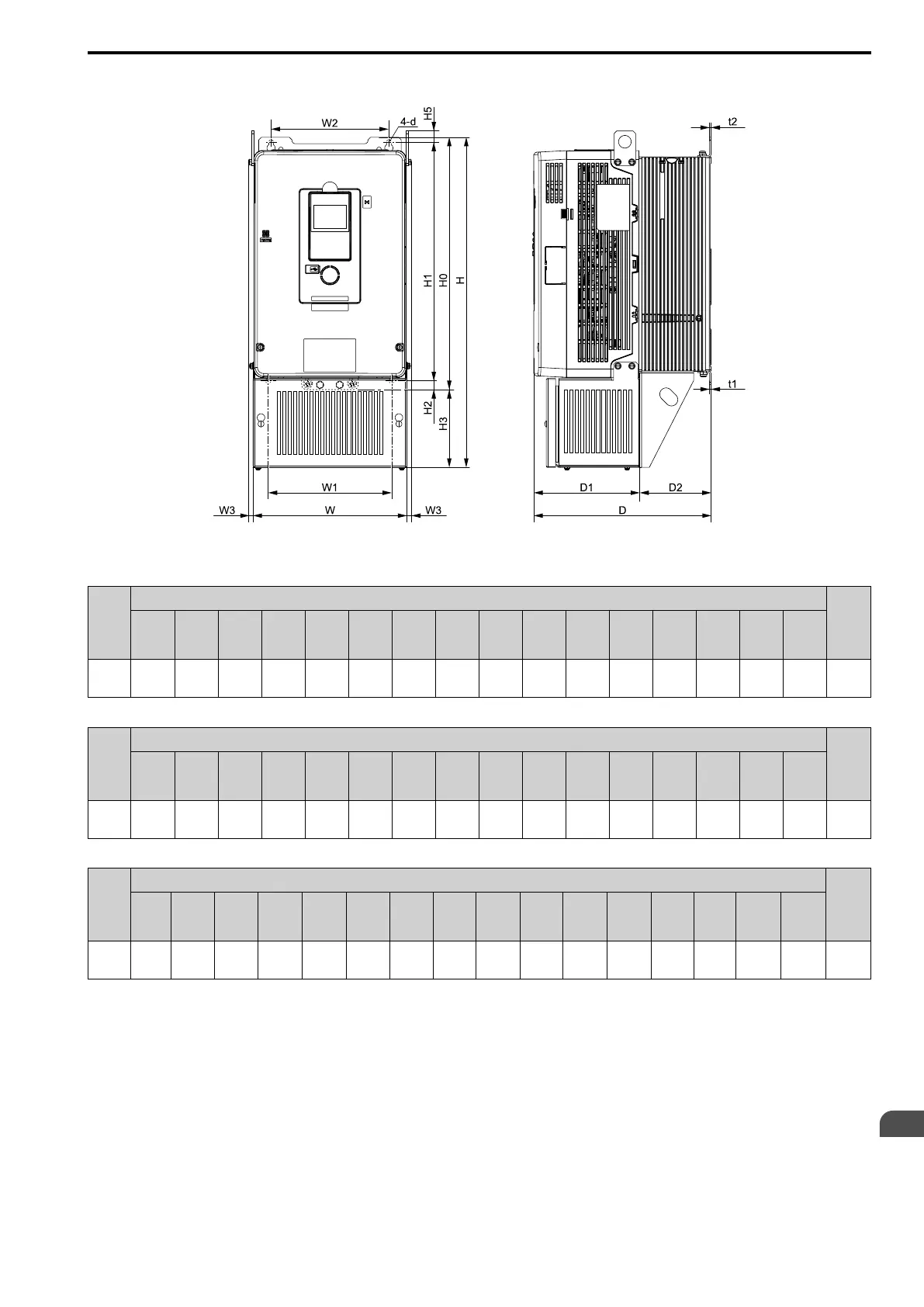

Figure 10.14 Dimension Diagram 4
Table 10.53 Three-Phase 200 V Class (IP20/UL Type 1, No Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2110
244
(9.61)
500
(19.69)
280
(11.02)
166
(6.54)
114
(4.49)
195
(7.68)
186
(7.32)
10
(0.39)
400
(15.75)
375
(14.76)
17.5
(0.69)
100
(3.94)
17.5
(0.69)
2.3
(0.09)
2.3
(0.09)
M6
20
(44.10)
Table 10.54 Three-Phase 200 V Class (IP20/UL Type 1, with Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2110
244
(9.61)
500
(19.69)
280
(11.02)
166
(6.54)
114
(4.49)
195
(7.68)
186
(7.32)
10
(0.39)
400
(15.75)
375
(14.76)
17.5
(0.69)
100
(3.94)
17.5
(0.69)
2.3
(0.09)
2.3
(0.09)
M6
21
(46.31)
Table 10.55 Three-Phase 400 V Class (IP20/UL Type 1)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
4075
244
(9.61)
500
(19.69)
280
(11.02)
166
(6.54)
114
(4.49)
195
(7.68)
186
(7.32)
10
(0.39)
400
(15.75)
375
(14.76)
17.5
(0.69)
100
(3.94)
17.5
(0.69)
2.3
(0.09)
2.3
(0.09)
M6
18
(39.69)
