10.7 Drive Exterior and Mounting Dimensions
460 YASKAWA SIEPC71061705H GA700 Series Technical Manual
■ 2138, 4089, 4103

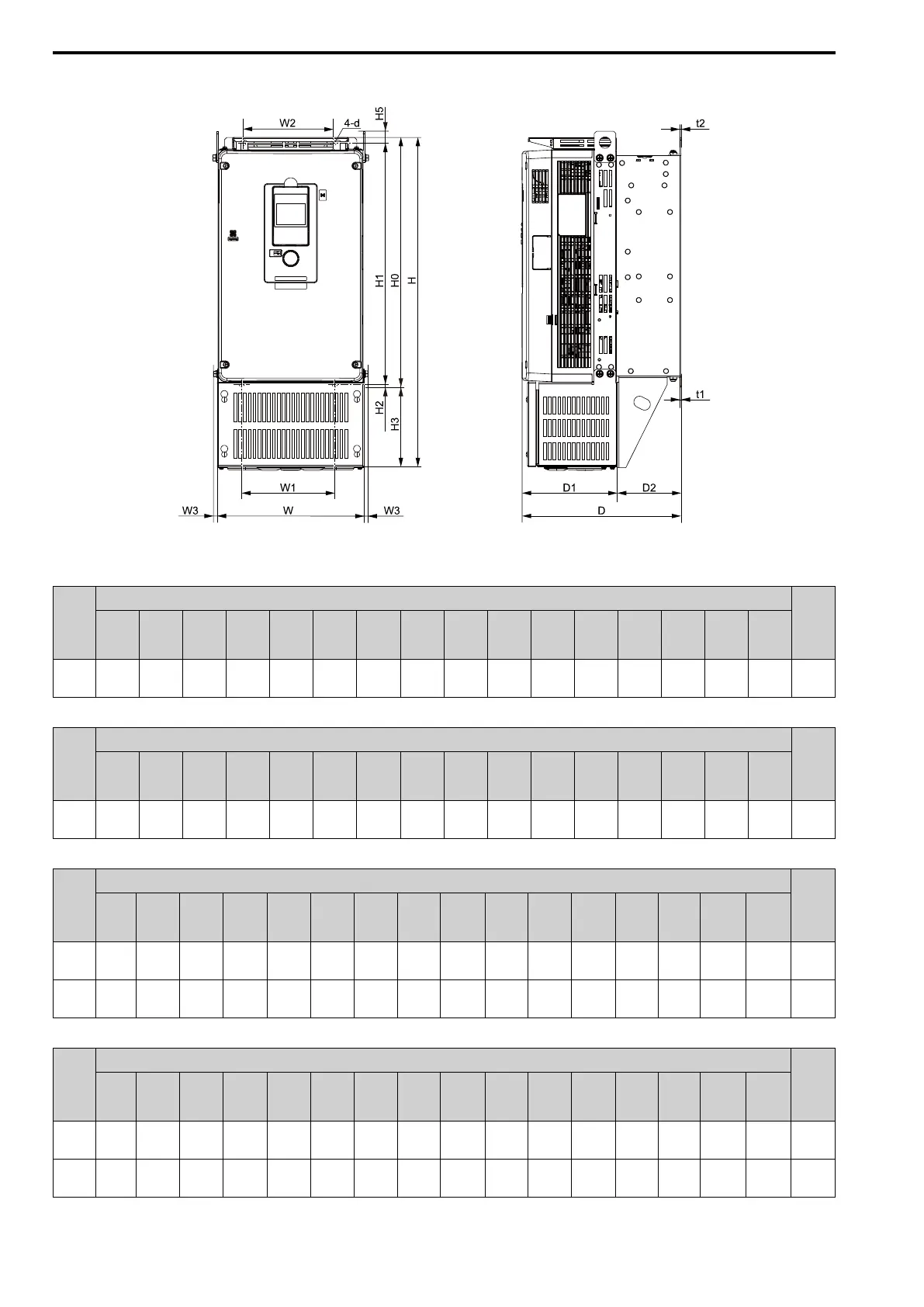

Figure 10.15 Dimension Diagram 5
Table 10.56 Three-Phase 200 V Class (IP20/UL Type 1, No Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2138
259
(10.20)
580
(22.83)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
10
(0.39)
450
(17.72)
424
(16.69)
16
(0.63)
130
(5.12)
21
(0.83)
2.3
(0.09)
2.3
(0.09)
M6
24
(52.92)
Table 10.57 Three-Phase 200 V Class (IP20/UL Type 1, with Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2138
259
(10.20)
580
(22.83)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
10
(0.39)
450
(17.72)
424
(16.69)
16
(0.63)
130
(5.12)
21
(0.83)
2.3
(0.09)
2.3
(0.09)
M6
25
(55.13)
Table 10.58 Three-Phase 400 V Class (IP20/UL Type 1, No Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
4089
259
(10.20)
580
(22.83)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
10
(0.39)
450
(17.72)
424
(16.69)
16
(0.63)
130
(5.12)
21
(0.83)
2.3
(0.09)
2.3
(0.09)
M6
23
(50.72)
4103
259
(10.20)
580
(22.83)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
10
(0.39)
450
(17.72)
424
(16.69)
16
(0.63)
130
(5.12)
21
(0.83)
2.3
(0.09)
2.3
(0.09)
M6
28
(61.74)
Table 10.59 Three-Phase 400 V Class (IP20/UL Type 1, with Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
4089
259
(10.20)
580
(22.83)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
10
(0.39)
450
(17.72)
424
(16.69)
16
(0.63)
130
(5.12)
21
(0.83)
2.3
(0.09)
2.3
(0.09)
M6
24
(52.92)
4103
259
(10.20)
580
(22.83)
280
(11.02)
166
(6.54)
114
(4.49)
170
(6.69)
165
(6.50)
10
(0.39)
450
(17.72)
424
(16.69)
16
(0.63)
130
(5.12)
21
(0.83)
2.3
(0.09)
2.3
(0.09)
M6
29
(63.95)
