10.7 Drive Exterior and Mounting Dimensions
YASKAWA SIEPC71061705H GA700 Series Technical Manual 461
■ 2169, 2211, 4140, 4168

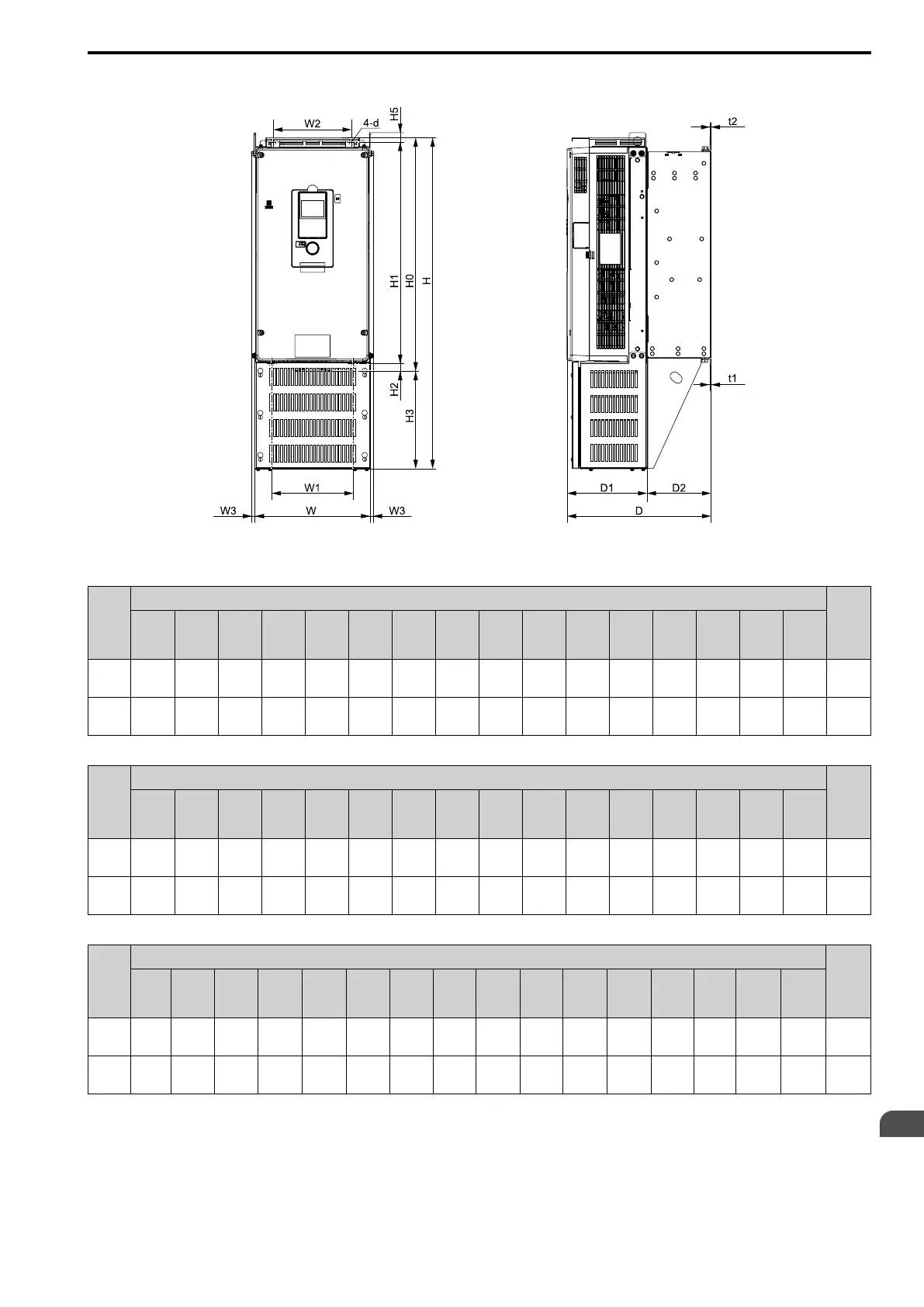

Figure 10.16 Dimension Diagram 6
Table 10.60 Three-Phase 200 V Class (IP20/UL Type 1, No Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2169
268
(10.55)
700
(27.56)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
157
(6.18)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
39
(86.00)
2211
268
(10.55)
770
(30.31)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
227
(8.94)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
41
(90.41)
Table 10.61 Three-Phase 200 V Class (IP20/UL Type 1, with Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2169
268
(10.55)
700
(27.56)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
157
(6.18)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
40
(88.20)
2211
268
(10.55)
770
(30.31)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
227
(8.94)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
42
(92.61)
Table 10.62 Three-Phase 400 V Class (IP20/UL Type 1, No Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
4140
268
(10.55)
700
(27.56)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
157
(6.18)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
41
(90.41)
4168
268
(10.55)
700
(27.56)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
157
(6.18)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
42
(92.61)
