YASKAWA GA700 Series

10.7 Drive Exterior and Mounting Dimensions
462 YASKAWA SIEPC71061705H GA700 Series Technical Manual
Table 10.63 Three-Phase 400 V Class (IP20/UL Type 1, with Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
4140
268
(10.55)
700
(27.56)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
157
(6.18)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
42
(92.61)
4168
268
(10.55)
700
(27.56)
335
(13.19)
186
(7.32)
149
(5.87)
190
(7.48)
182
(7.17)
10
(0.39)
543
(21.38)
516
(20.31)
17.5
(0.69)
157
(6.18)
20.5
(0.81)
2.3
(0.09)
2.3
(0.09)
M8
43
(94.82)
■ 2257, 2313, 4208 to 4296

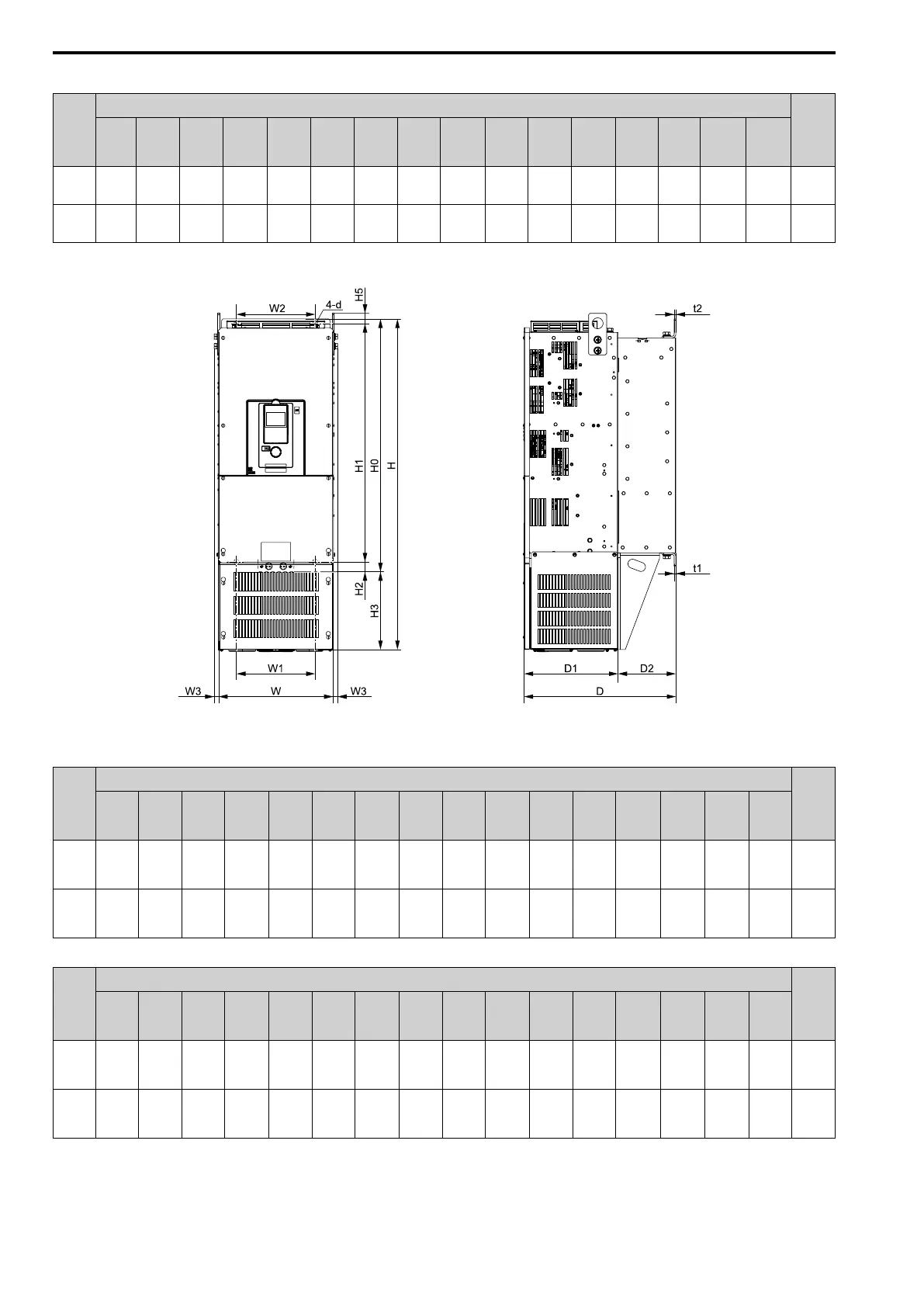

Figure 10.17 Dimension Diagram 7
Table 10.64 Three-Phase 200 V Class (IP20/UL Type 1, No Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2257
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.63)
700
(27.56)
659
(25.94)
28
(1.10)
215
(8.46)
28.5
(1.12)
4.5
(0.18)
4.5
(0.18)
M10
63
(138.92
)
2313
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.63)
700
(27.56)
659
(25.94)
28
(1.10)
215
(8.46)
28.5
(1.12)
4.5
(0.18)
4.5
(0.18)
M10
66
(145.53
)
Table 10.65 Three-Phase 200 V Class (IP20/UL Type 1, with Internal EMC Filter)
Model
Dimensions mm (in)
Est.
Weight
kg (lb)
W H D D1 D2 W1 W2
W3
(Maxi
mum)
H0 H1 H2 H3 H5 t1 t2 d
2257
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.63)
700
(27.56)
659
(25.94)
28
(1.10)
215
(8.46)
28.5
(1.12)
4.5
(0.18)
4.5
(0.18)
M10
64
(141.12
)
2313
316
(12.44)
915
(36.02)
420
(16.54)
260
(10.24)
160
(6.30)
218
(8.58)
218
(8.58)
16
(0.63)
700
(27.56)
659
(25.94)
28
(1.10)
215
(8.46)
28.5
(1.12)
4.5
(0.18)
4.5
(0.18)
M10
66
(145.53
)
