YASKAWA GA700 Series

3.4 Main Circuit Terminal Block Wiring Procedure
90 YASKAWA SIEPC71061705H GA700 Series Technical Manual

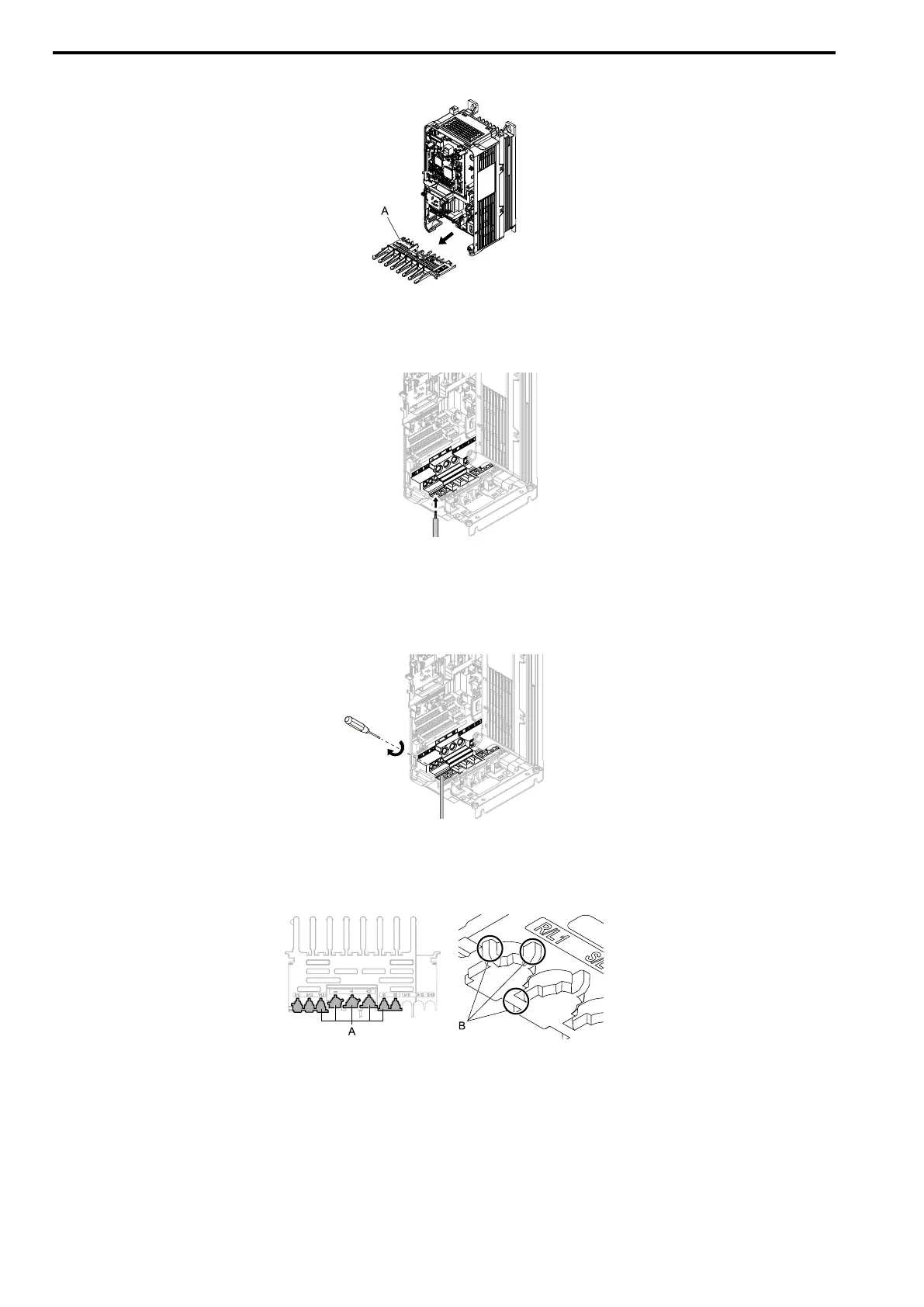

1. Pull the wiring cover away from the drive to remove it.
A - Wiring cover
Figure 3.24 Remove the Wiring Cover
2. Put the end of a prepared wire into the terminal block.
Figure 3.25 Install the Electrical Wire
Note:
If there is a jumper between terminals +1 and +2, loosen the terminal block screws and remove the jumper before wiring the
terminals.
3. Tighten the screws to the specified torque.
Figure 3.26 Tighten Terminal Block Screws
4. Examine the signal from the wired terminal and use a diagonal-cutting pliers to remove areas of the wiring
cover cutaway section.
To remove the wiring cover, cut off the portion shown in Figure 3.27.
A - Cutaway sections B - Cut this portion with a diagonal-cutting pliers
Figure 3.27 Clip the Cutaway Section of the Wiring Cover
