S820E UG PN: 10580-00343 Rev. H 4-13
Calibration, CAA 4-2 Calibration Setup

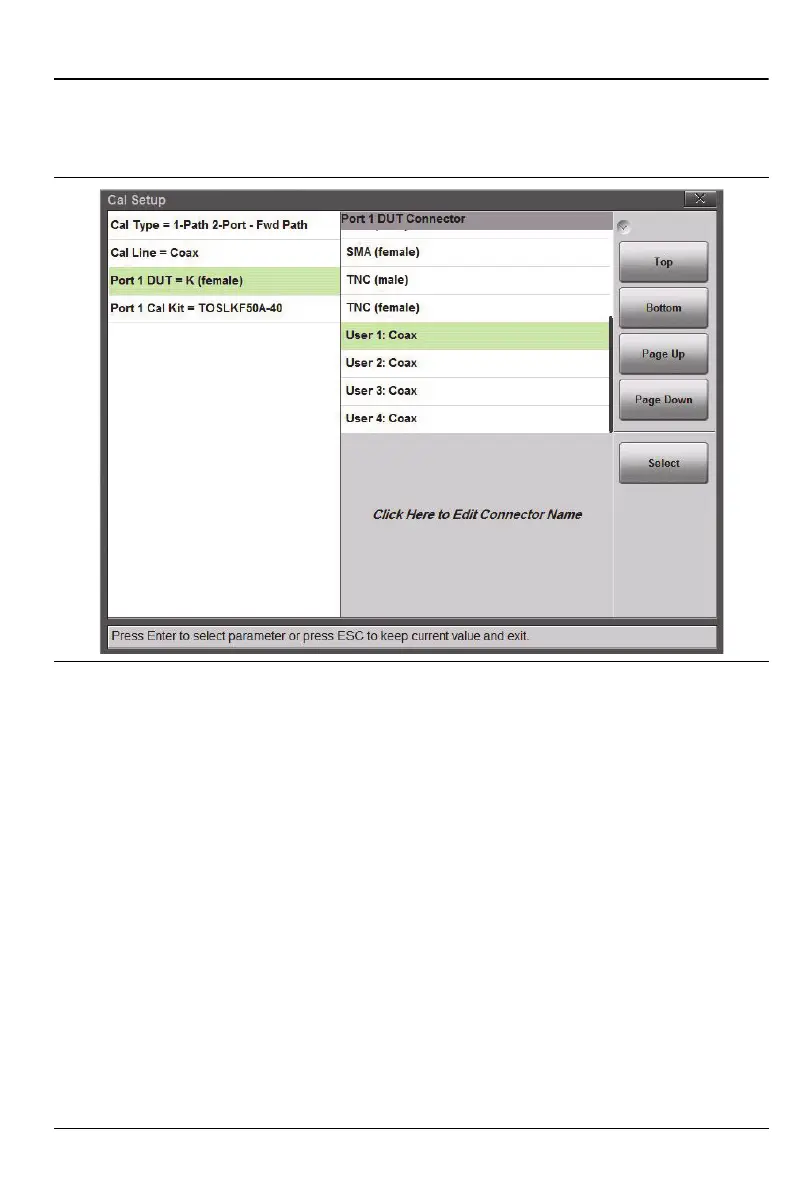

Figure 4-8 illustrates the Selection window for the Port 1 DUT connectors,
showing the list of custom User connectors available to the user. The name of
the connectors can be edited as indicated on the screen.
Figure 4-8. Cal Setup, Port 1 DUT Connectors
