4-14 PN: 10580-00343 Rev. H S820E UG
4-2 Calibration Setup Calibration, CAA

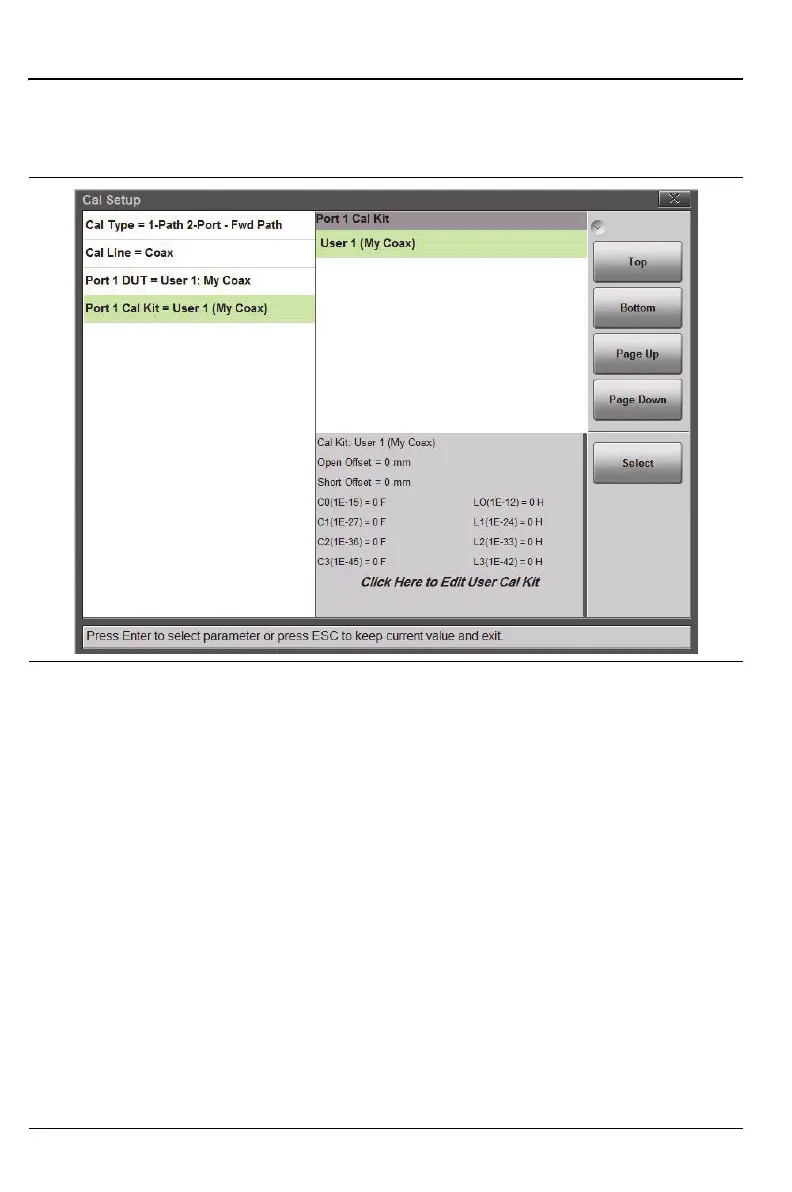

Figure 4-9 shows the selection window for the custom User cal kits
corresponding to the User 1 DUT coaxial connector. The corresponding cal kit
parameters are shown and can be edited as indicated on the screen.
Figure 4-9. Cal Setup, Port 1 DUT Coax Connector
To Next Page
