S820E UG PN: 10580-00343 Rev. H 6-11
VNA Mode 6-4 Display Capabilities
3. Next, set Trace Format = Dual. Note how the 4 traces are assigned to
the split display. TR1 (Trace 1) and TR3 are assigned to the top graph.
TR2 and TR4 are assigned to the bottom graph. Refer to Figure 6-5.

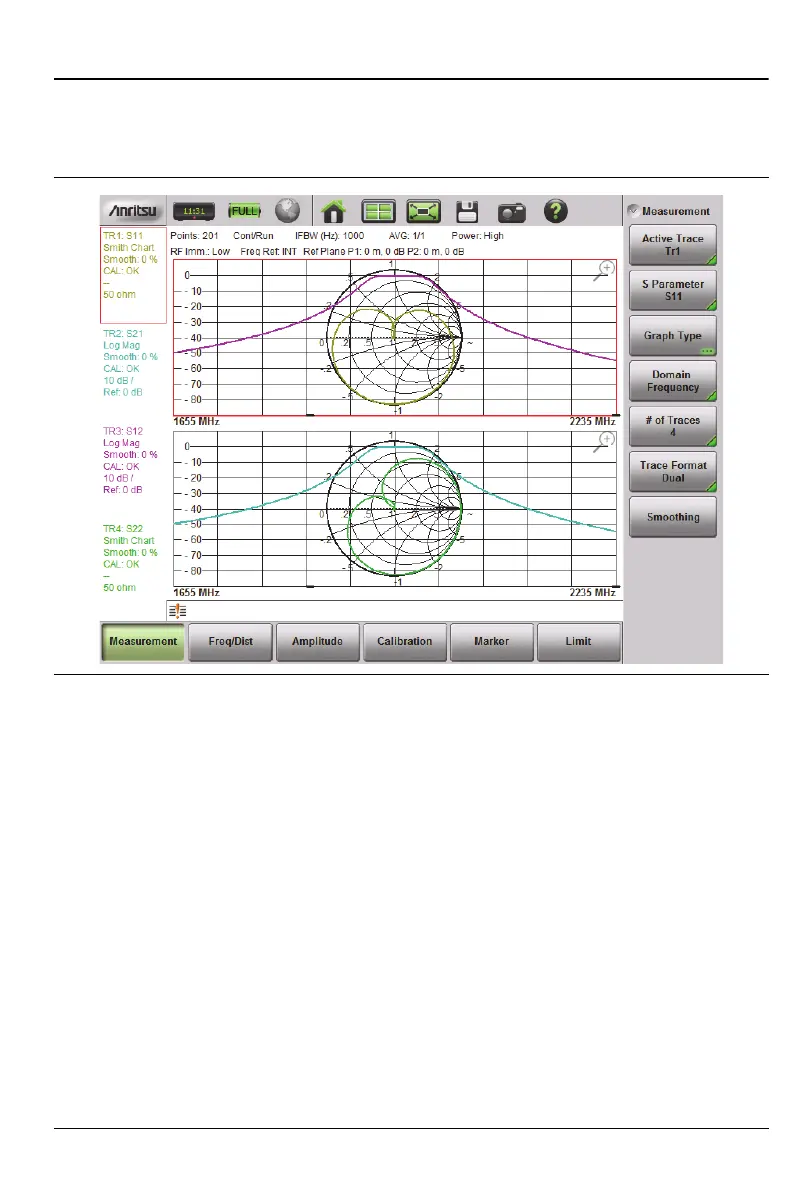

Figure 6-5. Format = Dual, Traces = 4
