6-4 Display Capabilities VNA Mode
4. Next change Trace Format to Tri. Note how the 4 traces are assigned on
this display. TR3 and TR4 are now overlaid in the bottom half of the
display area. Refer to Figure 6-6.

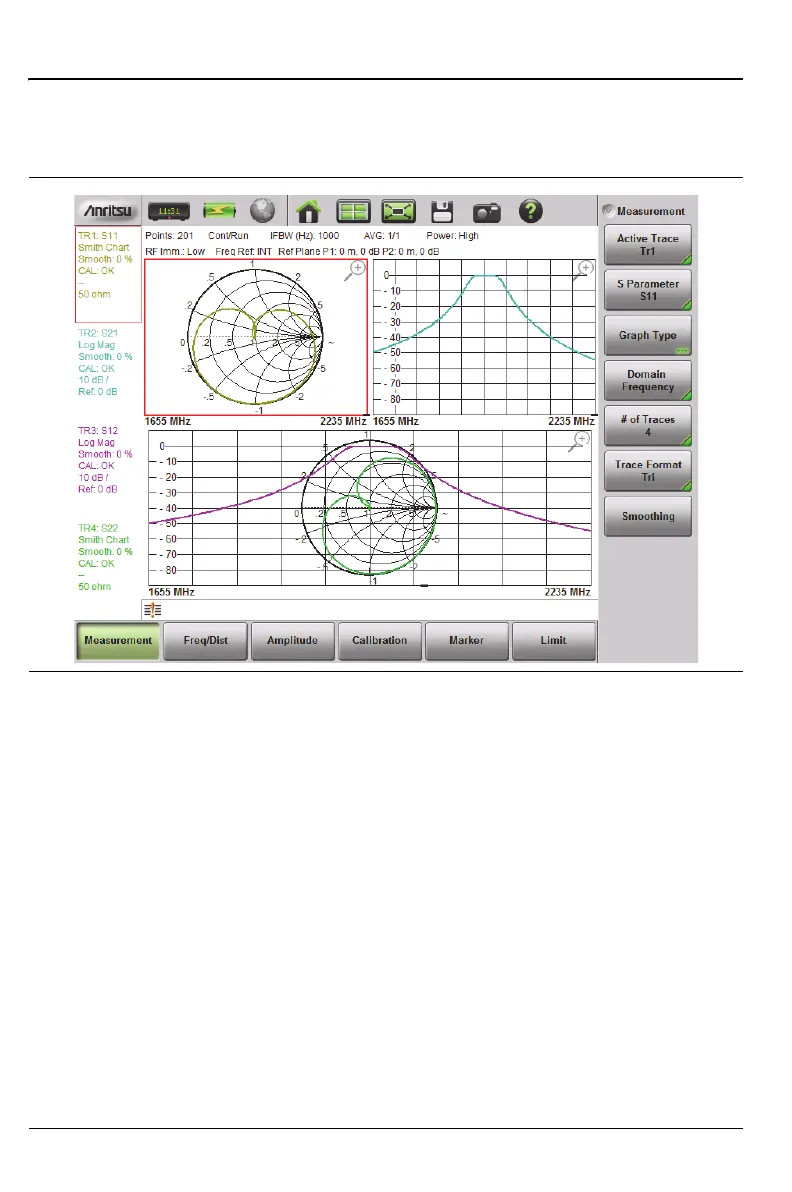

Figure 6-6. Format = Tri, Traces = 4
