VNA Mode 6-4 Display Capabilities
5. Now return to the default display of Trace Format = Quad. Change the
Number of Traces from 4 to 1. Note how the top left quadrant is filled,
while the other three quadrants have no data. Refer to Figure 6-7.

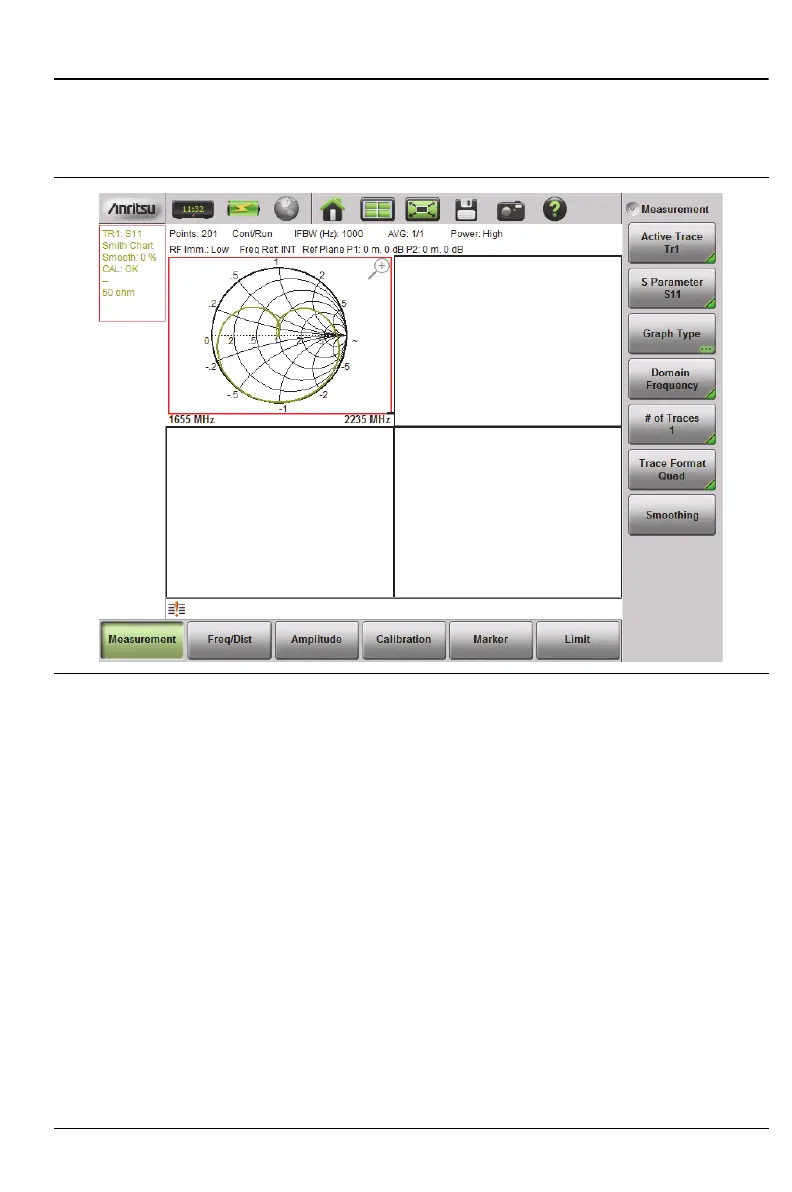

Figure 6-7. Format = Quad, Traces = 1
