7-10 PN: 10580-00343 Rev. H S820E UG
7-3 Calibration Setup Calibration, VNA
Figure 7-7 shows the Selection window for the Port 1 Cal Kit with its list of
available calibration kits and the corresponding parameters for each kit.
The selection list for DUT connectors includes all of the common connectors
that you may encounter. Table 7-1, “Coax Dut Connectors and Cal Kits”
on page 7-11 and Table 7-2, “Waveguide DUT Connectors” on page 7-12
provide complete lists of Coax and Waveguide connectors and corresponding
calibration kits that are selectable through the Cal Setup dialog box.

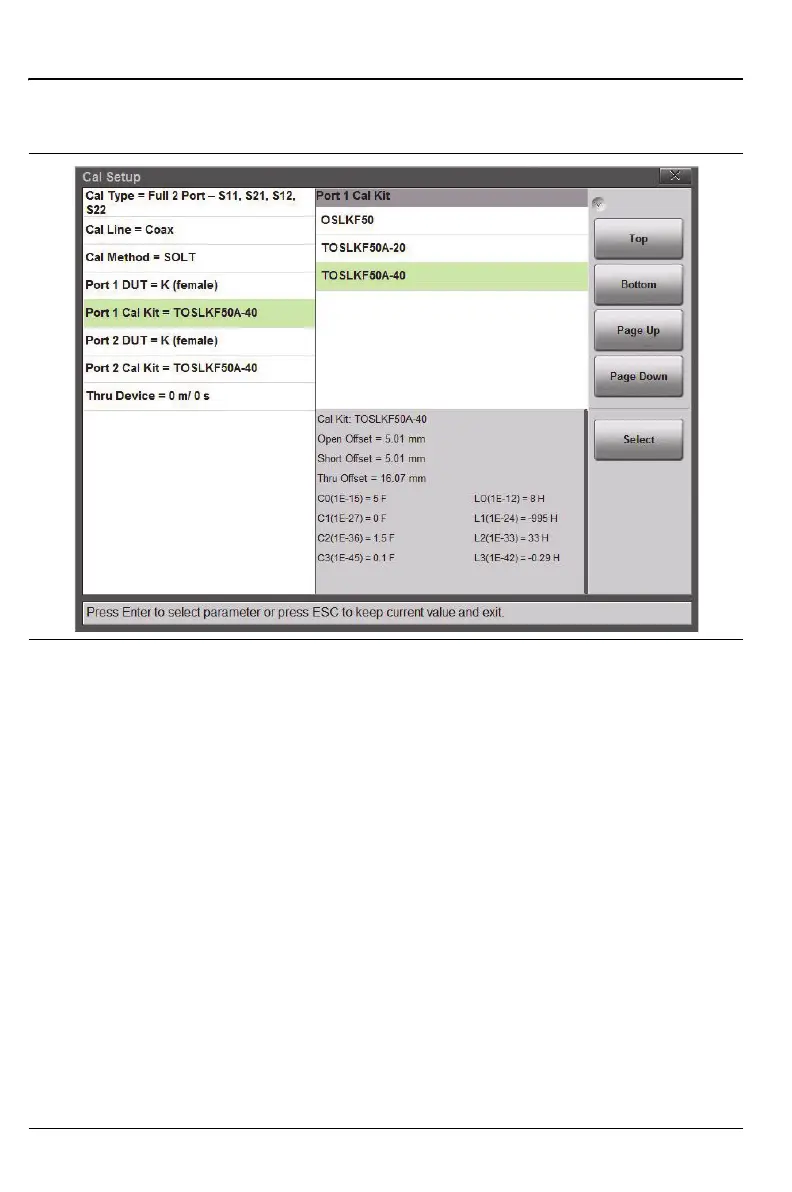

Figure 7-7. Selection Window for Port 1 Cal Kit
