7-14 PN: 10580-00343 Rev. H S820E UG
7-3 Calibration Setup Calibration, VNA

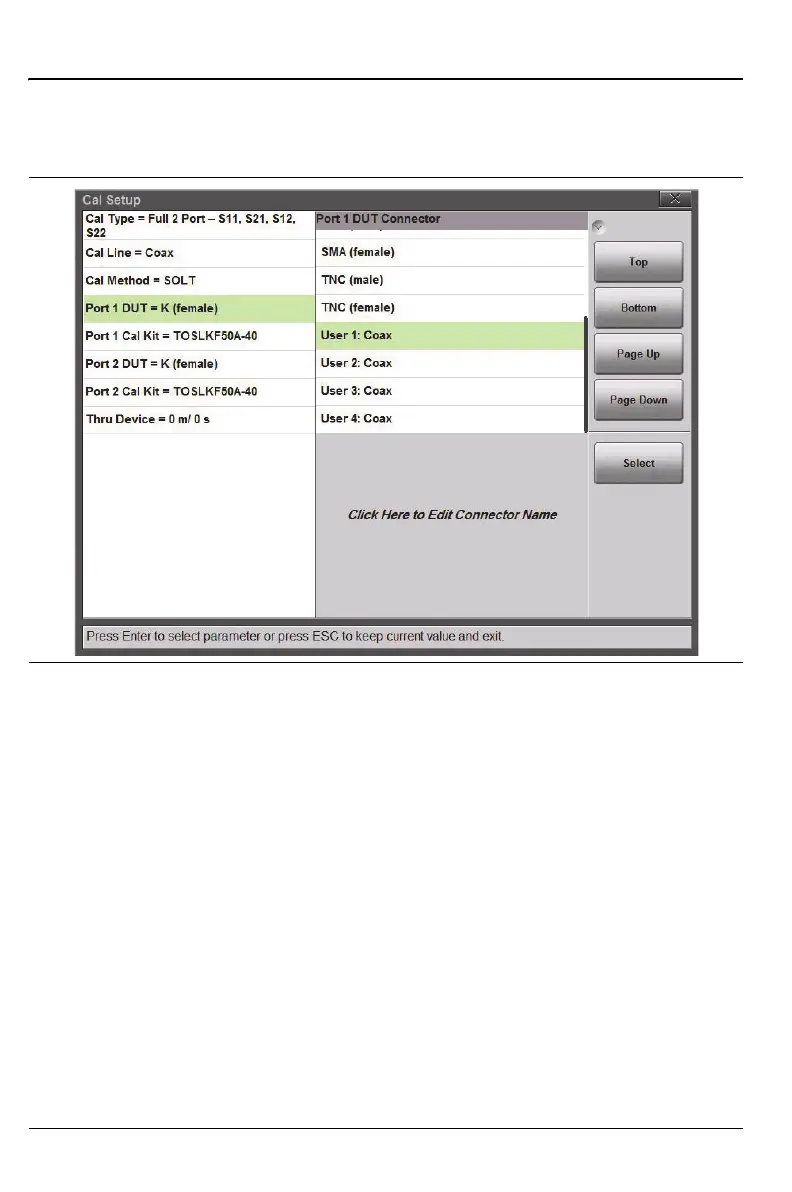

Figure 7-8 illustrates the Selection window for the Port 1 DUT connectors,
showing the list of custom User connectors available to the user. The name of
the connectors can be edited as indicated on the screen.
Figure 7-8. Cal Setup, Port 1 DUT Connectors
