Calibration, VNA 7-3 Calibration Setup

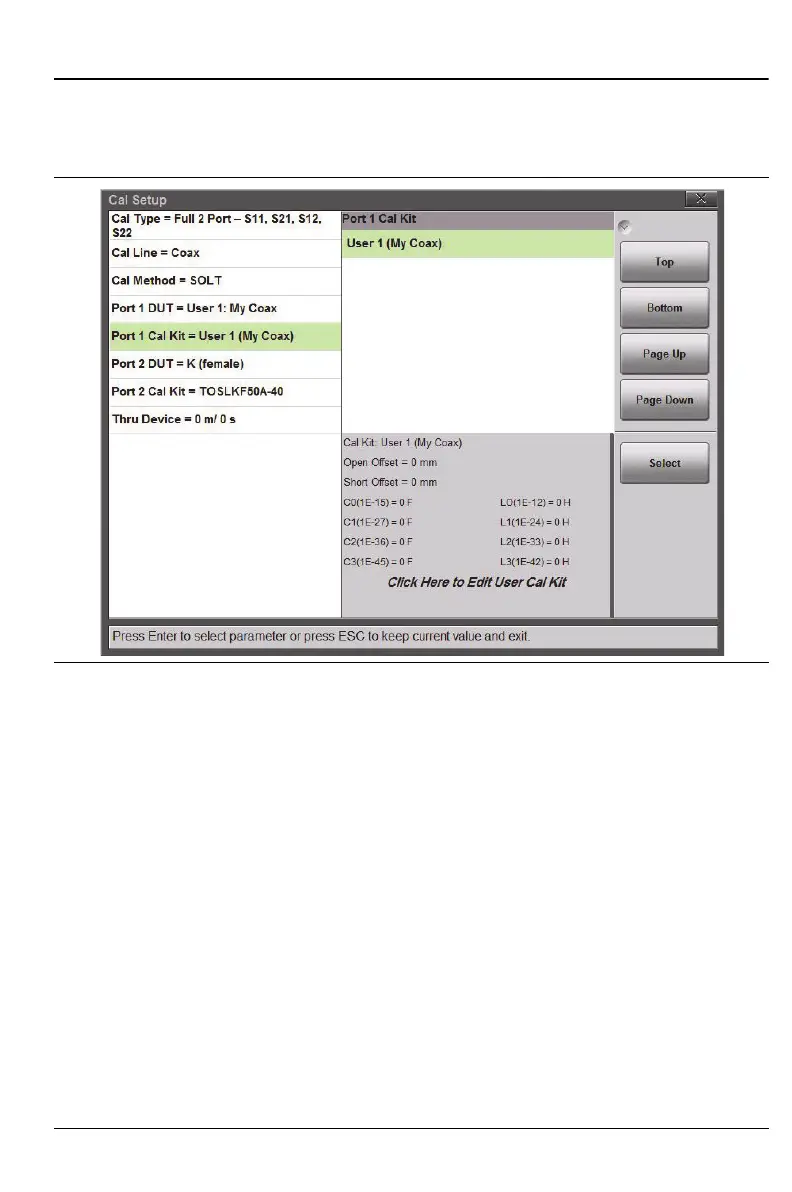

Figure 7-9 shows the selection window for the custom User cal kits
corresponding to the User 1 DUT coaxial connector. The corresponding cal kit
parameters are shown and can be edited as indicated on the screen.
Figure 7-9. Cal Setup, Port 1 DUT Coax Connector
