6. GUI orientation

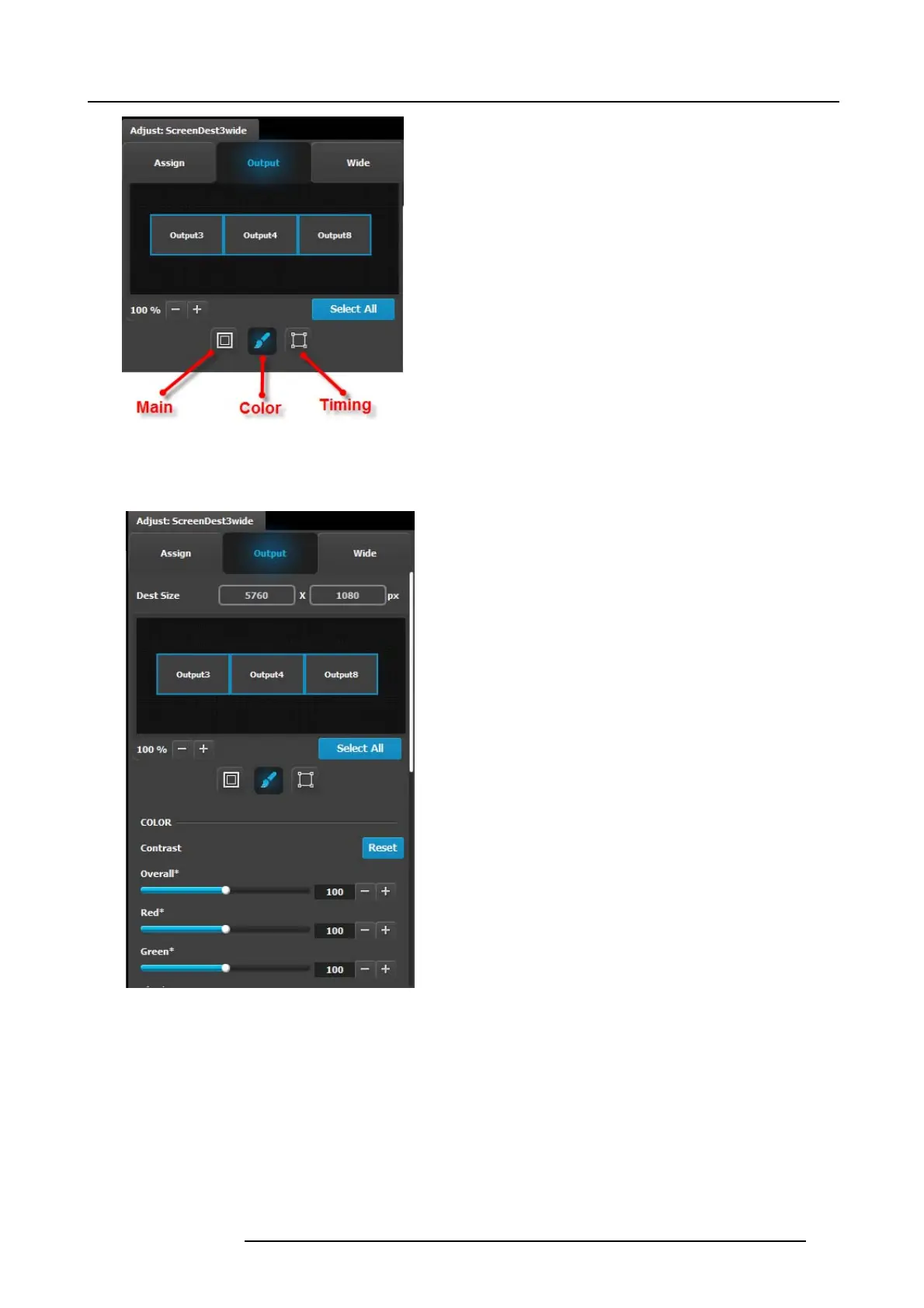

Image 6-31
Color adjustme nt submenu
The O utput E ffects Submenu adjusts color variable of the output image, such as contrast and brightness, saturation, hue and gamma
corrections.
• The RGB Contrast and Brightness settings are adjustable
within a r ange of 0% to 200%. The default setting for all
of these properties is 100% .
• Hue is adjustable within a range of -180 to +180 degrees.
The default setting is 0 degrees.
• Saturation is adjustable w ithin a range of 0% to 200%. The
default setting is 0%.
• Reset changes all values to their default settings.
• Gamma is adjustable within a range of 0 .3 to 3.28. The
default setting is 1.0.
Wide (screen) menu
In this m enu, the user ca
n turn on the p rojector a lignment test pattern, adjust the data-doubling and feathering parameters necessary
to se tup a wide blended screen. Thes e actions can be performed simultaneously on all sc reens by clicking the “Select All” button.
Actions between adjacent s creens can be performed by clicking the border between the adjacent screens.
Data-Doubling submenu
