10. Maintenance
10.23 Genlock Assembly
Image 10-56
Overview

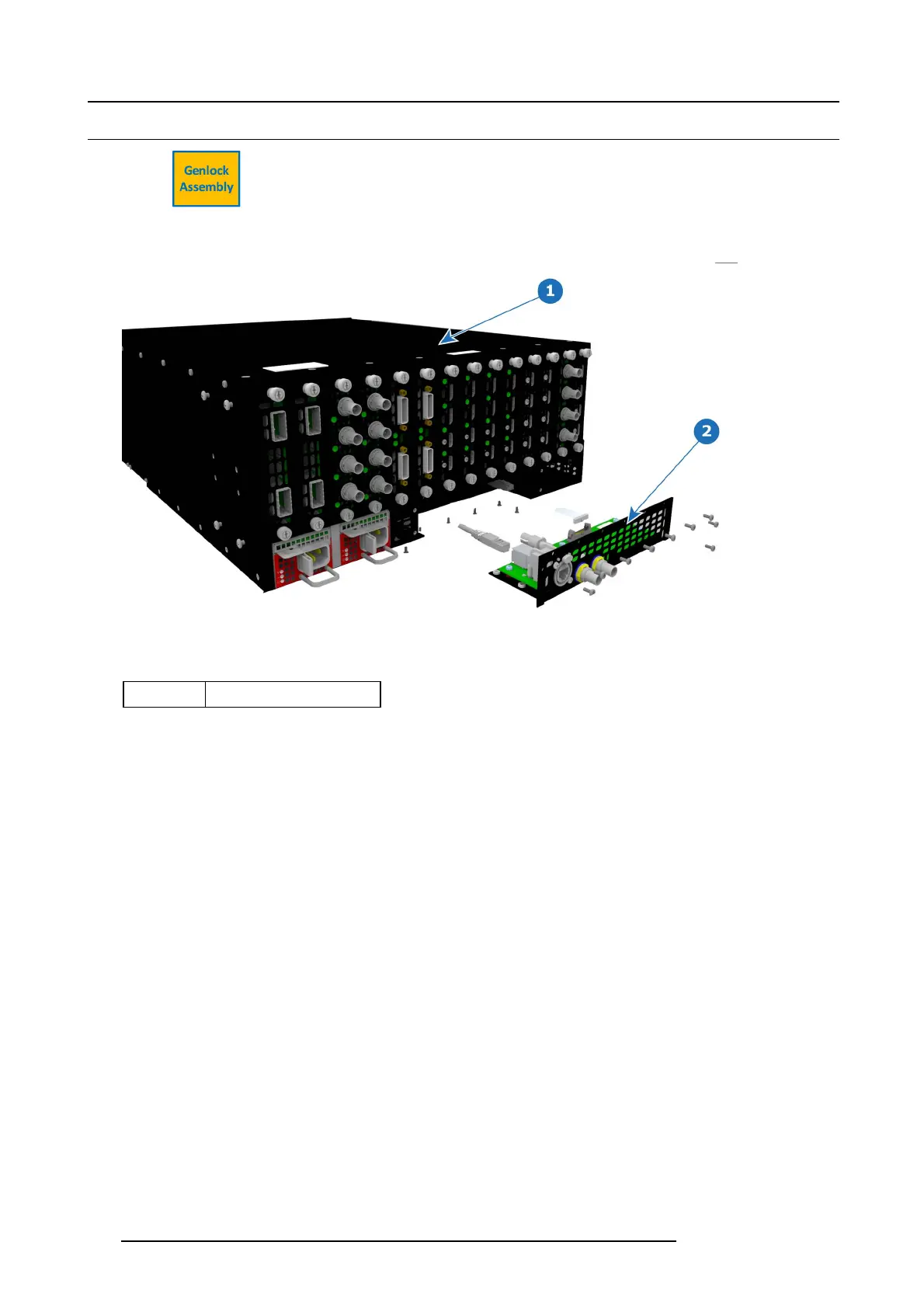

Image 10-57
1 Chassis
2 Genlock Assembly
Concerned parts
R9004748
Genlock A ssem bly
Necessary tools
1 x Phillips Screwdriver #2
How to remove the Genlock Assembly
1. Remove the seven flat head screws (4-40 X .25) that attach the Genlock assembly to the rear side of the chassis.
2. Remove the ten pan hea d screws (4-40 X .25) that attach the Genlock assem bly to the rear of the chassis.
