6. GUI orientation
6.22 Programming Menu > Adjustment area > Layer configuration
General
In the Layer m enu, users can manage the layer in the selected destination and update its attributes.
Layer configuration menu description
Layer configuration menu is accessed by clicking on the Lay er tab.
This menu provide:
• A list of the av ailable destinations and the layers assoc iated
with that destination.
• SwapZorderbutton that allows for layers that are in the
same Destination and of the same type to be swapped.
List of destination:
• Destinations: Provides list of all destinations that are a vailable in the Programming page. Each destination can be expanded
to reveal the Bac kground and the layers assigned to them. The “ eye” icon replaces or removes the layers from the Preview
destination. This button works in a toggle mode.
• BGNG and ScreenDest: Backgrounds and Destinations layers can be further expanded to rev eal the A and B s ources that
are used in the transitions.
• LEDs: Th e L ED pr ovide an indication of the “A” and “B” backgrounds or sources.

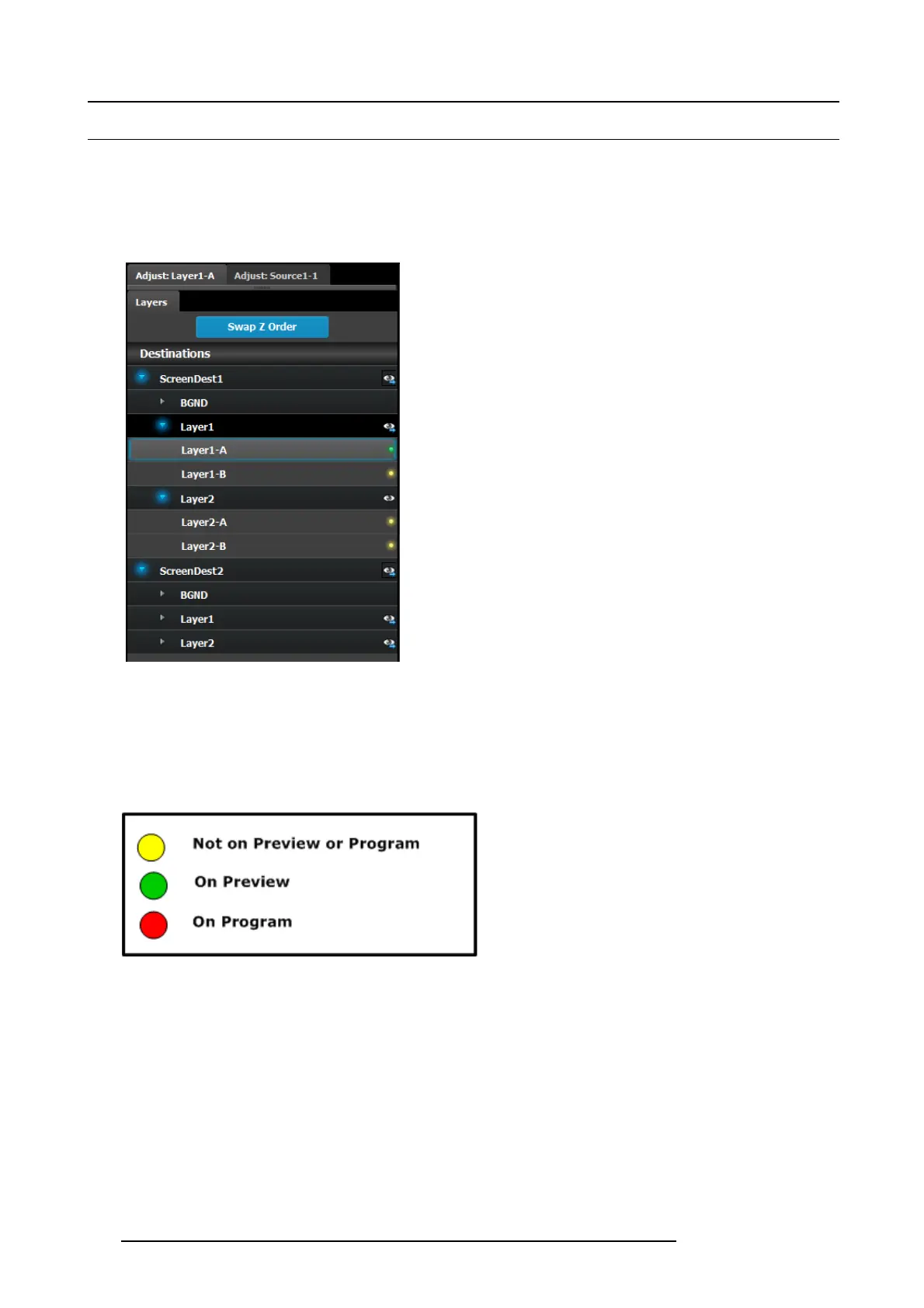

Image 6-54
Swap Z order rules
There are s everal rules that apply when changing Z or der:
1. Can only s wap Z order on layers in the same Destination.
2. Can only s wap Z o rder on layers that are of the sam e type (2K / DL / 4K ).
HowtoswapZorder
1. Click on Swap Z order button to enter in the S wap Z order mode.
2. Click on 1 layer at a time and mo ve it to a different location.
How to access the layer adjustments
Adjustments to laye rs are performed in the “Adjust” panel:
1. Select the layer from the list
120
R5905948 E2 12/12/2014
