4. Hardware orientation
4.3 6G SDI Input Card
General
This card provides 4 BNC connectors supporting S ingle Link, Dual Link and Quad Link signals, in SD, HD, 3G-SDI and 6G-SDI Ultra
HD (UHD) formats.
Currently the supported formats are up-to 3G SDI. 6G SDI format w ill be provided with a future software re-
lease!

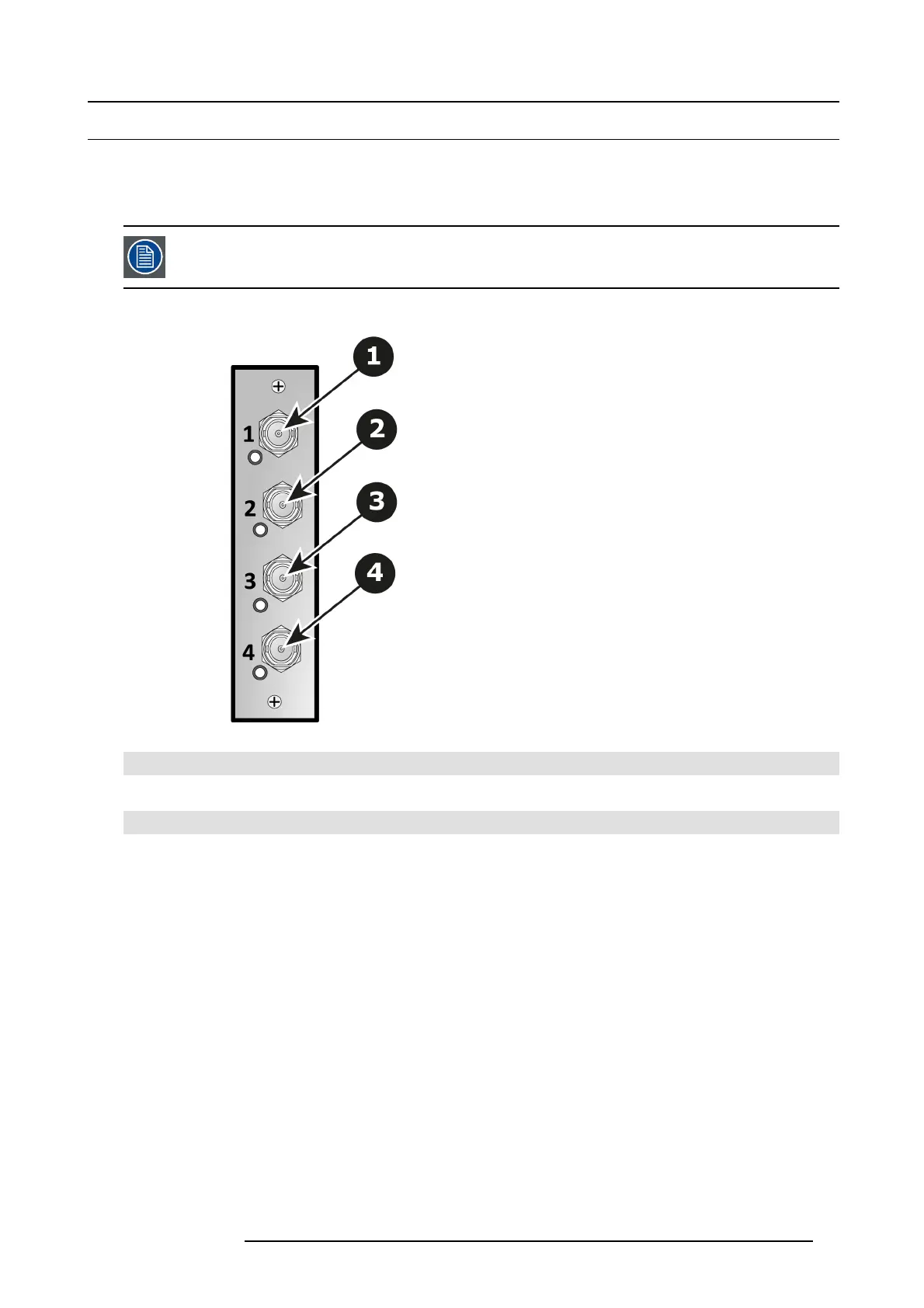

The gure below illustrates the 6G SDI Input card’s rear panel connectors:
Image 4-5
6G SDI Input Card Rear Panel
1 BNC connector SDI 1 with an LED that turns on gr een when a valid sync has been detected
2 BNC connector SDI 2 with an LED that turns on gr een when a valid sync has been detected
3
BNC connector SD I 3 w ith an LED that turns
on green when a v alid sync has been detected
4
BNC connector SD I 4 w ith an LED that turn
s on green when a v alid sync has been detected
Features
Default slot(s): 3, 4
Process u p to 4 signals independently
Automatic SD , HD, 3G and 6G * Switching
Quad Link HD-S DI Input
Dual Link 3G -SDI Input
Single Link 6G -SD I Input*
Each input c hannel includes an LED that turns green when a valid sync is detected.
(*) Via future rm ware upgrade. This feature w ill be im plemented in a future release!
R5905948 E2 12/12/2014
35
