Barco E2 - VFD Display Filter

10. Maintenance
10.16 VFD Display Filter

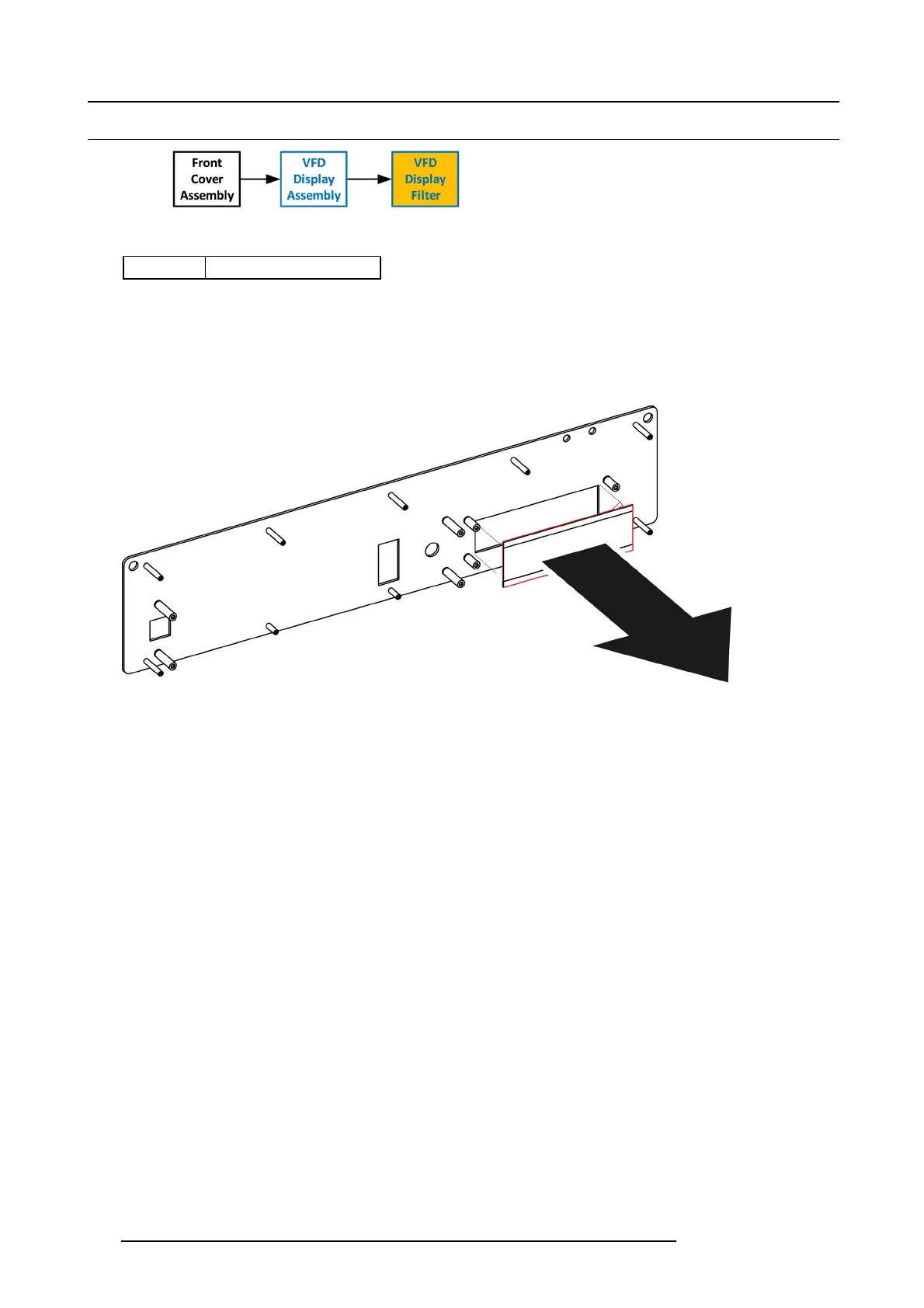

Image 10-38
Concerned parts
R767246K VFD Display Filter
Necessary tools
None.
How to remove the VFD Display Filter
1. From the front of the unit push hard on the filter until it detaches from the unit.
Image 10-39
2. Use alcohol to clean the adhesive residue that held the fi lter to the metal plate.
How to install the VFD Display Fil ter
1. Remove the protective film from the front of the filter and release the liner from the tape.
2. Press firmly the filter into the metal plate.
