10. Maintenance

10.10 1RU Fan Tray

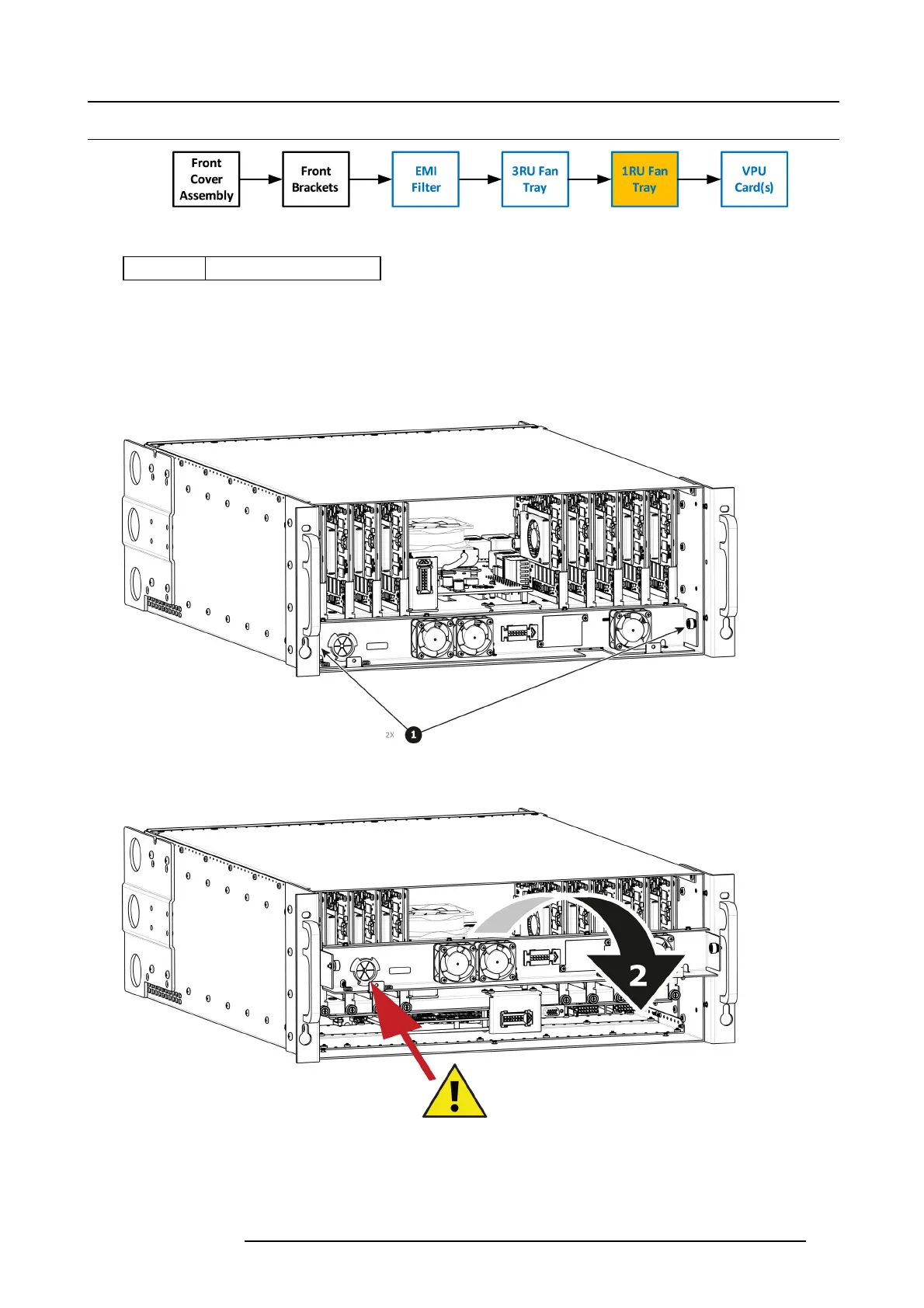

Image 10-20

Concerned parts

R767270K 1RU Fan Tr ay

Necessary tools

1 x Phillips Screwdriver #2 ( optional).

How to remove the 1RU Fan Tray

1. Loosen and unscrew the 2 thumbscrews holding the 1RU fan tray to the chassis.

Note: You m ay need a screwdriver if the thumbsc rews are very tight.

Image 10-21

2. Pull the tray out.

Note: You might need to tilt the tray and maneuve r it to go around the dimples located on the side of the chassis.

Image 10-22

Caution: B efore you completely r emove it f rom the unit carefully pus h the USB and Front panel cables through the grom met

located on the left hand side.

R5905948 E2 12/12/2014

227
