10. Maintenance
10.36 Motherboard Fan

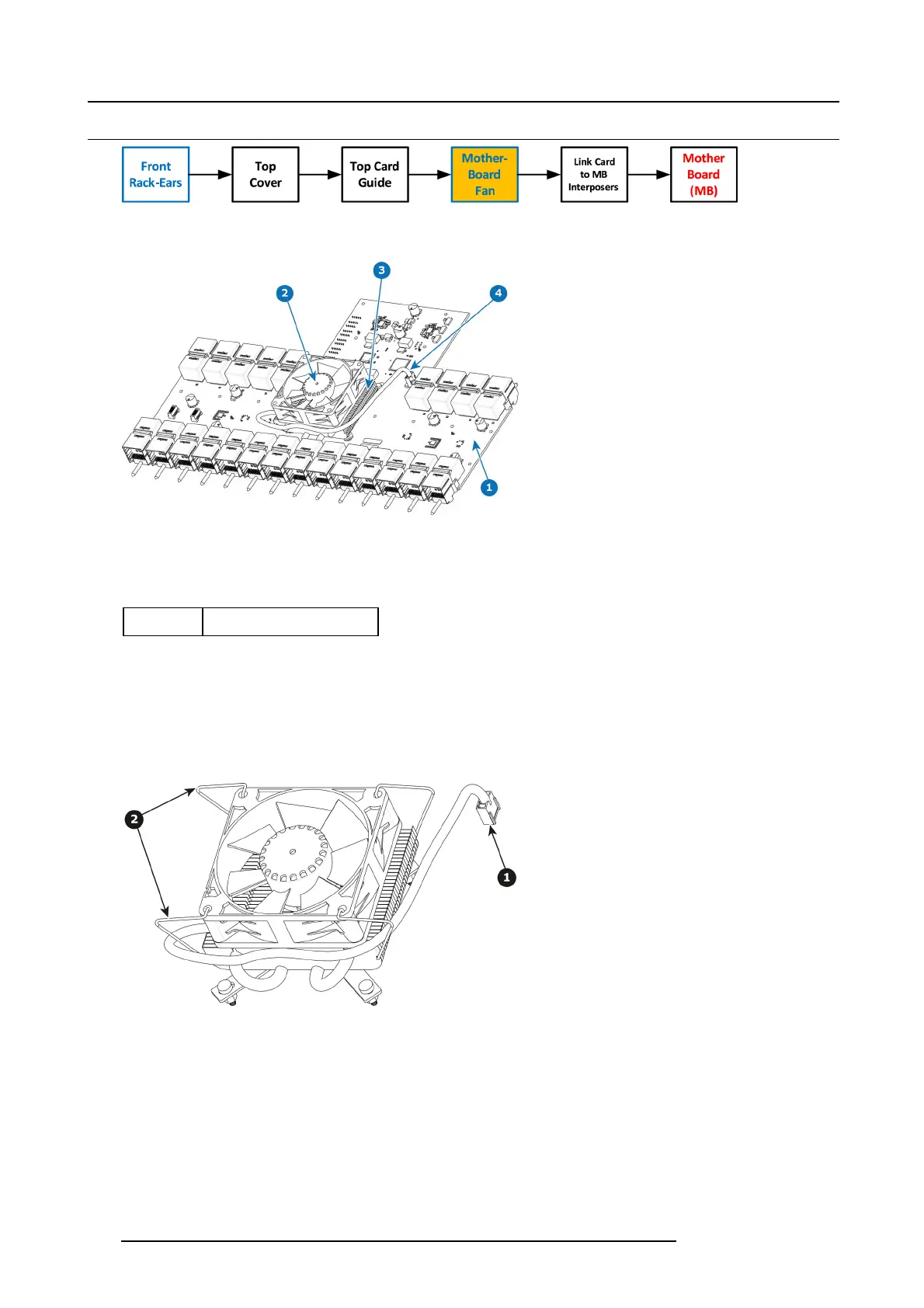

Image 10-95
Overview
Image 10-96
1 Motherboard
2Fan
3 Heatsink
4 Fan power cable
Concerned parts
R767265K
Motherboard Heatsink & F an
kit
Necessary tools
1 x Phillips Screwdriver #2
How to remove Motherboard Fan
1. Remove the c able that provides power to th
e heatsink fan.
2. Lift the two handles to r elease the fan from the heatsink.
Image 10-97
3. Lift the fan away from the he
atsink.
How to install M otherboar
dFan
1. Rem ove the fan from the Heatsink/Fan s pare k it.
2. Using the c lips install the fan on the top of the heatsink that is on the motherboard.
3. Connec t the fan power cable to header xxx located on the motherboard.
