10. Maintenance

10.32 Rear Rack Ears

Concerned parts

R767273K

Connector protector

Necessary tools

1 x Phillips Screwdriver #2

How to remove Rear Rack-Ears

1. Remove the eight pan head screws (8-32x.31), four from each side, to detach the rear rack ears and connector protectors from

the unit.

Note: You don’t need to remove the rear rack ears to acc ess any other part of the unit.

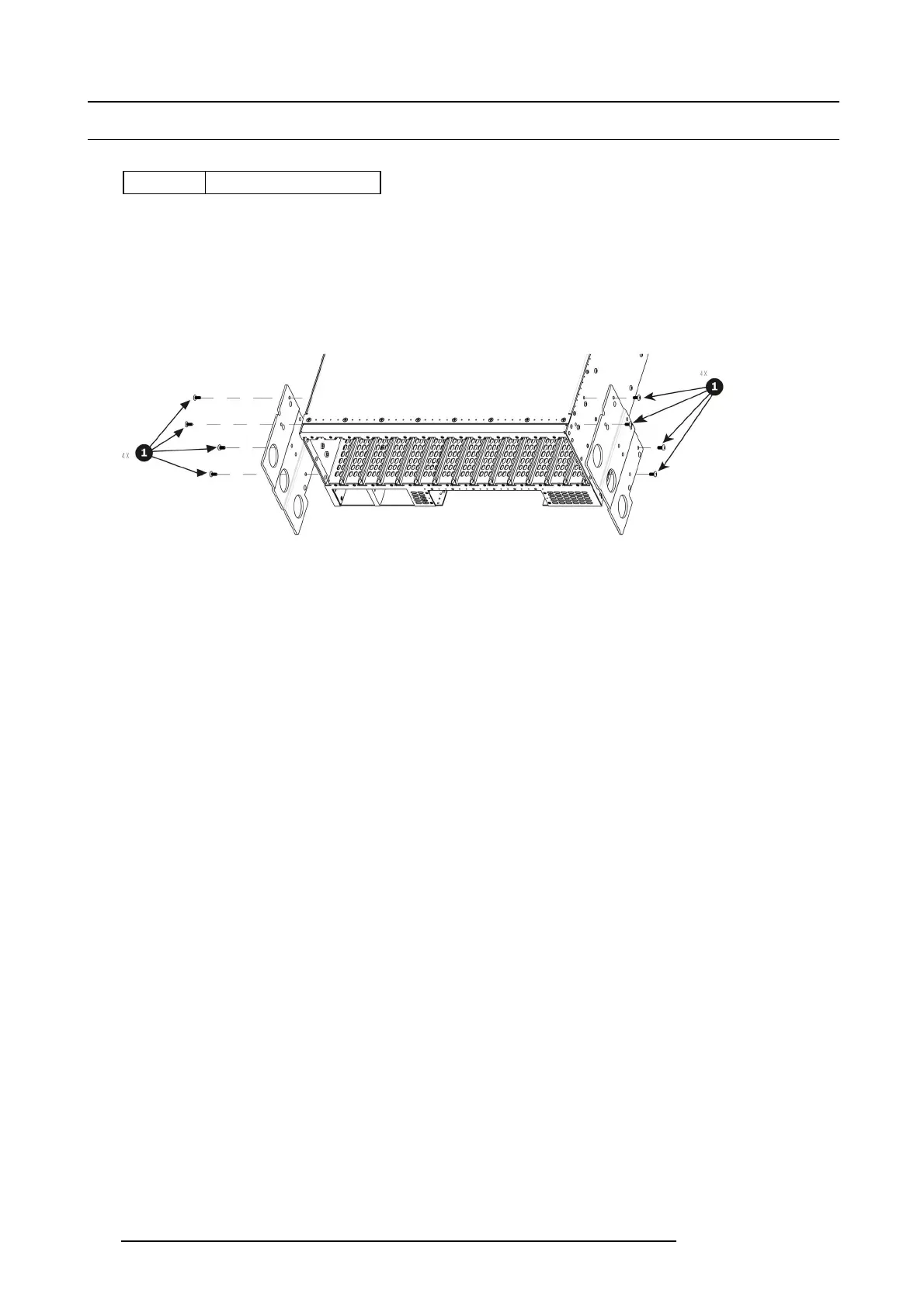

Image 10-88

How to install Rear Rac k-Ears

To install the Rear Rack-Ears follow the sam e procedure in the revers

e order.

272

R5905948 E2 12/12/2014
