10. Maintenance

10.34 Top Co ver

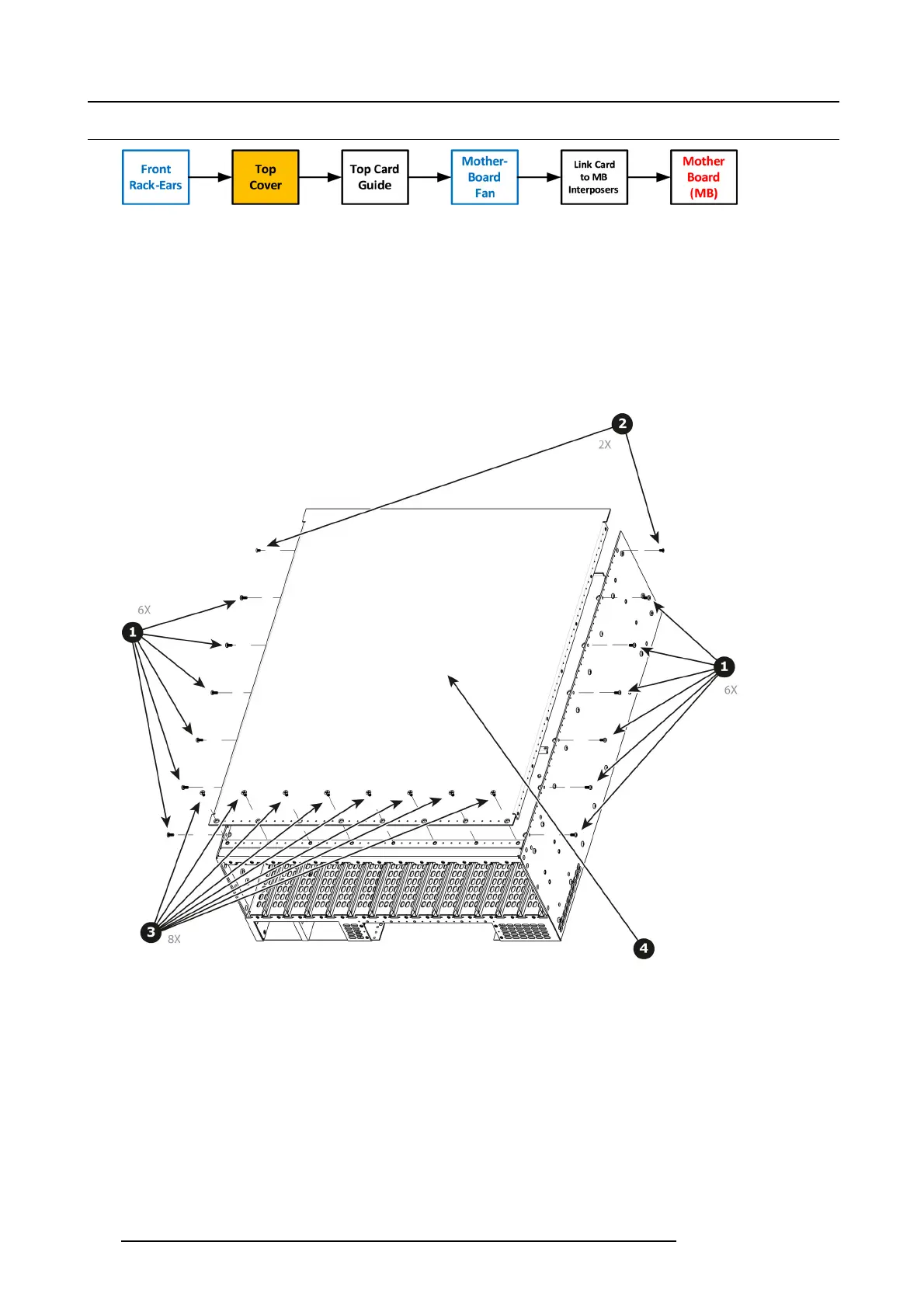

Image 10-91

Necessary tools

1 x Phillips Screwdriver #2

How to remove Top Cover

1. Remove the 12 screws from the two sides (6 in each side, 4-40x0.25) that are located towards t he top side of the unit.

2. Remove the two (2) screws (4-40x0.25) located closer to the rear end of the unit. These are ﬂ at head screws.

3. Remove the 8 screws (6-32x0.25) located on the top at the back of the chassis.

4. Remove the cover by gently pulling it a w ay f rom the E2

Image 10-92

How to install Top Cover

To install the Top Cover follow the sam e procedure in the reverse order.

274

R5905948 E2 12/12/2014
