5. Front Panel Menu orientation
5.2 E2 Fron t Panel menu tree
About this s ection

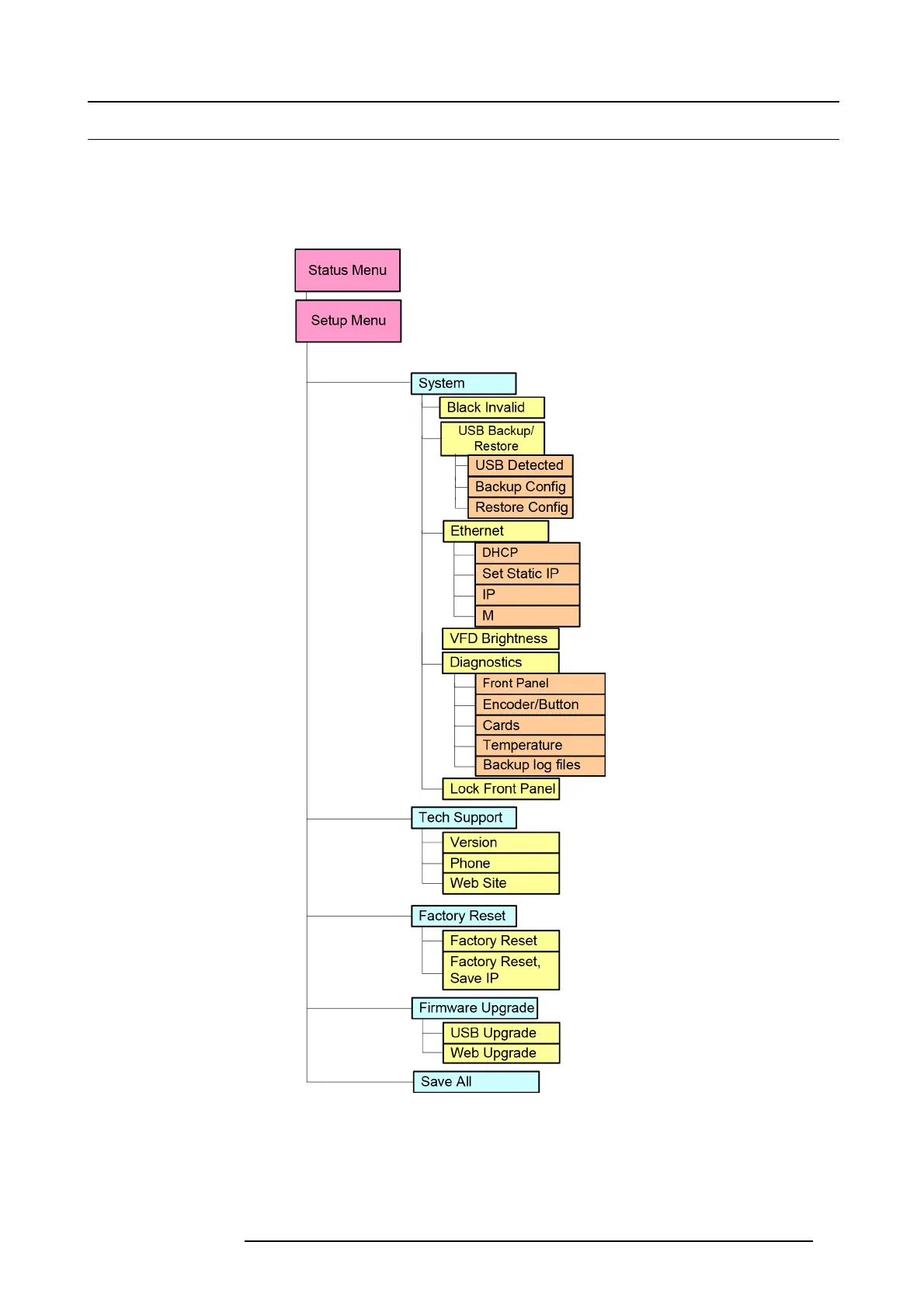

The diagram below illustrates the E2 Front Panel menu tree. Please use this diagram for reference as you learn how to operate the
system .
Menu tree
Image 5-2
R5905948 E2 12/12/2014 47
