10. Maintenance

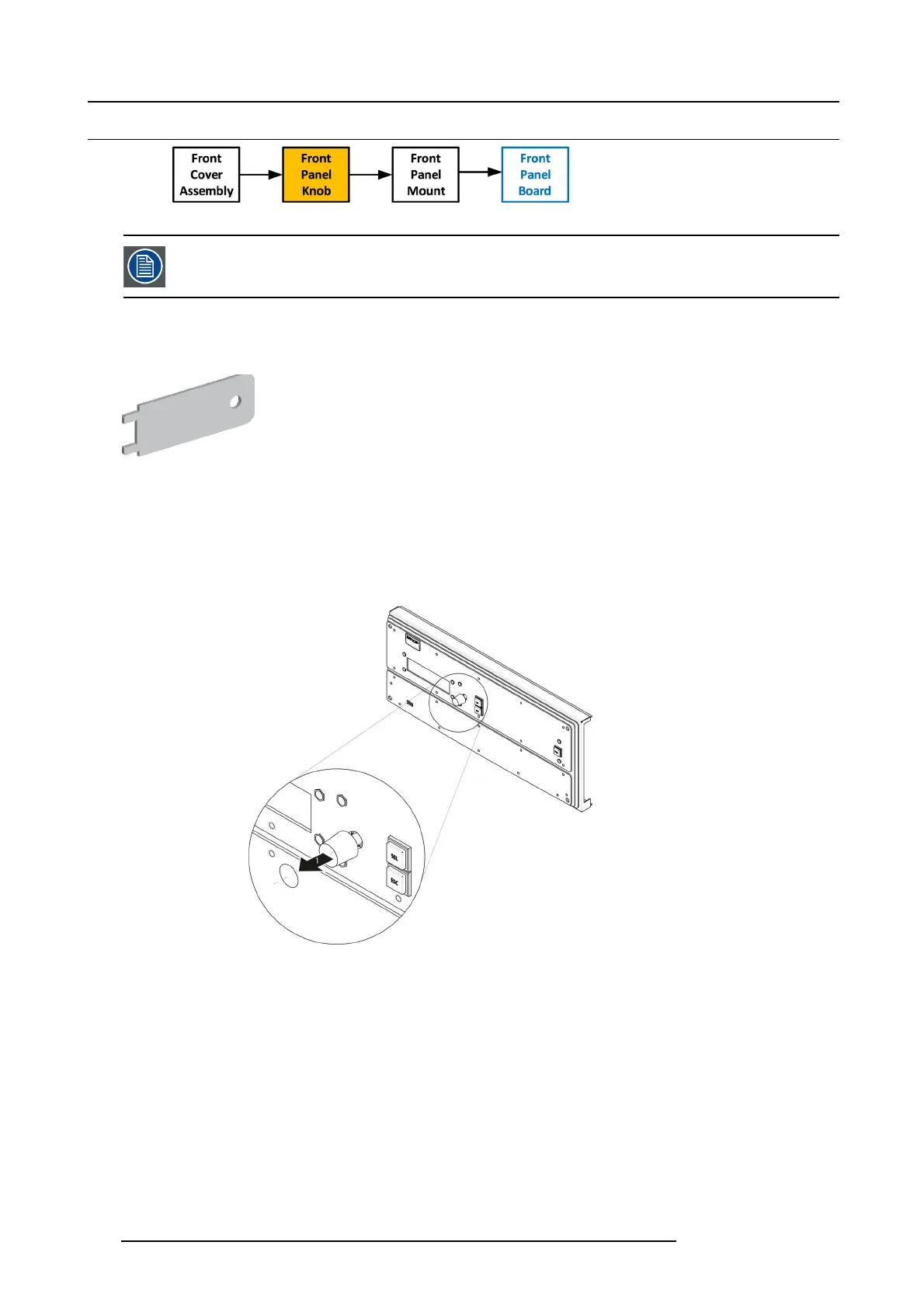

10.12 Front Panel Knob
Image 10-27
Before yo u p roceed removing the Front pan el knob you need to remove the Front Cover Assem bly as outlined
in the related procedure.
Necessary tools
• Knob r emoval tool provided by Barco
Image 10-28
• Flat head screwdriver or a tool with a sharp edge
How to remove the Front Panel Knob
1. Remove the knob cover with a flat screw driv er or a sharp object to expos e the inside of the knob.
Image 10-29
2. Use the knob remov al tool provided by Barco to take out the knob. Align the notches on the tool with the grooves in the knob as
indicated below.
Note: If the tool is not available use fine point needle n o se pliers to squee ze at knob between the two grooves while pulling it
out.
230
R5905948 E2 12/12/2014
