10. Maintenance

10.14 Front Panel Board

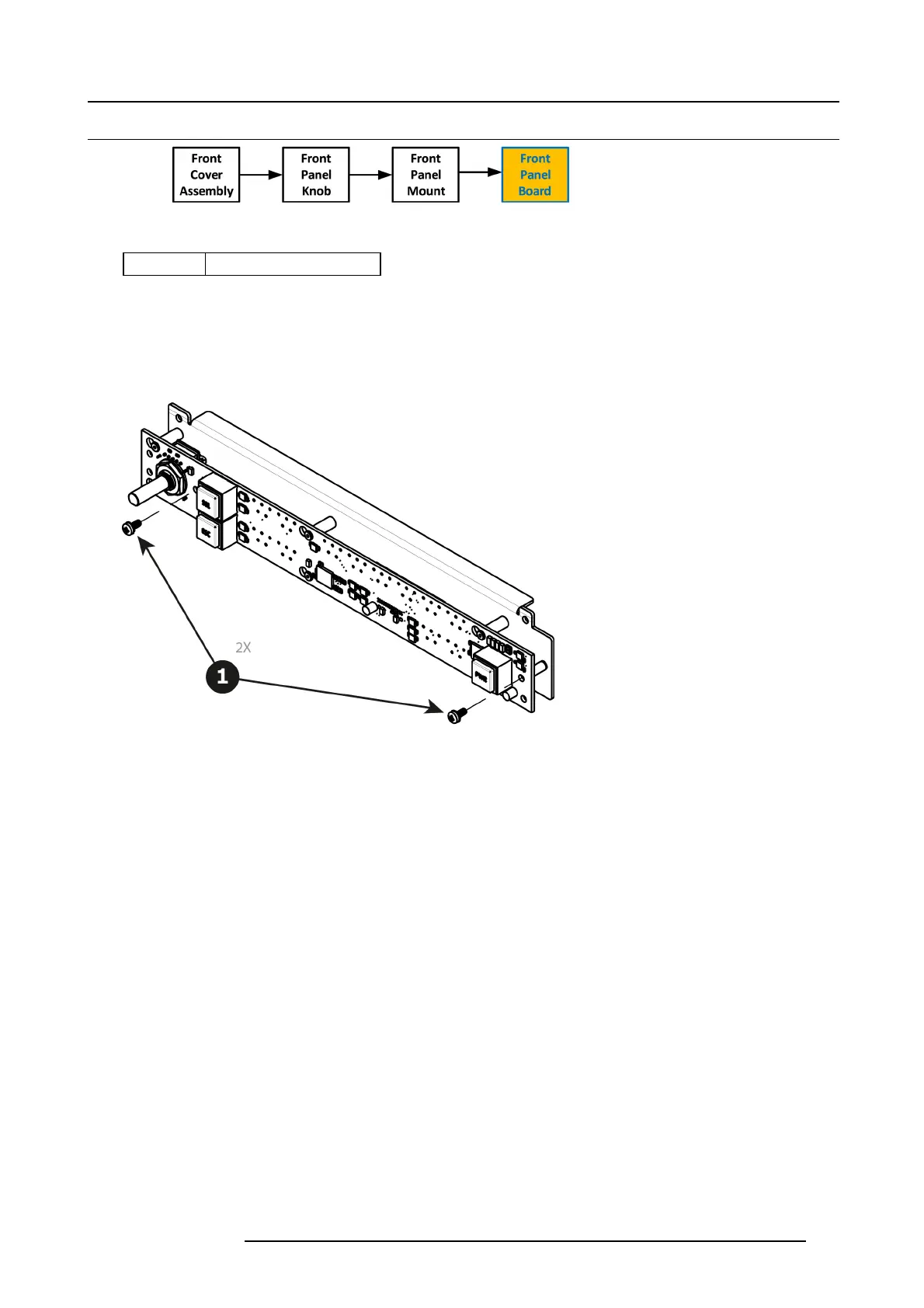

Image 10-33

Concerned parts

R767260K Front Panel Board

Necessary tools

1 x Phillips Screwdriver #2

How to remove the Front Panel Board

1. Remove the two screws ( 4-40X.25) that secure the PCB to the front mount.

Image 10-34

2. Move the PCB to the right and then out to release it from the mount.

R5905948 E2 12/12/2014

233
