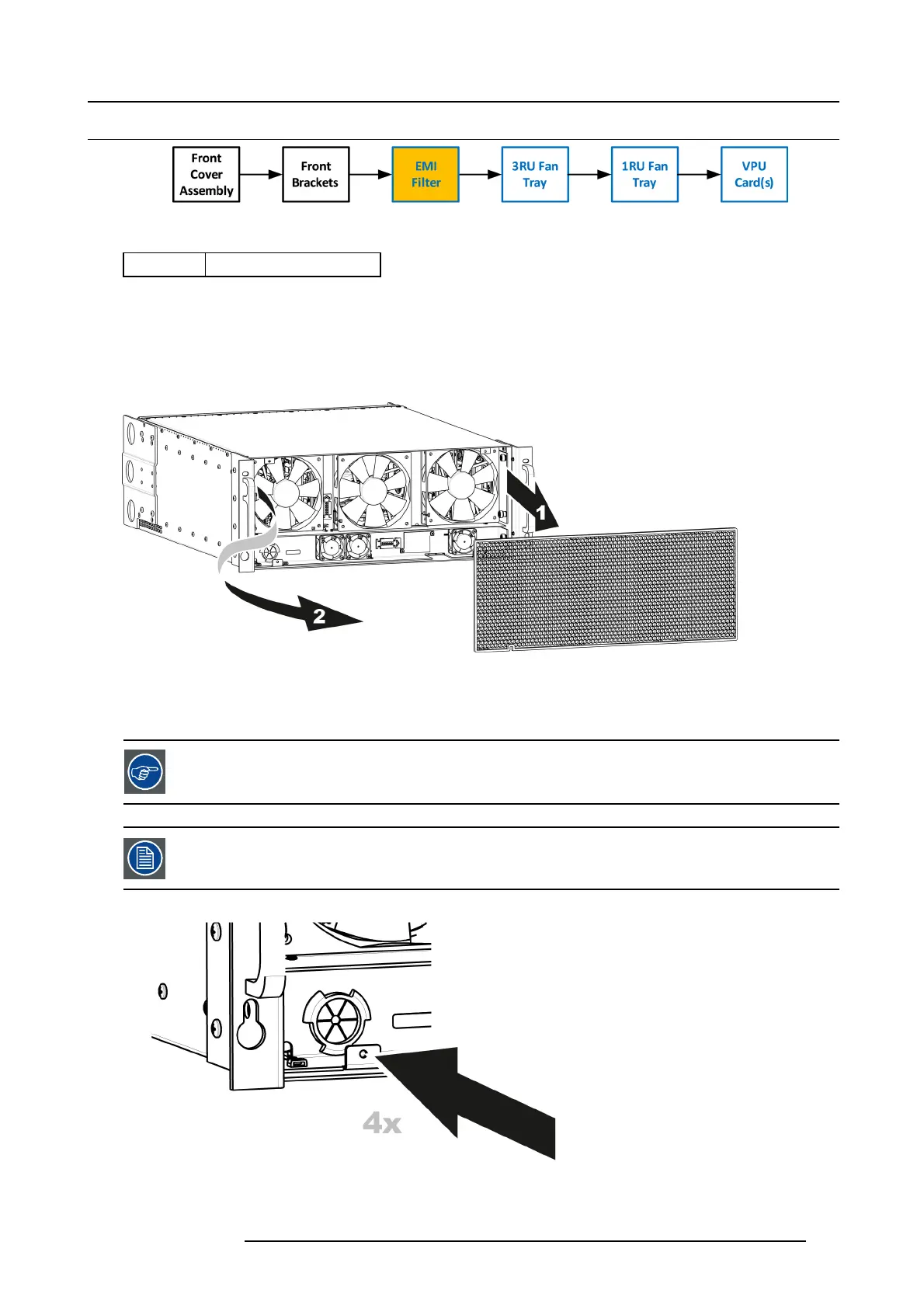

10. Maintenance
10.8 EMI Filter
Image 10-15
Concerned parts
R767272K EMI Filter
Necessary tools
None.
How to remove the EMI Filter
1. Remove the EMI lter by rst pulling gently the right side out and then untucking the left side from behind the key features.
Image 10-16
How t o install the EMI Filter
To install the EMI F ilter follow the same procedure in the reverse order.
Begin by tucking in the left side behind the key features. To get the right hand side in position, use ngers in
the center to pull the lter forward, w h ile p ushing the right hand side behind the key feature in the rack ears.
Then push the entire lter into position.
The lter will push against the four at sections on the front of the fan trays.
Image 10-17
R5905948 E2 12/12/2014 225
